Overview

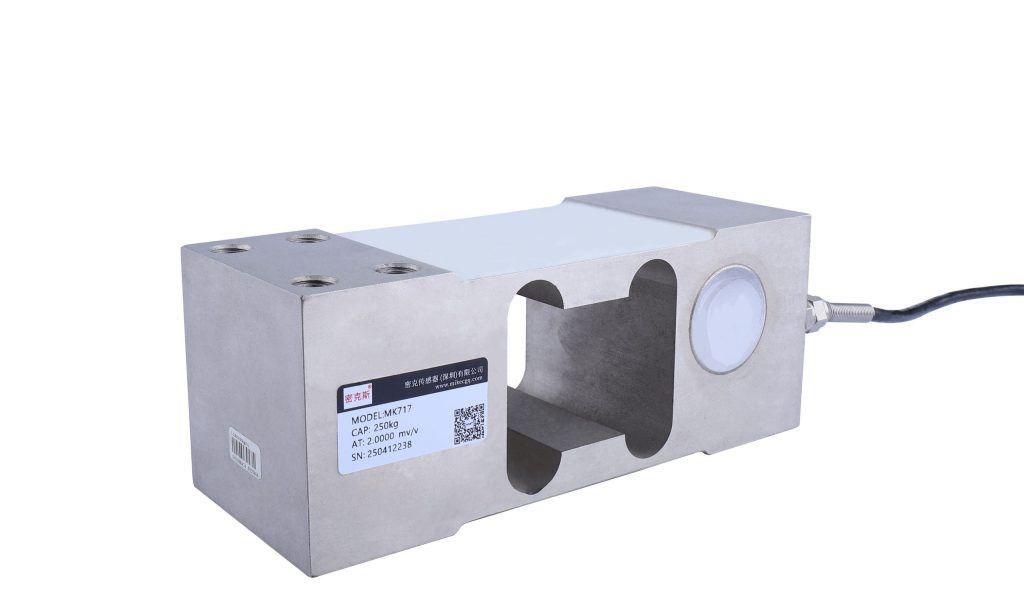

The MK717 parallel-beam load cell is a compact, industrial-grade sensing element built to hold its accuracy when loads are not perfectly centred. Rugged construction and measurement stability under side forces make it well suited to continuous automatic weighing and control equipment operating in busy plants.
Key Features
- High accuracy, industrial-grade durability
- Strong off-centre-load resistance
- Compact and measurement-stable
- High accuracy (≤0.03%F.S) for precise measurement
- Alloy steel elastic element for durability and corrosion resistance
- Standard output 1.0mV/V±0.15%, compatible with common indicators
Applications
Commonly specified for batching scales, quantitative packaging scales, belt-conveyor and hopper weighing, and sortation systems.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 500N(50kg) 1kN(100kg) 1.5kN(150kg) 2kN(200kg) 3kN(300kg) 5kN(500kg) 10kN(1t) 20kN(2t) | Comprehensive accuracy | ≤0.03%F.S |
| Temp. compensated range | -10°C~40°C | Output sensitivity | 1.0mV/V±0.15% |
| Operating temp. range | -20°C~60°C | Nonlinearity | ±0.03%F.S |
| Temp. Effect on Output | <0.05%F.S/10°C | Hysteresis | ±0.03%F.S |
| Temp. Effect on Zero | <0.1%F.S/10°C | Repeatability | ±0.02%F.S |
| Input impedance | 400±20Ω | Creep (30 min) | ±0.02%F.S/30min |
| Output impedance | 352±5Ω | Zero balance | ≤±1%F.S |
| Insulation resistance | ≥5000MΩ | Excitation voltage | 5-12V DC |
| Material | Alloy steel | Safe overload | 120%F.S |
| Recommended surface size | 150x150mm | Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) |

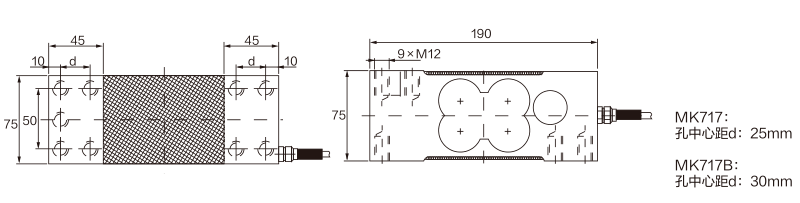

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK717?
Commonly specified for batching scales, quantitative packaging scales, belt-conveyor and hopper weighing, and sortation systems.
Which indicator, transmitter or system works with the MK717?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
