Overview

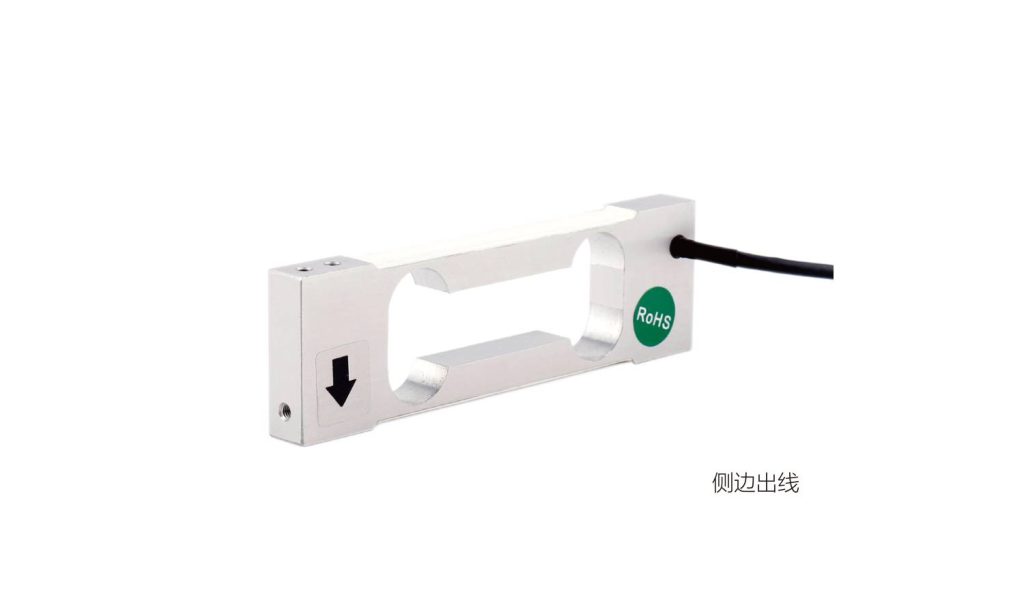

The MK716 parallel-beam load cell is dimensionally compact, which is what allows precise force sensing inside small scale platforms and packaging heads. Alongside its modest size it delivers industrial accuracy, good eccentric-load behaviour and the steadiness required for repetitive automated weighing cycles.
Key Features
- High accuracy (≤0.03%F.S) for precise measurement
- Aluminum alloy elastic element for durability and corrosion resistance
- Standard output 0.8mV/V±15%, compatible with common indicators
- Compact design for straightforward integration
Applications
Found in quantitative packaging and batching scales, small platform and bench weighing, hopper and belt scales, and sortation machinery.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 0.3kg 0.6kg 1kg 2kg 3kg | Comprehensive accuracy | ≤0.03%F.S |
| Temp. compensated range | -10°C~40°C | Output sensitivity | 0.8mV/V±15% |
| Operating temp. range | -20°C~60°C | Nonlinearity | ±0.03%F.S |
| Temp. Effect on Output | <0.03%F.S/10°C | Hysteresis | ±0.03%F.S |
| Temp. Effect on Zero | <0.02%F.S/10°C | Repeatability | ±0.02%F.S |
| Input impedance | 410±15Ω | Creep (30 min) | ±0.02%F.S/30min |
| Output impedance | 350±5Ω | Zero balance | ≤±1%F.S |
| Insulation resistance | ≥5000MΩ | Excitation voltage | 5-12V DC |
| Material | Aluminum alloy | Safe overload | 120%F.S |
| Recommended surface size | 200x200mm | Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) |

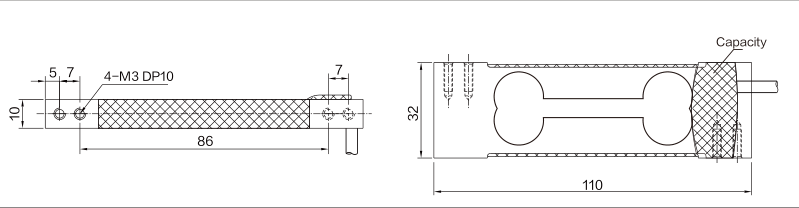

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK716?
Found in quantitative packaging and batching scales, small platform and bench weighing, hopper and belt scales, and sortation machinery.
Which indicator, transmitter or system works with the MK716?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
