Overview

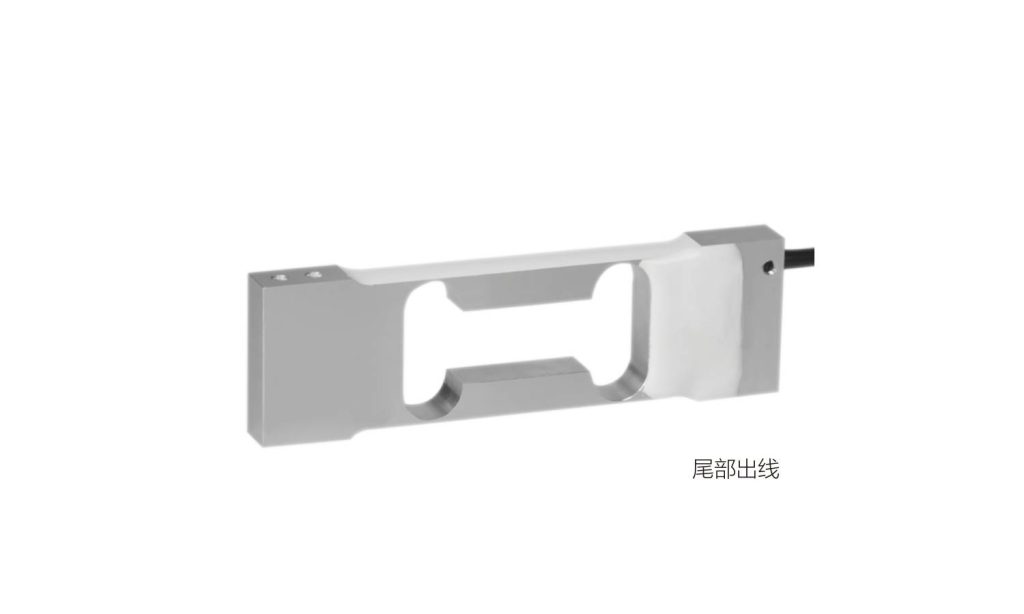

Compact, precise and hard-wearing, the MK716-T1 is a parallel-beam load cell designed to hold accuracy when loads arrive off-centre. Its stable measurement behaviour suits weighing tasks embedded in automated production and process control, where space inside the mechanism is limited.
Key Features
- Parallel-beam element rejects off-centre loads
- Compact size for tight scale platforms
- Stable output for automated control
- Industrial-grade durability
- High accuracy (–) for precise measurement
- Aluminum alloy elastic element for durability and corrosion resistance
Applications
Industrial batching, quantitative packaging, belt and hopper scales, plus automated sortation installations.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 0.3kg 0.6kg 1kg 1.5kg 3kg | Comprehensive accuracy | – |
| Temp. compensated range | -10°C~40°C | Rated output | 1.0±10%mV/V |
| Operating temp. range | -20°C~60°C | Nonlinearity | ±0.02%F.S. |
| Temp. Effect on Output | ±0.03%F.S./10°C | Hysteresis | ±0.015%F.S. |
| Temp. Effect on Zero | ±0.05%F.S./10°C | Repeatability | ±0.015%F.S. |
| Input impedance | 405±1Ω | Creep (30 min) | ±0.015%F.S./30min |
| Output impedance | 350±3Ω | Zero balance | ≤±5%F.S. |
| Insulation resistance | ≥2000MΩ / 50VDC | Excitation voltage | 5-12V DC |
| Material | Aluminum alloy | Safe overload | 120%F.S. |
| Protection class | IP65 | Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) |

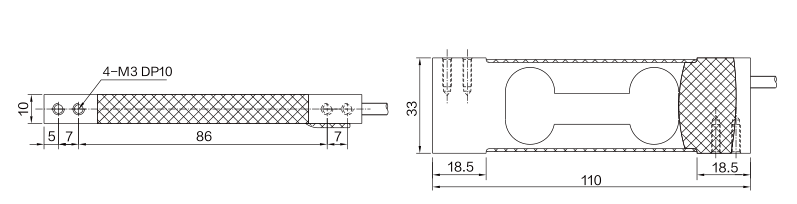

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK716-T1?
Industrial batching, quantitative packaging, belt and hopper scales, plus automated sortation installations.
Which indicator, transmitter or system works with the MK716-T1?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
