Overview

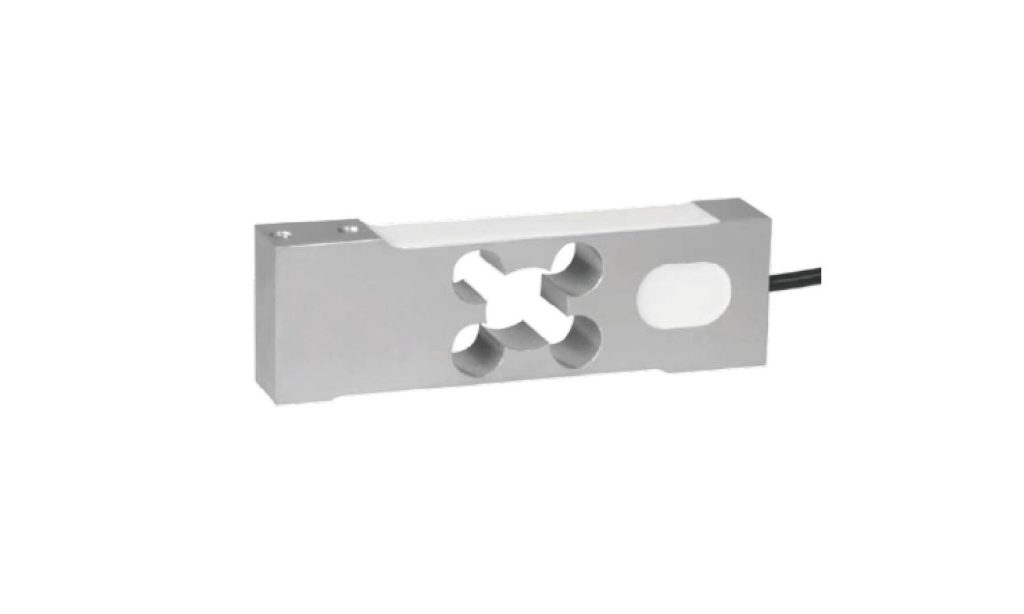

Designed for tight, reliable weighing, the MK715 parallel-beam load cell delivers accuracy and stability while resisting off-centre and side forces. Its rugged, compact body supports continuous automated control in industrial settings.
Key Features
- High accuracy (–) for precise measurement
- Aluminum alloy elastic element for durability and corrosion resistance
- Sealed to IP65 for reliable operation in harsh environments
- Standard output 2.0±5%mV/V, compatible with common indicators
- Compact design for straightforward integration
Applications
Found on batching and packaging scales, belt and hopper weighers, and automated sortation and handling systems.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 30kg 50kg 100kg 200kg | Comprehensive accuracy | – |
| Temp. compensated range | -10°C~40°C | Output sensitivity | 2.0±5%mV/V |
| Operating temp. range | -20°C~60°C | Nonlinearity | ±0.015%F.S. |
| Temp. Effect on Output | ±0.02%F.S./10°C | Hysteresis | ±0.01%F.S. |
| Temp. Effect on Zero | ±0.02%F.S./10°C | Repeatability | ±0.01%F.S. |
| Input impedance | 405±10Ω | Creep (30 min) | ±0.02%F.S./30min |
| Output impedance | 350±3Ω | Zero balance | ≤±5%F.S. |
| Insulation resistance | ≥5000MΩ / 50VDC | Excitation voltage | 5-12V DC |
| Material | Aluminum alloy | Safe overload | 120%F.S. |
| Protection class | IP65 | Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) |

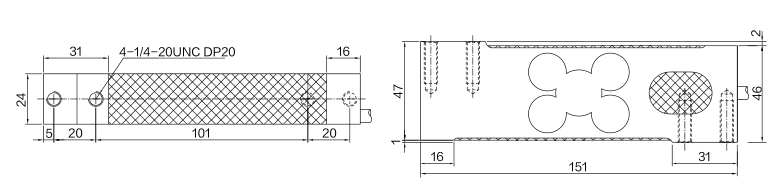

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK715?
Found on batching and packaging scales, belt and hopper weighers, and automated sortation and handling systems.
Which indicator, transmitter or system works with the MK715?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
