Overview

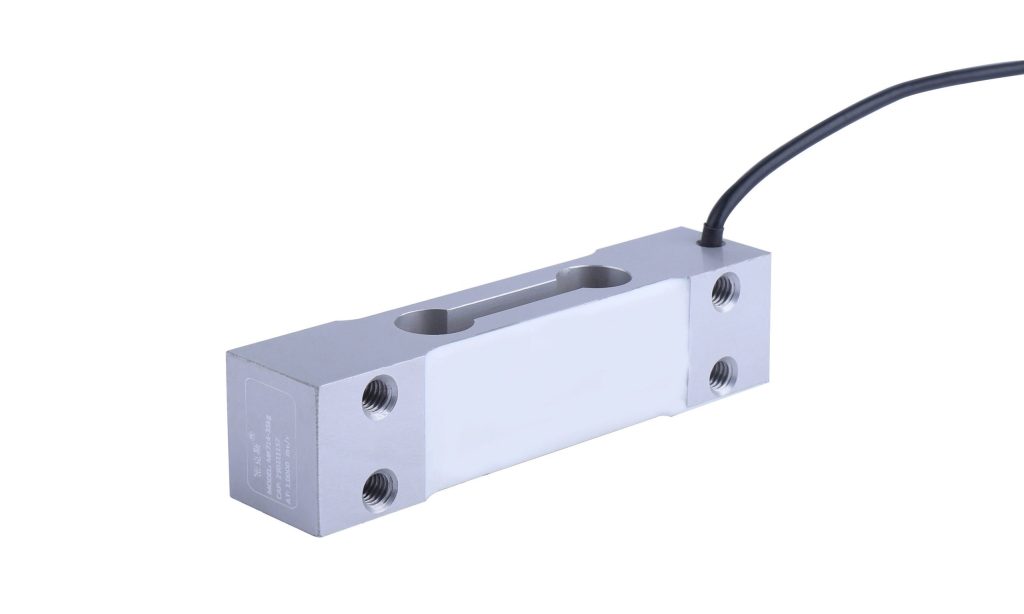

The MK714 parallel-beam load cell pairs compact size with industrial-grade ruggedness, holding accuracy even when loads sit off-centre. Its stable, repeatable signal makes it a practical choice for automated weighing and precision process control, and the tight package simplifies integration into space-limited platforms.
Key Features
- Rejects off-centre loads for stable weighing
- Compact, durable parallel-beam body
- Repeatable output for automated control
- High accuracy (≤±0.03%F.S) for precise measurement
- Aluminum alloy elastic element for durability and corrosion resistance
- Standard output 2.0±10%mV/V, compatible with common indicators
Applications
Used in industrial batching, quantitative packaging, electronic belt, and hopper scales, and in automated sorting systems.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 3kg 5kg 8kg 10kg 15kg 20kg 30kg 35kg 40kg | Comprehensive accuracy | ≤±0.03%F.S |
| Temp. compensated range | -10°C~40°C | Output sensitivity | 2.0±10%mV/V |
| Operating temp. range | -20°C~60°C | Nonlinearity | ±0.03%F.S |
| Temp. Effect on Output | <0.03%F.S/10°C | Hysteresis | ±0.03%F.S |
| Temp. Effect on Zero | <0.02%F.S/10°C | Repeatability | ±0.02%F.S |
| Input impedance | 410±15Ω | Creep (30 min) | ±0.02%F.S/30min |
| Output impedance | 350±5Ω | Zero balance | ≤±2%F.S |
| Insulation resistance | ≥5000MΩ | Excitation voltage | 5-12V DC |
| Material | Aluminum alloy | Safe overload | 120%F.S |
| Recommended surface size | 300x300mm | Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) |

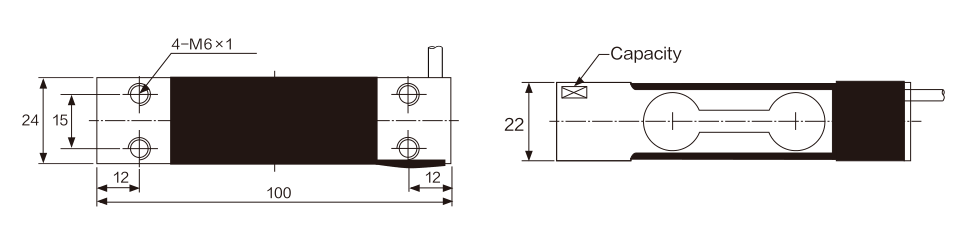

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK714?
Used in industrial batching, quantitative packaging, electronic belt, and hopper scales, and in automated sorting systems.
Which indicator, transmitter or system works with the MK714?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
