Overview

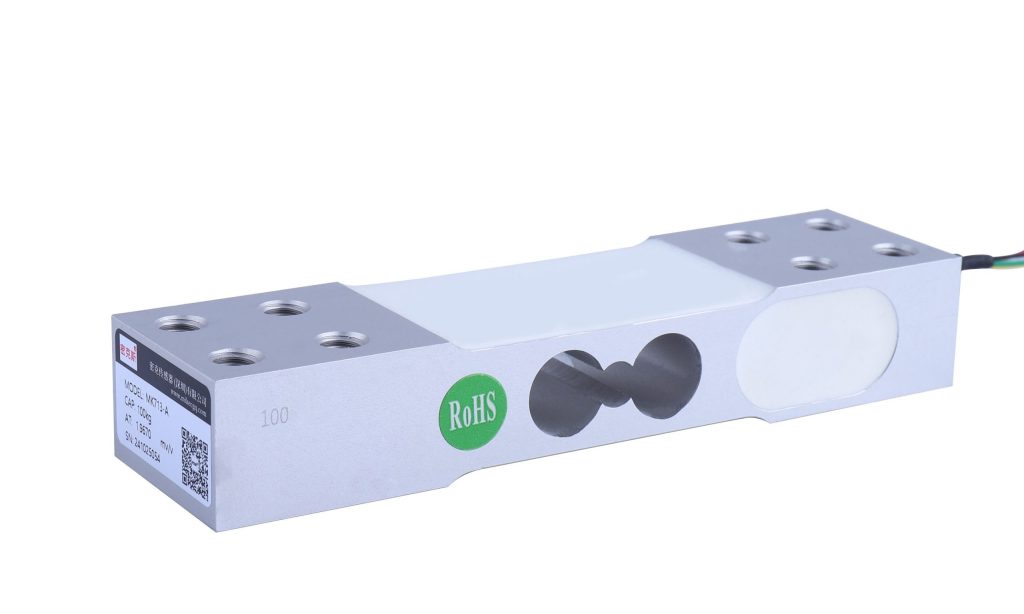

Engineered as the precision core of automated weighing systems, the MK713-A parallel-beam load cell pairs high accuracy with strong off-centre-load rejection and lasting industrial durability. Its compact, stable design simplifies integration into scale platforms where space and reliability both matter.
Key Features
- High accuracy (≤±0.03%F.S) for precise measurement
- Aluminum alloy elastic element for durability and corrosion resistance
- Standard output 2.0±5%mV/V, compatible with common indicators
- Compact design for straightforward integration
Applications
Used in industrial batching and dosing scales, quantitative packaging scales, belt-conveyor scales, hoppers and automatic sorters.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 50kg 60kg 100kg 200kg 300kg | Comprehensive accuracy | ≤±0.03%F.S |
| Temp. compensated range | -10°C~40°C | Output sensitivity | 2.0±5%mV/V |
| Operating temp. range | -20°C~60°C | Nonlinearity | ±0.03%F.S |
| Temp. Effect on Output | <0.03%F.S/10°C | Hysteresis | ±0.03%F.S |
| Temp. Effect on Zero | <0.02%F.S/10°C | Repeatability | ±0.02%F.S |
| Input impedance | 410±15Ω | Creep (30 min) | ±0.02%F.S/30min |
| Output impedance | 350±5Ω | Zero balance | ≤±1%F.S |
| Insulation resistance | ≥5000MΩ | Excitation voltage | 5-12V DC |
| Material | Aluminum alloy | Safe overload | 120%F.S |
| Recommended surface size | 350x450mm | Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) |

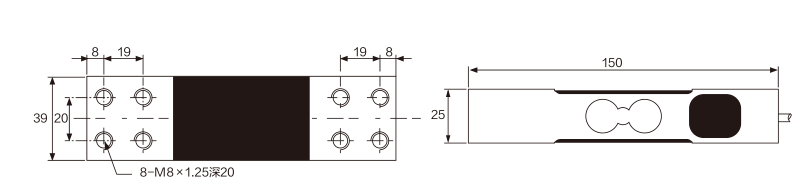

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK713-A?
Used in industrial batching and dosing scales, quantitative packaging scales, belt-conveyor scales, hoppers and automatic sorters.
Which indicator, transmitter or system works with the MK713-A?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
