Overview

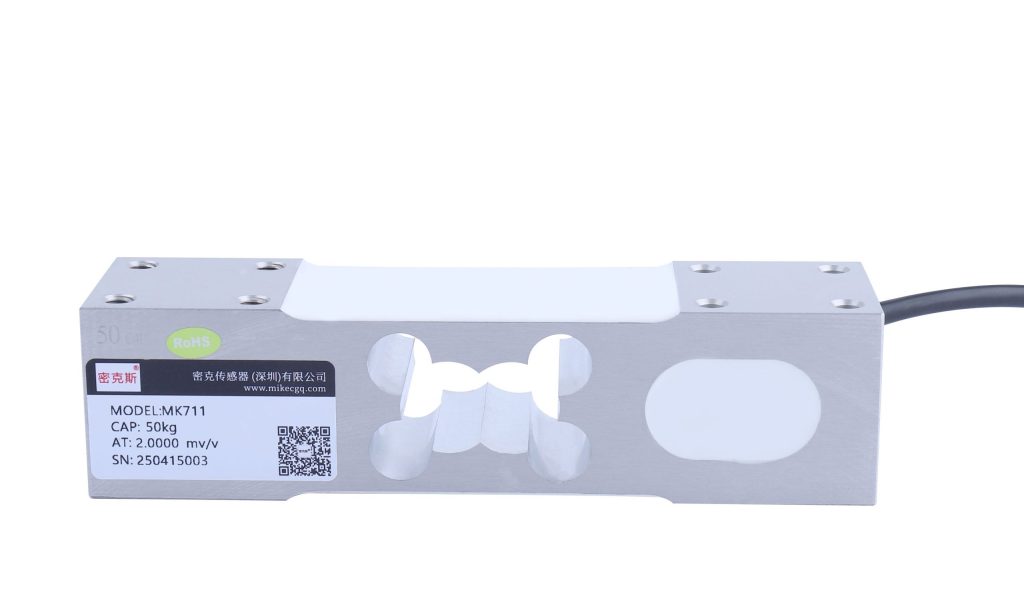

Reliable, repeatable weight signals are the design objective of the MK711, a parallel-beam load cell with high accuracy and pronounced resistance to off-centre loading. Its industrial construction keeps performance steady in busy plant areas, and the compact envelope fits where larger cells cannot be accommodated.
Key Features
- High accuracy (≤±0.02%F.S) for precise measurement
- Aluminum alloy elastic element for durability and corrosion resistance
- Standard output 2.0±10%mV/V, compatible with common indicators
- Compact design for straightforward integration
Applications
Deployed on batching, packaging, belt and hopper scales, and within automated sortation systems that require continuous stable weighing.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 0.5kN(50kg) 1kN(100kg) 2kN(200kg) 2.5kN(250kg) 3kN(300kg) | Comprehensive accuracy | ≤±0.02%F.S |
| Temp. compensated range | -10°C~40°C | Output sensitivity | 2.0±10%mV/V |
| Operating temp. range | -20°C~60°C | Nonlinearity | ±0.02%F.S |
| Temp. Effect on Output | <0.02%F.S/10°C | Hysteresis | ±0.02%F.S |
| Temp. Effect on Zero | <0.02%F.S/10°C | Repeatability | ±0.02%F.S |
| Input impedance | 410±15Ω | Creep (30 min) | ±0.02%F.S/30min |
| Output impedance | 350±5Ω | Zero balance | ≤±2%F.S |
| Insulation resistance | ≥5000MΩ | Excitation voltage | 5-12V DC |
| Material | Aluminum alloy | Safe overload | 120%F.S |
| Recommended surface size | 600x500mm | Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) |

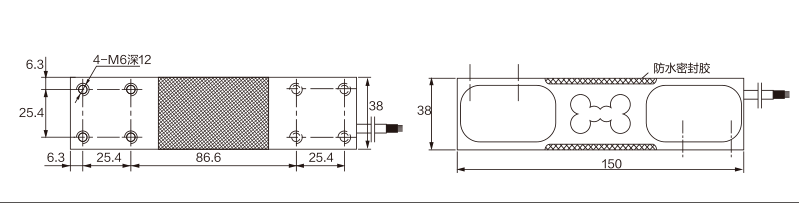

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK711?
Deployed on batching, packaging, belt and hopper scales, and within automated sortation systems that require continuous stable weighing.
Which indicator, transmitter or system works with the MK711?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
