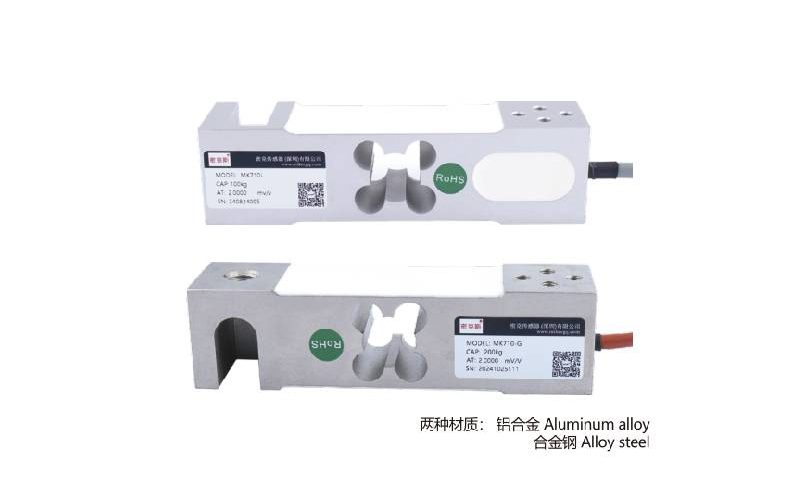

Overview
The MK710 is a compact parallel-beam load cell built around accurate, drift-free measurement and strong resistance to eccentric loading. Its durable, space-efficient design suits precision weighing and control in automated production lines.
Key Features
- High accuracy (≤±0.03%F.S) for precise measurement
- Aluminum alloy elastic element for durability and corrosion resistance
- Sealed to – for reliable operation in harsh environments
- Standard output 2.0mV/V, compatible with common indicators
- Compact design for straightforward integration
Applications
Commonly used in batching and quantitative packaging scales, belt and hopper scales, and automated sortation equipment.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | MK710-L 600N(60kg) 1kN(100kg) 2kN(200kg) 3kN(300kg) MK710-R 600N(60kg) 1kN(100kg) 2kN(200kg) 3kN(300kg) | Comprehensive accuracy | ≤±0.03%F.S |
| Temp. compensated range | -10°C~40°C | Output sensitivity | 2.0mV/V |
| Operating temp. range | -20°C~60°C | Nonlinearity | ±0.03%F.S |
| Temp. Effect on Output | <0.02%F.S/10°C | Hysteresis | ±0.03%F.S |
| Temp. Effect on Zero | <0.02%F.S/10°C | Repeatability | ±0.02%F.S |
| Input impedance | 410±15Ω | Creep (30 min) | ±0.02%F.S/30min |
| Output impedance | 350±5Ω | Zero balance | ≤±2%F.S |
| Insulation resistance | ≥5000MΩ | Excitation voltage | 10V DC |
| Material | Aluminum alloy | Safe overload | 120%F.S |
| Protection class | – | Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) |

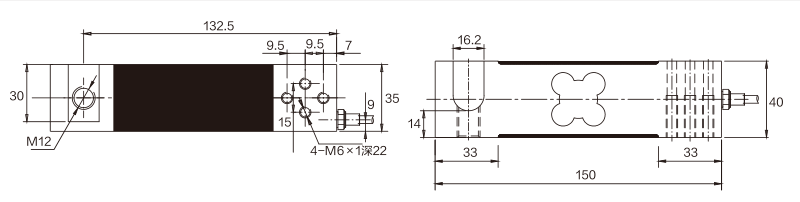

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK710?
Commonly used in batching and quantitative packaging scales, belt and hopper scales, and automated sortation equipment.
Which indicator, transmitter or system works with the MK710?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
