Overview

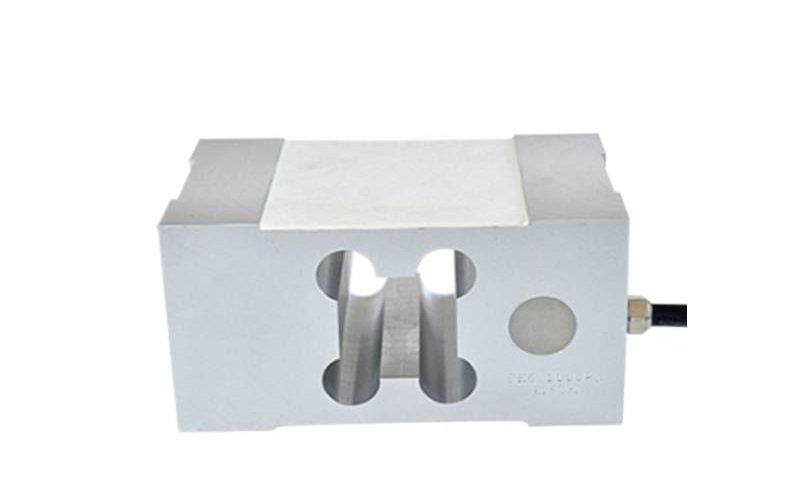

The MK709 is a parallel-beam load cell that brings together high measurement accuracy, strong resistance to off-centre forces, and rugged industrial durability. Its compact, stable build supports dependable performance in automated weighing and control applications, maintaining precision across continuous production cycles.
Key Features
- High accuracy with off-centre-force rejection
- Compact, stable, durable build
- Dependable for automated weighing
- High accuracy (≤0.03%F.S) for precise measurement
- Aluminum alloy elastic element for durability and corrosion resistance
- Standard output 2.0±0.1%mV/V, compatible with common indicators
Applications
Well matched to batching, quantitative packaging, belt, and hopper scales as well as automated sortation systems.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 3kN / 300kg 5kN / 500kg 6kN / 600kg 7.5kN / 750kg 10kN / 1t | Comprehensive accuracy | ≤0.03%F.S |
| Temp. compensated range | -10°C~40°C | Output sensitivity | 2.0±0.1%mV/V |
| Operating temp. range | -20°C~60°C | Nonlinearity | ±0.03%F.S |
| Temp. Effect on Output | <0.03%F.S/10°C | Hysteresis | ±0.03%F.S |
| Temp. Effect on Zero | <0.03%F.S/10°C | Repeatability | ±0.02%F.S |
| Input impedance | 410±15Ω | Creep (30 min) | ±0.02%F.S/30min |
| Output impedance | 350±5Ω | Zero balance | ≤±1%F.S |
| Insulation resistance | ≥5000MΩ | Excitation voltage | 10V DC |
| Material | Aluminum alloy | Safe overload | 120%F.S |
| Recommended surface size | 600x500mm | Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) |

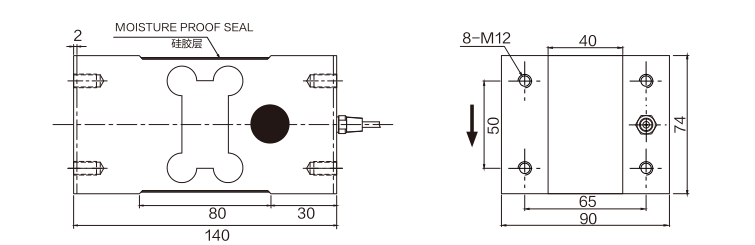

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK709?
Well matched to batching, quantitative packaging, belt, and hopper scales as well as automated sortation systems.
Which indicator, transmitter or system works with the MK709?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
