Overview

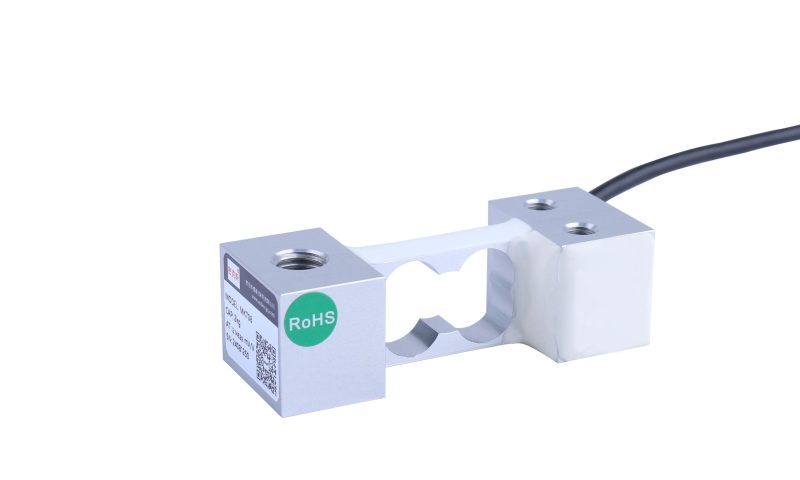

The MK708 is a parallel-beam load cell whose compact form conceals an industrial-grade ability to measure accurately even when loads fall off centre. Its stable signals support demanding automated control loops in weighing, batching and packaging machinery that must run without drift or downtime.
Key Features
- High accuracy (≤0.03%F.S) for precise measurement
- Aluminum alloy elastic element for durability and corrosion resistance
- Sealed to – for reliable operation in harsh environments
- Standard output 2.0mV/V, compatible with common indicators
- Compact design for straightforward integration
Applications
Applied to batching scales, quantitative packaging scales, belt-conveyor and hopper weighing, and automated sortation equipment.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 1kg 2kg 5kg 10kg 20kg 40kg 60kg 100kg 150kg 200kg | Comprehensive accuracy | ≤0.03%F.S |
| Temp. compensated range | -10°C~40°C | Output sensitivity | 2.0mV/V |
| Operating temp. range | -20°C~60°C | Nonlinearity | ±0.03%F.S |
| Temp. Effect on Output | <0.03%F.S/10°C | Hysteresis | ±0.03%F.S |
| Temp. Effect on Zero | <0.03%F.S/10°C | Repeatability | ±0.02%F.S |
| Input impedance | 410±15Ω | Creep (30 min) | ±0.02%F.S/30min |
| Output impedance | 350±5Ω | Zero balance | ≤±2%F.S |
| Insulation resistance | ≥5000MΩ | Excitation voltage | 10V DC |
| Material | Aluminum alloy | Safe overload | 120%F.S |
| Protection class | – | Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) |

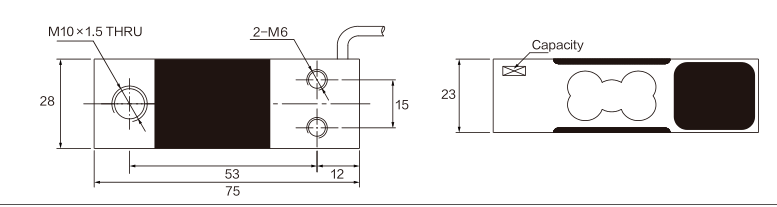

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK708?
Applied to batching scales, quantitative packaging scales, belt-conveyor and hopper weighing, and automated sortation equipment.
Which indicator, transmitter or system works with the MK708?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
