Overview

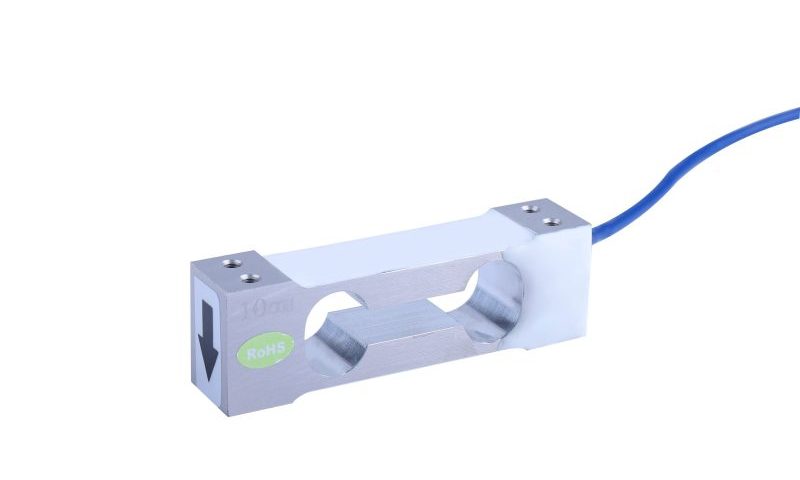

The MK707 is a slim parallel-beam load cell offering high accuracy, good rejection of off-centre forces and long-wearing industrial construction. Its compact, stable beam supplies dependable weight feedback for automated control, and it fits easily into scale platforms where mounting depth is limited.
Key Features
- High accuracy (≤±0.03%F.S) for precise measurement
- Aluminum alloy elastic element for durability and corrosion resistance
- Sealed to IP66 for reliable operation in harsh environments
- Standard output 1.0~2.0mV/V±10%, compatible with common indicators
- Compact design for straightforward integration
Applications
Small platform and bench weighing, dosing and packaging scales, and hopper or sortation systems in factory service.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 0.3kg 0.5kg 1kg 2kg 3kg 5kg 10kg | Comprehensive accuracy | ≤±0.03%F.S |
| Temp. compensated range | -10°C~40°C | Output sensitivity | 1.0~2.0mV/V±10% |
| Operating temp. range | -10°C~50°C | Nonlinearity | ±0.03%F.S |
| Temp. Effect on Output | <0.03%F.S/10°C | Hysteresis | ±0.03%F.S |
| Temp. Effect on Zero | <0.03%F.S/10°C | Repeatability | ±0.02%F.S |
| Input impedance | 410±15Ω | Creep (30 min) | ±0.02%F.S/30min |
| Output impedance | 350±5Ω | Zero balance | ≤±1%F.S |
| Insulation resistance | ≥5000MΩ | Excitation voltage | 5-12V DC |
| Material | Aluminum alloy | Safe overload | 120%F.S |
| Protection class | IP66 | Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) |

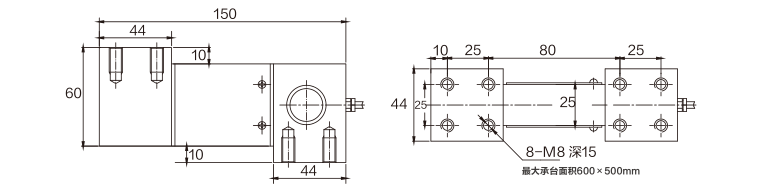

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK707?
Small platform and bench weighing, dosing and packaging scales, and hopper or sortation systems in factory service.
Which indicator, transmitter or system works with the MK707?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
