Overview

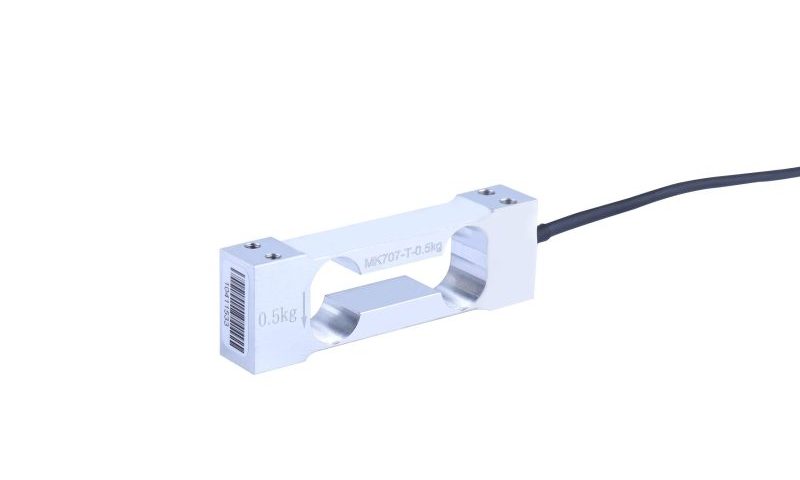

Compact and accurate, the MK707-T parallel-beam load cell rejects off-centre loading and provides stable, dependable readings for small-scale weighing. Its industrial-grade durability supports automated control duties.
Key Features
- High accuracy (≤±0.03%F.S) for precise measurement
- Aluminum alloy elastic element for durability and corrosion resistance
- Sealed to IP65 for reliable operation in harsh environments
- Standard output 1.0 1.5 2.0mV/V±10%, compatible with common indicators
- Compact design for straightforward integration
Applications
Suited to batching, quantitative packaging, belt and hopper scales and automated sortation equipment.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 0.5kg 5kg | Comprehensive accuracy | ≤±0.03%F.S |
| Temp. compensated range | -10°C~40°C | Output sensitivity | 1.0 1.5 2.0mV/V±10% |
| Operating temp. range | -20°C~60°C | Nonlinearity | ±0.03%F.S |
| Temp. Effect on Output | ±0.05%F.S/10°C | Hysteresis | ±0.03%F.S |
| Temp. Effect on Zero | ±0.05%F.S/10°C | Repeatability | ±0.02%F.S |
| Input impedance | 410±15Ω | Creep (30 min) | ±0.02%F.S/30min |
| Output impedance | 350±5Ω | Zero balance | ≤±1.0%F.S |
| Insulation resistance | ≥5000MΩ | Excitation voltage | 5-12V DC |
| Material | Aluminum alloy | Safe overload | 120%F.S |
| Protection class | IP65 | Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) |

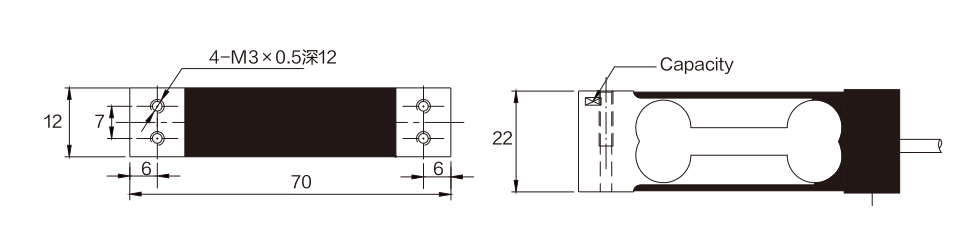

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK707-T?
Suited to batching, quantitative packaging, belt and hopper scales and automated sortation equipment.
Which indicator, transmitter or system works with the MK707-T?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
