Overview

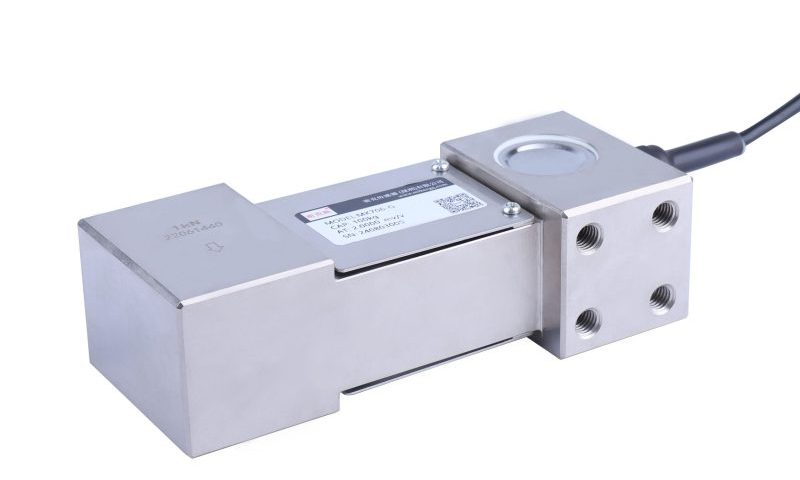

The MK706 is a parallel-beam load cell for industrial weighing that must remain accurate while loads shift position on the platform. It combines fine measurement performance with strong eccentric-load tolerance and durable construction, giving stable output across long production runs in a compact, integration-friendly housing.
Key Features
- High accuracy (0.02~0.05%F.S) for precise measurement
- MK706: Aluminum alloy elastic element for durability and corrosion resistance
- Standard output 2.0±0.01mV/V, compatible with common indicators
- Compact design for straightforward integration
Applications
Typified by batching and quantitative packaging scales, belt-conveyor and hopper weighing, and automated sortation and control installations.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 50kg,70kg,100kg,150kg,200kg,250kg,300kg,500kg,700kg,1000kg | Comprehensive accuracy | 0.02~0.05%F.S |
| Temp. compensated range | -10°C~40°C | Output sensitivity | 2.0±0.01mV/V |
| Operating temp. range | -20°C~60°C | Nonlinearity | ±0.03%F.S |
| Temp. Effect on Output | <0.05%F.S/10°C | Hysteresis | ±0.03%F.S |
| Temp. Effect on Zero | <0.05%F.S/10°C | Repeatability | ±0.02%F.S |
| Input impedance | 380±10Ω | Creep (30 min) | ±0.02%F.S/30min |
| Output impedance | 350±3Ω | Zero balance | ≤±1%F.S |
| Insulation resistance | ≥5000MΩ | Excitation voltage | 10V DC |
| Material | MK706: Aluminum alloy | Safe overload | 120%F.S |
| Material | MK706-G: Alloy steel | Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) |

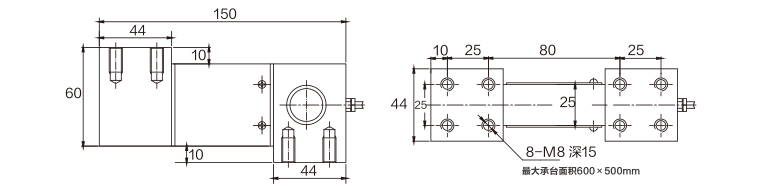

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK706?
Typified by batching and quantitative packaging scales, belt-conveyor and hopper weighing, and automated sortation and control installations.
Which indicator, transmitter or system works with the MK706?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
