Overview

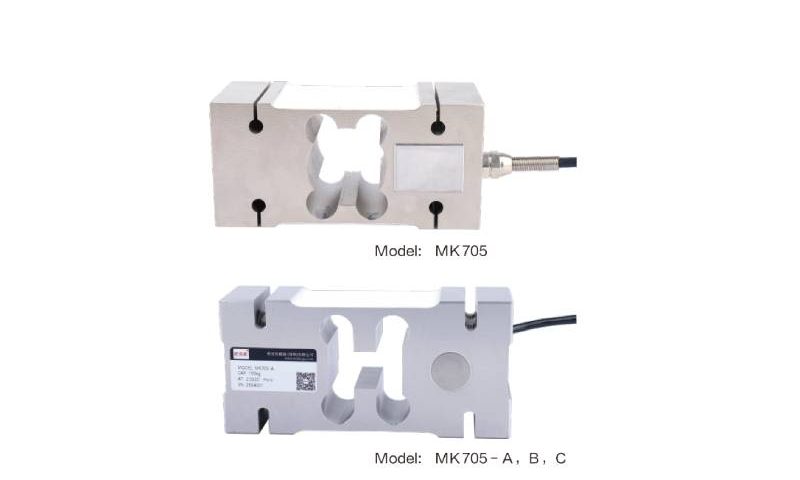

The MK705 parallel-beam load cell combines high accuracy with industrial durability and effective off-centre-load rejection. Its compact, stable structure makes it a dependable element for automated weighing and process control.
Key Features
- High accuracy (≤0.03%F.S) for precise measurement
- MK705: Alloy-steel elastic element for durability and corrosion resistance
- Standard output 2.0±0.01mV/V, compatible with common indicators
- Compact design for straightforward integration
Applications
Widely applied to batching and packaging scales, belt and hopper weighing systems, and automated sortation lines.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | MK705 50kg 100kg 200kg 250kg 500kg 1t MK705-A 50kg 100kg 150kg 200kg MK705-B 250kg 500kg MK705-C 750kg 1t 2t | Comprehensive accuracy | ≤0.03%F.S |
| Temp. compensated range | -10°C~40°C | Output sensitivity | 2.0±0.01mV/V |
| Operating temp. range | -20°C~60°C | Nonlinearity | ±0.03%F.S |
| Temp. Effect on Output | <0.02%F.S/10°C | Hysteresis | ±0.03%F.S |
| Temp. Effect on Zero | <0.03%F.S/10°C | Repeatability | ±0.02%F.S |
| Input impedance | 410±15Ω/(MK705 382±15Ω) | Creep (30 min) | ±0.02%F.S/30min |
| Output impedance | 350±5Ω | Zero balance | ≤±1%F.S |
| Insulation resistance | ≥5000MΩ 50VDC | Excitation voltage | 5-12V DC |
| Material | MK705: Alloy-steel | Safe overload | 120%F.S |
| Material | MK705-A, B, C: Aluminum alloy | Limit overload | – |
| Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) | ||

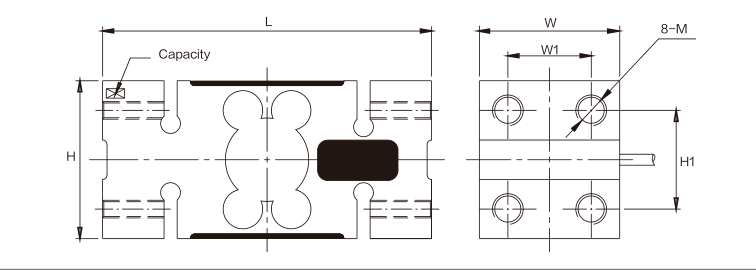

Dimension Drawing
Dimensions
| Model | Capacity(kN) | Capacity(kg) | L | W | W1 | H | H1 | M | (mm) |
|---|---|---|---|---|---|---|---|---|---|
| MK705 | 0.5~10 | 50~1000 | 150 | 64 | 38 | 72 | 46 | M14 | 8000×8000 |
| 20 | 2000 | 72 | 42 | 80 | 55 | M16 | |||
| MK705-A | 0.5~2 | 50~200 | 156 | 44 | 24 | 75 | 50 | M12x1.75 | 6000×6000 |
| MK705-B | 2.5~5 | 250~500 | 146 | 60 | 36 | 95 | 70 | 6000×8000 | |
| MK705-C | 7.5~20 | 750~2000 | 176 | 76 | 46 | 125 | 95 | M16x2.0 | 12000×12000 |
Frequently Asked Questions
What are the typical applications of the MK705?
Widely applied to batching and packaging scales, belt and hopper weighing systems, and automated sortation lines.
Which indicator, transmitter or system works with the MK705?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
