Overview

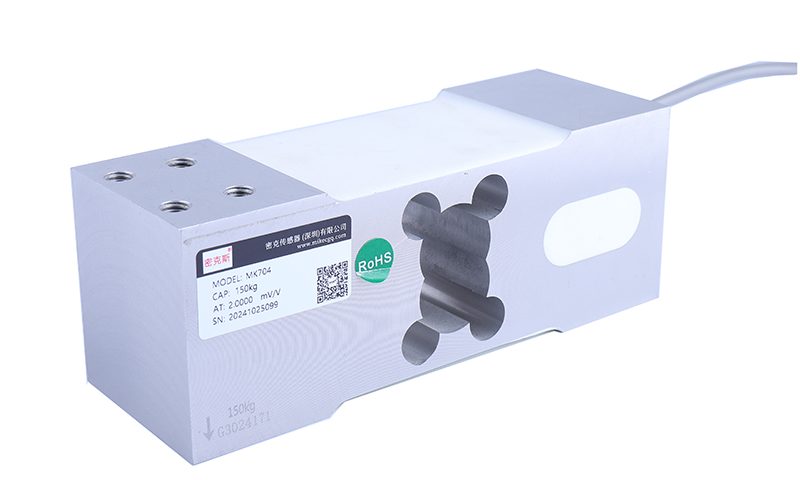

The MK704 parallel-beam load cell offers high accuracy and strong eccentric-load resistance in rugged, compact construction. Consistent, stable output makes it a core sensing element for industrial weighing and control.
Key Features
- High accuracy (≤0.03%F.S) for precise measurement
- Aluminum alloy elastic element for durability and corrosion resistance
- Sealed to IP66 for reliable operation in harsh environments
- Standard output 2.0±5%mV/V, compatible with common indicators
- Compact design for straightforward integration
Applications
Used in batching and dosing scales, quantitative packaging, belt-conveyor and hopper scales, and automated sortation systems.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 60kg 100kg 150kg 200kg 300kg 500kg 800kg 1000kg | Comprehensive accuracy | ≤0.03%F.S |
| Temp. compensated range | -10°C~40°C | Output sensitivity | 2.0±5%mV/V |
| Operating temp. range | -20°C~60°C | Nonlinearity | ±0.03%F.S |
| Temp. Effect on Output | <0.05%F.S/10°C | Hysteresis | ±0.03%F.S |
| Temp. Effect on Zero | <0.05%F.S/10°C | Repeatability | ±0.02%F.S |
| Input impedance | 410±15Ω | Creep (30 min) | ±0.02%F.S/30min |
| Output impedance | 350±5Ω | Zero balance | ≤±0.1%F.S |
| Insulation resistance | ≥5000MΩ | Excitation voltage | 5-12V DC |
| Material | Aluminum alloy | Safe overload | 120%F.S |
| Protection class | IP66 | Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) |

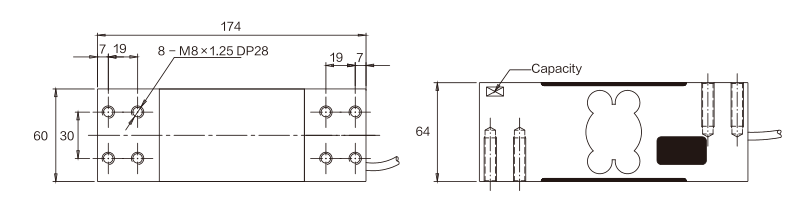

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK704?
Used in batching and dosing scales, quantitative packaging, belt-conveyor and hopper scales, and automated sortation systems.
Which indicator, transmitter or system works with the MK704?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
