Overview

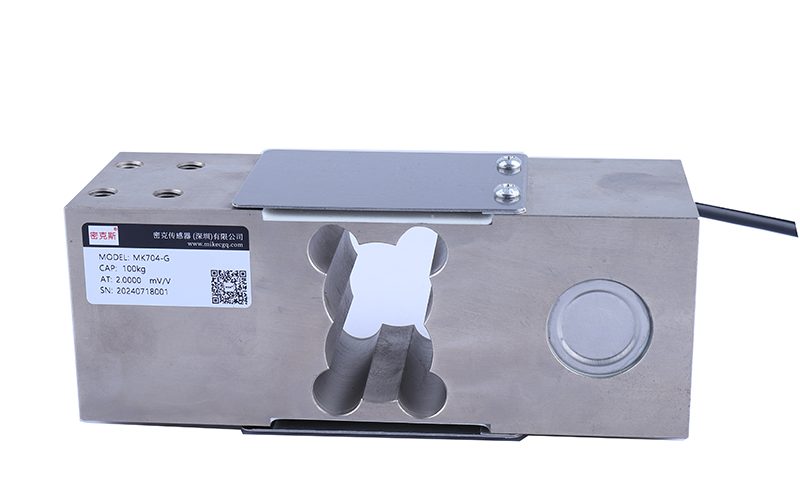

Designed for precise, repeatable weighing, the MK704-G parallel-beam load cell combines high accuracy with excellent off-centre-load resistance and industrial-grade toughness. Its compact, stable construction suits demanding automated scale and process-control duty, keeping accuracy steady through long production runs.
Key Features
- High accuracy with off-centre-load rejection
- Compact, industrial-durability build
- Stable output for automated weighing
- High accuracy (≤0.03%F.S) for precise measurement
- Alloy steel elastic element for durability and corrosion resistance
- Sealed to IP66 for reliable operation in harsh environments
Applications
Applied across industrial batching scales, quantitative packaging, belt and hopper scales, and automated sorting equipment.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 100kg 150kg 200kg 300kg 500kg 800kg 1000kg | Comprehensive accuracy | ≤0.03%F.S |
| Temp. compensated range | -10°C~40°C | Output sensitivity | 1.3±10%mV/V |
| Operating temp. range | -20°C~60°C | Nonlinearity | ±0.03%F.S |
| Temp. Effect on Output | <0.03%F.S/10°C | Hysteresis | ±0.03%F.S |
| Temp. Effect on Zero | <0.03%F.S/10°C | Repeatability | ±0.02%F.S |
| Input impedance | 380±10Ω | Creep (30 min) | ±0.02%F.S/30min |
| Output impedance | 350±3Ω | Zero balance | ≤±1.0%F.S |
| Insulation resistance | ≥5000MΩ | Excitation voltage | 5-12V DC |
| Material | Alloy steel | Safe overload | 120%F.S |
| Protection class | IP66 | Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) |

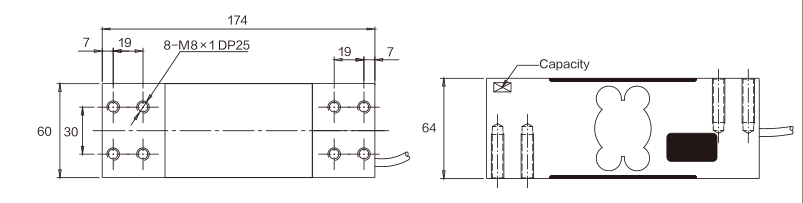

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK704-G?
Applied across industrial batching scales, quantitative packaging, belt and hopper scales, and automated sorting equipment.
Which indicator, transmitter or system works with the MK704-G?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
