Overview

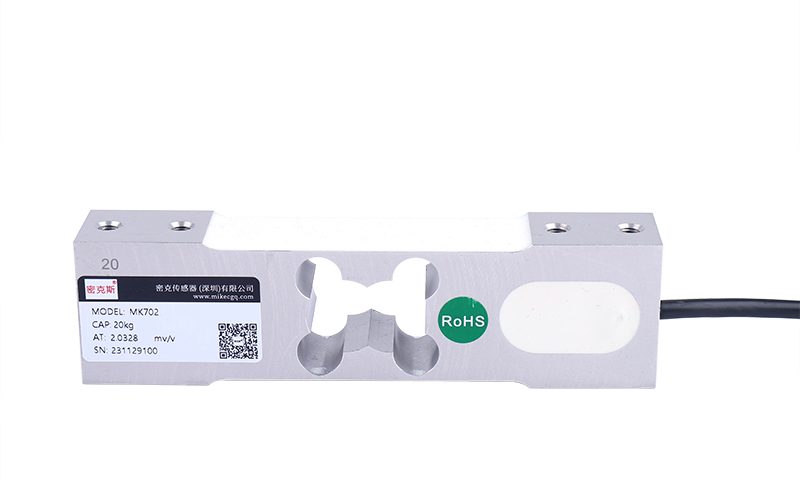

Designed as a stable, high-accuracy weighing element, the MK702 parallel-beam load cell resists off-centre loads and stands up to continuous industrial use. Its compact construction simplifies integration into scale platforms that need repeatable force output for automated weighing and control.
Key Features
- High accuracy (≤0.02%F.S) for precise measurement
- Aluminum alloy elastic element for durability and corrosion resistance
- Sealed to – for reliable operation in harsh environments
- Standard output 2.0±10%mV/V, compatible with common indicators
- Compact design for straightforward integration
Applications
Industrial batching, quantitative packaging, electronic belt and hopper scales, and automated sortation systems.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 7kg 10kg 15kg 20kg 30kg 40kg 50kg 75kg 100kg 200kg | Comprehensive accuracy | ≤0.02%F.S |
| Temp. compensated range | -10°C~40°C | Output sensitivity | 2.0±10%mV/V |
| Operating temp. range | -20°C~60°C | Nonlinearity | ±0.03%F.S |
| Temp. Effect on Output | <0.05%F.S/10°C | Hysteresis | ±0.03%F.S |
| Temp. Effect on Zero | <0.05%F.S/10°C | Repeatability | ±0.03%F.S |
| Input impedance | 410±15Ω / 1130±30Ω | Creep (30 min) | ±0.03%F.S/30min |
| Output impedance | 350±5Ω / 1000±10Ω | Zero balance | ≤±1%F.S |
| Insulation resistance | ≥5000MΩ | Excitation voltage | 5-12V DC |
| Material | Aluminum alloy | Safe overload | 120%F.S |
| Protection class | – | Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) |

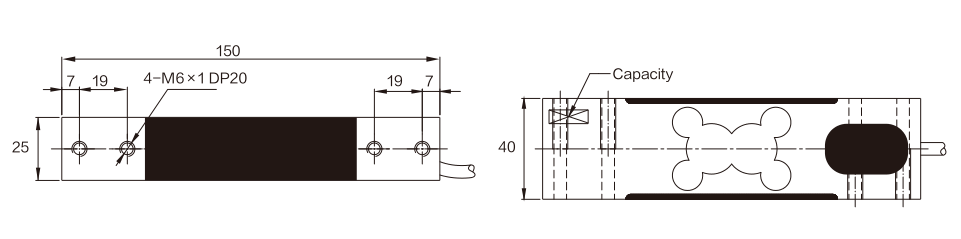

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK702?
Industrial batching, quantitative packaging, electronic belt and hopper scales, and automated sortation systems.
Which indicator, transmitter or system works with the MK702?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
