Overview

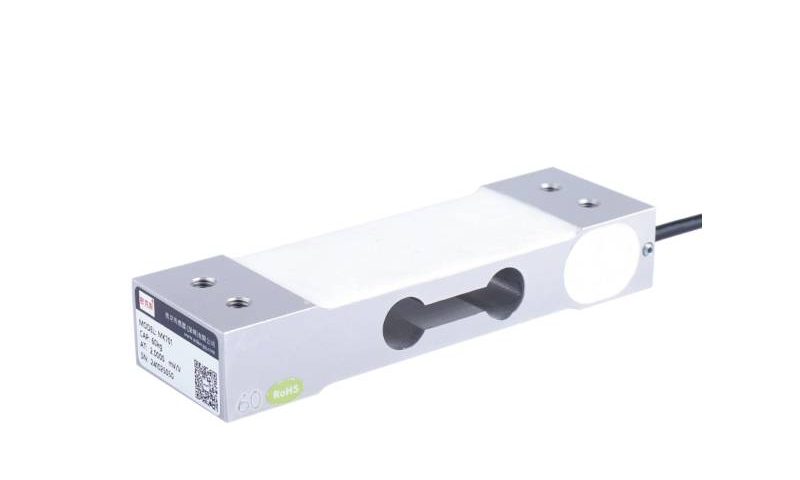

The MK701 is a compact parallel-beam load cell that combines high accuracy with strong resistance to off-centre loads and industrial-grade durability. Its stable, repeatable output makes it a dependable core sensing element for automated weighing and control, while the tight footprint eases integration into space-constrained scales.
Key Features
- High accuracy (≤0.03%F.S) for precise measurement
- Aluminum alloy elastic element for durability and corrosion resistance
- Sealed to IP66 for reliable operation in harsh environments
- Standard output 2.0±10%mV/V, compatible with common indicators
- Compact design for straightforward integration
Applications
Commonly used in industrial batching scales, quantitative packaging scales, belt-conveyor scales, hopper scales and automatic sortation systems.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 3kg 6kg 7kg 10kg 20kg 30kg 35kg 45kg 50kg 60kg 100kg | Comprehensive accuracy | ≤0.03%F.S |
| Temp. compensated range | -10°C~40°C | Output sensitivity | 2.0±10%mV/V |
| Operating temp. range | -20°C~60°C | Nonlinearity | ±0.03%F.S |
| Temp. Effect on Output | <0.05%F.S/10°C | Hysteresis | ±0.03%F.S |
| Temp. Effect on Zero | <0.05%F.S/10°C | Repeatability | ±0.02%F.S |
| Input impedance | 410±15Ω / 1130±30Ω | Creep (30 min) | ±0.02%F.S/30min |
| Output impedance | 350±5Ω / 1000±10Ω | Zero balance | ≤±1%F.S |
| Insulation resistance | ≥5000MΩ | Excitation voltage | 5-12V DC |
| Material | Aluminum alloy | Safe overload | 120%F.S |
| Protection class | IP66 | Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) |

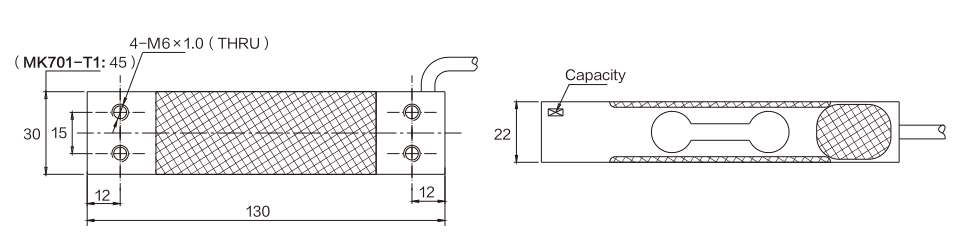

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK701?
Commonly used in industrial batching scales, quantitative packaging scales, belt-conveyor scales, hopper scales and automatic sortation systems.
Which indicator, transmitter or system works with the MK701?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
