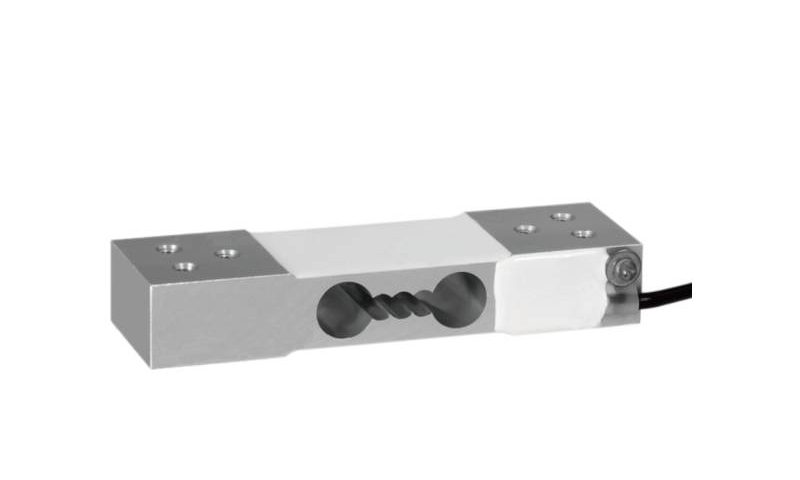

Overview
The MK701-T2 is a parallel-beam load cell that pairs accurate, repeatable weighing with rugged, compact construction. Its design rejects side and off-centre forces, simplifying integration into space-limited scale and automation platforms.
Key Features
- High accuracy (–) for precise measurement
- Aluminum alloy elastic element for durability and corrosion resistance
- Sealed to IP65 for reliable operation in harsh environments
- Standard output <0.02%F.S./10°C, compatible with common indicators
- Compact design for straightforward integration
Applications
Suited to batching and dosing scales, quantitative packaging and checkweigher systems, belt and hopper scales, and sortation equipment.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 20kg, 30kg, 40kg, 50kg, 60kg, 100kg (customizable) | Comprehensive accuracy | – |
| Temp. compensated range | -10°C~40°C | Sensitivity | 2.0±10%mV/V |
| Operating temp. range | -20°C~60°C | Nonlinearity | ±0.015%F.S. |
| Temp. Effect on Output | <0.02%F.S./10°C | Hysteresis | ±0.01%F.S. |
| Temp. Effect on Zero | <0.02%F.S./10°C | Repeatability | ±0.01%F.S. |
| Input impedance | 405±10Ω | Creep (30 min) | ±0.02%F.S./30min |
| Output impedance | 350±3Ω | Zero balance | ≤±5%F.S. |
| Insulation resistance | ≥5000MΩ / 50VDC | Excitation voltage | 5-12V DC |
| Material | Aluminum alloy | Safe overload | 120%F.S. |
| Protection class | IP65 | Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) |

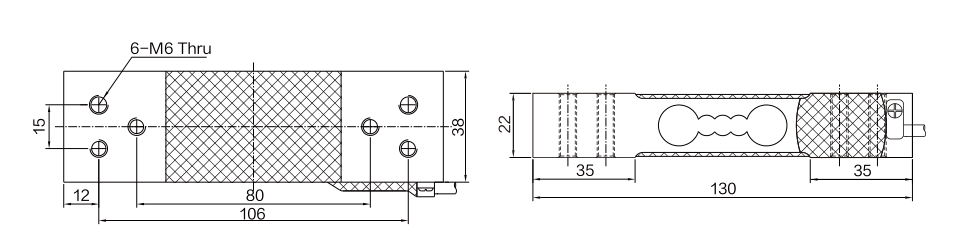

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK701-T2?
Suited to batching and dosing scales, quantitative packaging and checkweigher systems, belt and hopper scales, and sortation equipment.
Which indicator, transmitter or system works with the MK701-T2?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
