Overview

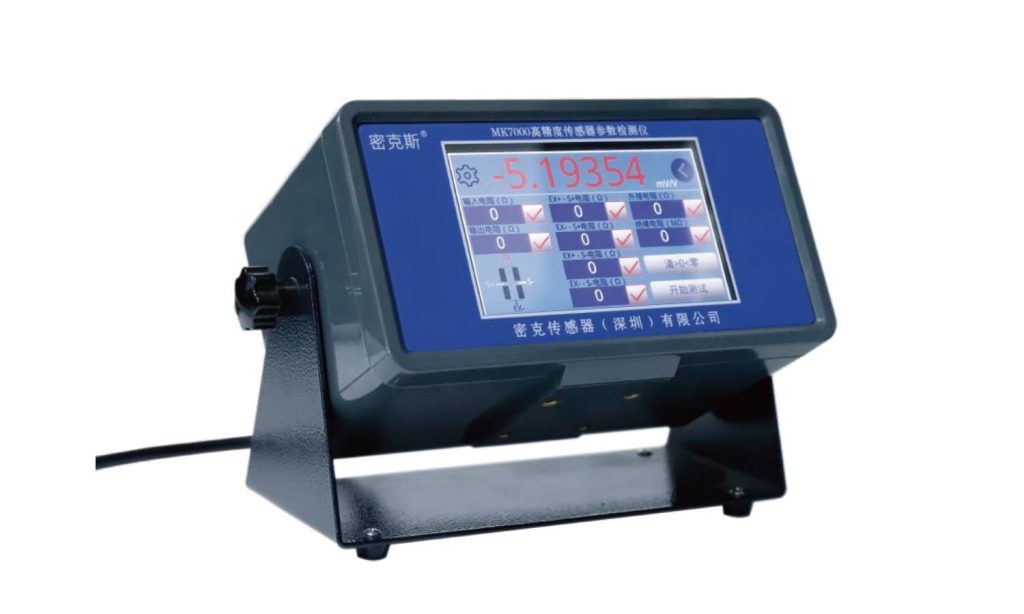

The MK7000 is a high-accuracy sensor parameter measuring instrument used to characterise force and weighing sensors. It combines very high precision with long-term stability, supports multi-parameter measurement with automatic calibration, and displays results digitally and intuitively, so it drops readily into automated inspection and control systems.
Key Features
- Very high accuracy with long-term stability
- Multi-parameter precision measurement
- Automatic calibration routine
- Intuitive digital display
- Easy integration into automated control systems
- High combined accuracy and excellent long-term stability
Applications
Sensor manufacturing lines, laboratories and quality-control benches where load-cell parameters are measured, calibrated and verified.
| Technical Parameters | |||
|---|---|---|---|
| Operating voltage | MK7000 High-precision Sensor Parameter Tester | Comprehensive accuracy | 1/1000000 |
| Bridge resistance | 8 Pcs 350 ohm Sensor | Sensitivity measurement range | ±5.2mV/V |
| Resistance measurement range | 0-2kΩ (Max.5kΩ) | Insulation measurement range | 0-6000MΩ |
| Maximum resolution of signal | 24 Bits (50Hz) (±2,000,000 raw code) | A/D Conversion Speed | Up to 4800 times/second (18bit) |
| Measurement value output speed (Hz) | 400,200,120,50,25,12.5,7.5 | Digital filter Cut-off Frequency | 120,40,18,8,4,2,1,0.5,0.25 |
| Bridge excitation voltage | ±5V | Linear velocity | ±0.0007 |
| Communication interface | Isolated RS232 | Communication protocol | Modbus protocol (03/06 commands can connect directly to touch screen) |
| Baud rate selection | 9600…115200 | Current consumption | 200mA |
| Compensated temperature range | -10°C~40°C | Working temperature range | -20°C~60°C |
| Dimension (L x W x H) | 200x100x80mm | 200x100x80mm | 200x100x80mm |
Frequently Asked Questions
What are the typical applications of the MK7000?
Sensor manufacturing lines, laboratories and quality-control benches where load-cell parameters are measured, calibrated and verified.
Which indicator, transmitter or system works with the MK7000?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
