Overview

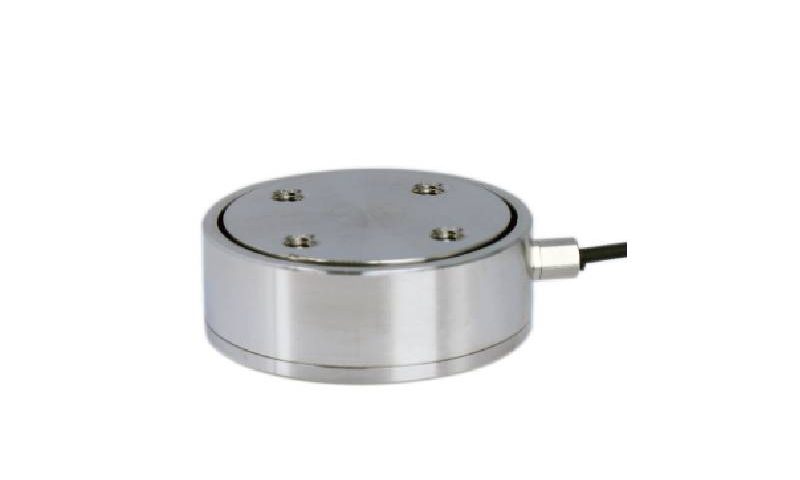

The MK618 is a column-type load cell engineered for high stability and high reliability in continuous force and weighing duty. Its straightforward, rugged column form suits systems that must return dependable force values day after day, and it is a practical choice for material testing machines and similar force-measuring equipment.
Key Features
- High accuracy (±0.1~0.5%F.S) for precise measurement
- Stainless Steel elastic element for durability and corrosion resistance
- Sealed to IP50 for reliable operation in harsh environments
- Standard output 2.0±10%mV/V, compatible with common indicators
- Compact design for straightforward integration
Applications
Applied in force measurement, weighing and other force-value measurement and control systems, including material testing machines.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 0.5kg, 10kg, 20kg, 30kg, 40kg, 50kg | Output sensitivity | 2.0±10%mV/V |
| Temperature compensated range | -10°C~40°C | Nonlinearity | ±0.1~0.5%F.S |
| Operating temperature range | -20°C~60°C | Hysteresis | ±0.1~0.5%F.S |
| Temperature Effect on Output | ±0.05%F.S/10°C | Repeatability | ±0.05%F.S |
| Temperature Effect on Zero | ±0.05%F.S/10°C | Creep (30 min) | ±0.05%F.S/30min |
| Input impedance | 750±10Ω | Zero balance | ≤±2.0%F.S |
| Output impedance | 700±3Ω | Recommended excitation voltage | 3~10V DC |
| Insulation resistance | ≥5000MΩ / 100VDC | Safe overload | 120%F.S |
| Material | Stainless Steel | Limit overload | – |
| Protection class | IP50 | Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) |

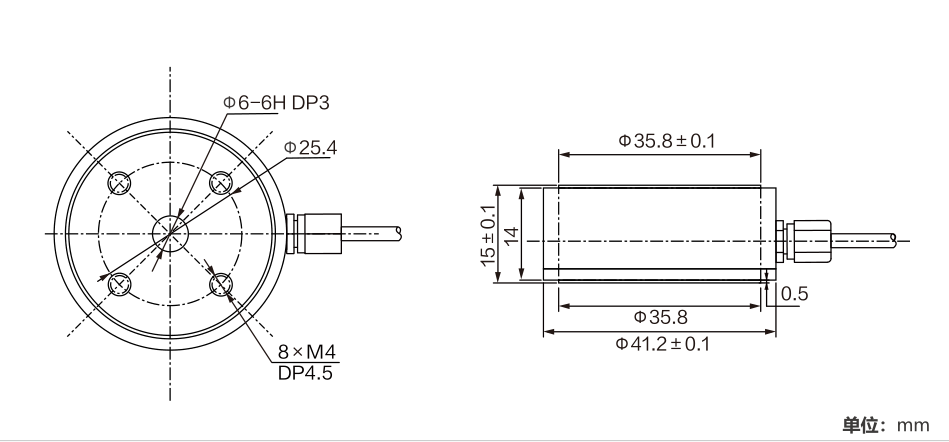

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK618?
Applied in force measurement, weighing and other force-value measurement and control systems, including material testing machines.
Which indicator, transmitter or system works with the MK618?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
