Overview

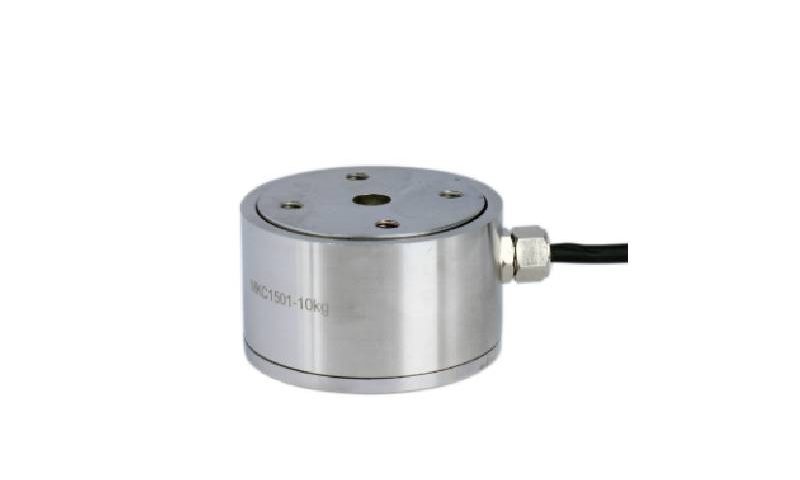

The MK617 is a column load cell engineered for high stability and long service reliability under compressive force. Its robust construction supports accurate measurement across weighing and force-control duties.
Key Features
- High accuracy (±0.1%F.S) for precise measurement
- Stainless Steel elastic element for durability and corrosion resistance
- Sealed to IP50 for reliable operation in harsh environments
- Standard output 2.0±10%mV/V, compatible with common indicators
- Compact design for straightforward integration
Applications
Applied to force and weight measurement and control systems and to material testing machines.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 5kg, 10kg, 20kg, 30kg, 50kg, 100kg, 200kg, 300kg, 500kg, 1t | Output sensitivity | 2.0±10%mV/V |
| Temperature compensated range | -10°C~40°C | Nonlinearity | ±0.1%F.S |
| Operating temperature range | -20°C~60°C | Hysteresis | ±0.1%F.S |
| Temperature Effect on Output | ±0.05%F.S/10°C | Repeatability | ±0.05%F.S |
| Temperature Effect on Zero | ±0.05%F.S/10°C | Creep (30 min) | ±0.05%F.S/30min |
| Input impedance | 385 (750) ±10Ω | Zero balance | ≤±2.0%F.S |
| Output impedance | 350 (700) ±5Ω | Recommended excitation voltage | 3-10V DC |
| Insulation resistance | ≥5000MΩ / 100VDC | Safe overload | 120%F.S |
| Material | Stainless Steel | Limit overload | – |
| Protection class | IP50 | Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) |

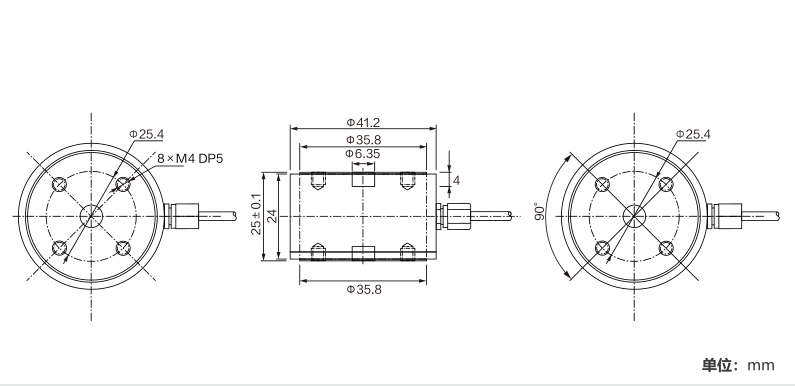

Dimension Drawing
