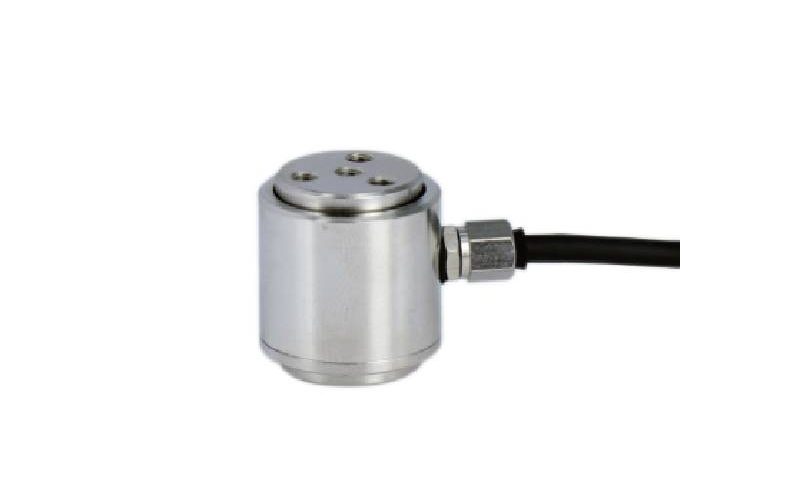

Overview
The MK616 is a column-type load cell chosen for stability and reliability under sustained heavy compression. Its solid column form converts applied force into a clean signal for measurement and control loops, and it is a practical element where large single-axis loads must be tracked dependably.
Key Features
- High accuracy (≤±0.05%F.S) for precise measurement
- Stainless Steel elastic element for durability and corrosion resistance
- Sealed to IP64 for reliable operation in harsh environments
- Standard output 2.0±10%mV/V, compatible with common indicators
- Compact design for straightforward integration
Applications
Force and weight measurement systems, load monitoring and control installations, and material testing machines.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 50N(5kg), 100N(10kg), 200N(20kg), 500N(50kg), 1kN(100kg), 2kN(200kg) | Comprehensive accuracy | ≤±0.05%F.S |
| Temperature compensated range | -10°C~40°C | Output sensitivity | 2.0±10%mV/V |
| Operating temperature range | -20°C~60°C | Nonlinearity | 0.05%F.S |
| Temperature Effect on Output | <0.02%F.S/10°C | Hysteresis | 0.05%F.S |
| Temperature Effect on Zero | <0.02%F.S/10°C | Repeatability | 0.05%F.S |
| Input impedance | 350±10Ω | Creep (30 min) | ±0.05%F.S/30min |
| Output impedance | 350±5Ω | Zero balance | ≤±2.0%F.S |
| Insulation resistance | ≥5000MΩ / 100VDC | Excitation voltage | 5~10V DC |
| Material | Stainless Steel | Safe overload | 120%F.S |
| Protection class | IP64 | Limit overload | – |
| Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) | ||

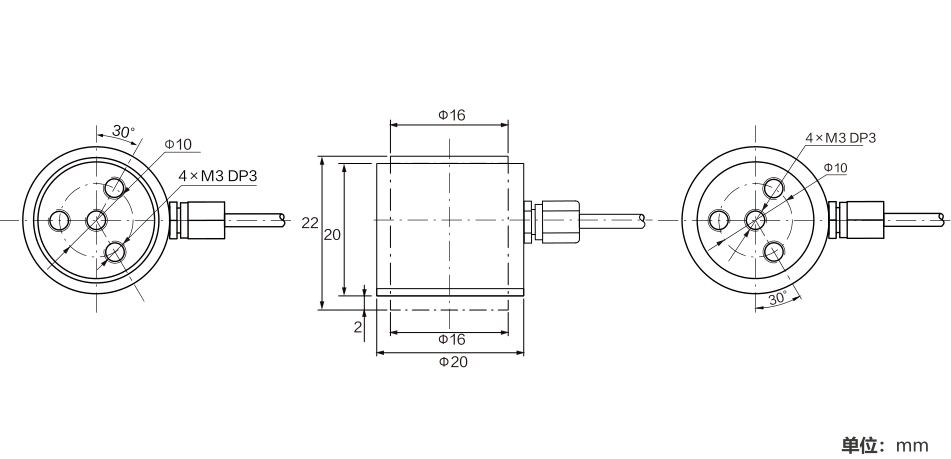

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK616?
Force and weight measurement systems, load monitoring and control installations, and material testing machines.
Which indicator, transmitter or system works with the MK616?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
