Overview

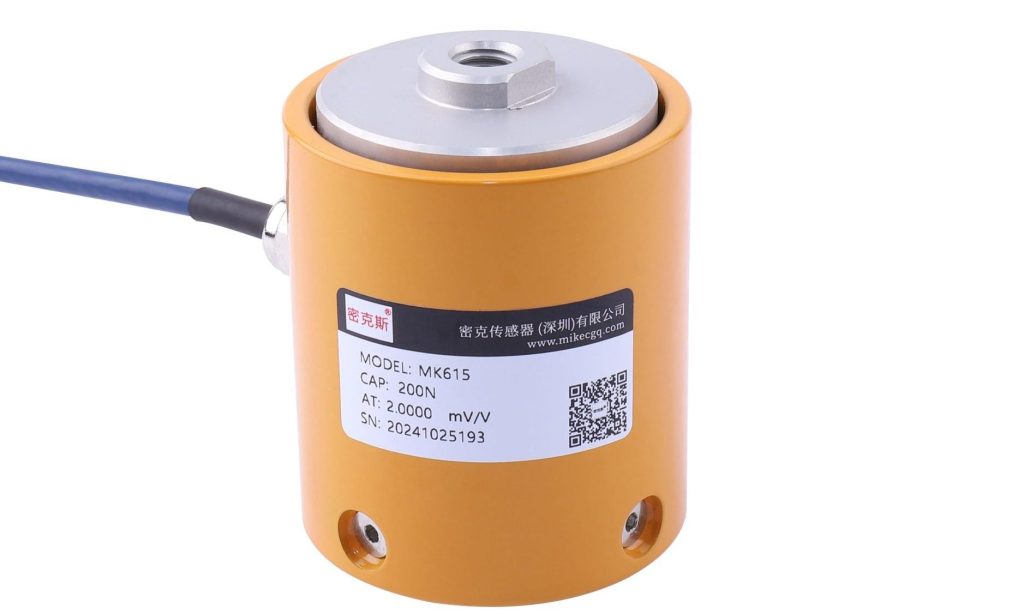

The MK615 is a column-type load cell built for stable, reliable force and weight measurement. Its robust compression element holds dependable output inside demanding measurement and control systems and testing equipment, making it a practical choice where ruggedness and long-term consistency matter.
Key Features
- High accuracy (0.05 0.1 0.2 0.3%F.S) for precise measurement
- Al-Alloy (10N~5kN); Alloy steel (10kN~50kN) elastic element for durability and corrosion resistance
- Standard output 2.0±0.01mV/V, compatible with common indicators
- Compact design for straightforward integration
Applications
Applied in force and weighing measurement and control systems, as well as material testing machines, for stable compression-force readings.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | MK615: 10N, 20N, 30N, 50N, 100N, 200N, 500N, 1kN, 2kN, 2.5kN, 5kN; 10kN, 20kN, 30kN, 50kN MK615-T: 20N, 30N, 50N, 100N, 200N, 500N, 1kN, 2kN | Comprehensive accuracy | 0.05 0.1 0.2 0.3%F.S |
| Temperature compensated range | -10°C~40°C | Output sensitivity | 2.0±0.01mV/V |
| Operating temperature range | -20°C~60°C | Nonlinearity | ±0.03%F.S |
| Temperature Effect on Output | <0.05%F.S/10°C | Hysteresis | ±0.03%F.S |
| Temperature Effect on Zero | <0.05%F.S/10°C | Repeatability | ±0.03%F.S |
| Input impedance | 380±20Ω | Creep (30 min) | ±0.03%F.S/30min |
| Output impedance | 351±3Ω | Zero balance | ≤±1.0%F.S |
| Insulation resistance | ≥5000MΩ | Recommended excitation voltage | 10V DC |
| Material | Al-Alloy (10N~5kN); Alloy steel (10kN~50kN) | Safe overload | 120%F.S |
| Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) | ||

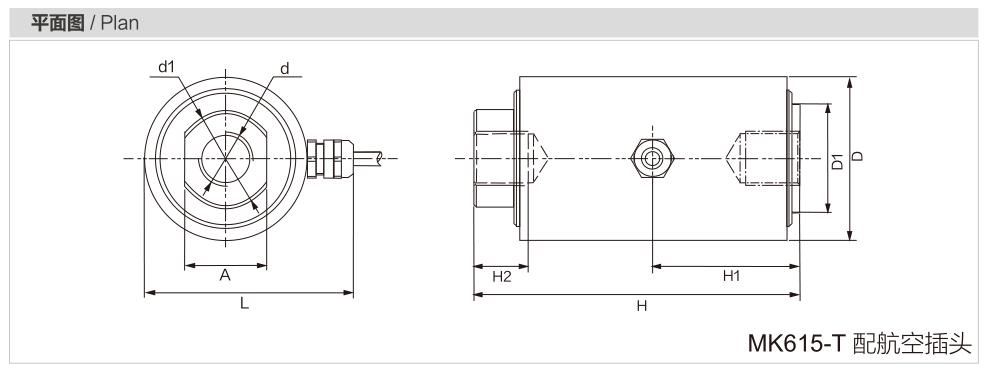

Dimension Drawing
Dimensions (mm)
| Model | Capacity (kN) | Capacity (kg) | A | D | D1 | d | d1 | H | H1 | H2 | L |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MK615 | 0.01~5 | 1~500 | 17 | Φ60 | Φ40 | M10x1.5 | Φ20 | 80 | 39 | 12 | 77 |
| 10~50 | 1000~5000 | 30 | M20x1.5 | Φ36 | 120 | 51 | 20 | ||||
| MK615-T | 0.02~5 | 2~500 | 17 | M8x1.25 | Φ20 | 80 | 39 | 12 |
Frequently Asked Questions
What are the typical applications of the MK615?
Applied in force and weighing measurement and control systems, as well as material testing machines, for stable compression-force readings.
Which indicator, transmitter or system works with the MK615?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
