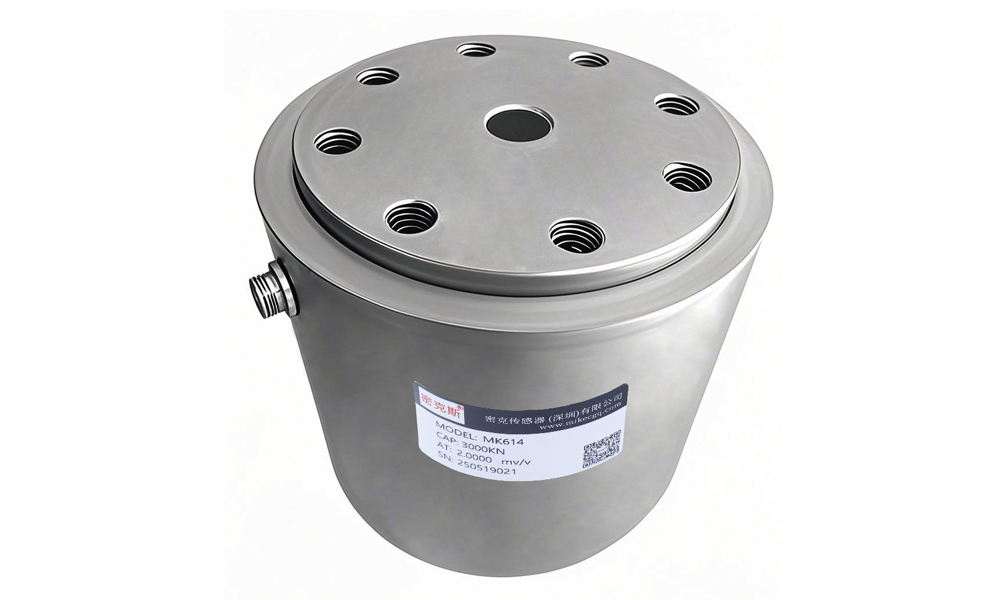

Overview
The MK614 is a column-type load cell specified for high stability and high reliability in heavy industrial force measurement. Where weighing, force sensing and force-based control systems need dependable long-term readings rather than a compact footprint, its simple column design delivers consistent, robust performance in continuous service.
Key Features
- High accuracy (≤±0.1%F.S) for precise measurement
- Alloy steel elastic element for durability and corrosion resistance
- Sealed to IP66 for reliable operation in harsh environments
- Standard output 2.0–2.5mV/V, compatible with common indicators
- Compact design for straightforward integration
Applications
Applied in force measurement, weighing and other force-value measurement and control systems in industrial installations.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 2000kN(200t) 3000kN(300t) 5000kN(500t) 10000kN(1000t) | Comprehensive accuracy | ≤±0.1%F.S |
| Temperature compensated range | -10°C~40°C | Output sensitivity | 2.0–2.5mV/V |
| Operating temperature range | -20°C~60°C | Nonlinearity | ±0.1%F.S |
| Temperature Effect on Output | <0.1%F.S/10°C | Hysteresis | ±0.1%F.S |
| Temperature Effect on Zero | <0.1%F.S/10°C | Repeatability | ±0.1%F.S |
| Input impedance | 380±5Ω | Creep (30 min) | ±0.05%F.S/30min |
| Output impedance | 350±3Ω | Zero balance | ≤±1.0%F.S |
| Insulation resistance | ≥2000MΩ | Recommended excitation voltage | 10V DC |
| Material | Alloy steel | Safe overload | 120%F.S |
| Protection class | IP66 | Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) |

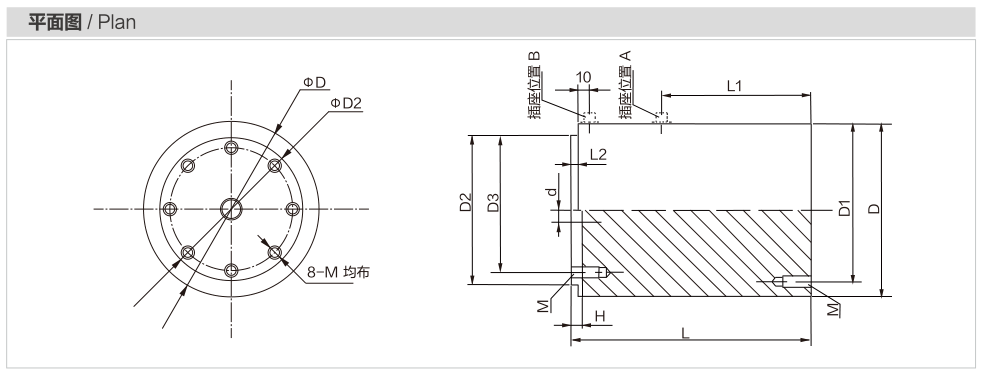

Dimension Drawing
Dimensions (mm)
| Model | Capacity (kN) | Capacity (t) | D | D1 | D2 | D3 | d | L | L1 | L2 | H | M |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MK614 | 2000 | 200 | 160 | 135 | 138 | 90 | 20 | 133 | 60 | 5 | 8 | 8-M10 |
| 3000 | 300 | 200 | 160 | 178 | 130 | 32 | 160 | 70 | ||||
| 5000 | 500 | 268 | 220 | 230 | 160 | 40 | 210 | 100 | 10 | |||
| 10000 | 1000 | 320 | – | 298 | 220 | 25 | 280 | 140 | 15 | 8-M12 |
