Overview

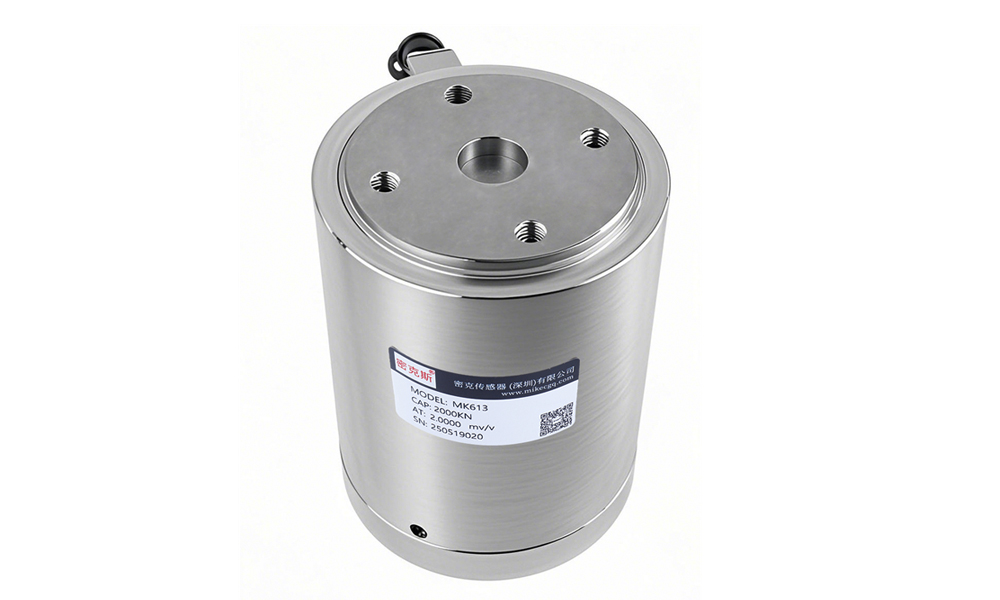

The MK613 is a column load cell built for high stability and dependable service under heavy compressive loads. Its solid construction supports accurate force and weight measurement in continuous industrial duty.
Key Features
- High accuracy (≤0.1%F.S) for precise measurement
- Alloy steel elastic element for durability and corrosion resistance
- Sealed to IP67 for reliable operation in harsh environments
- Standard output 2.0mV/V, compatible with common indicators
- Compact design for straightforward integration
Applications
Applied to force and weight measurement and control systems across industrial weighing and testing.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 1000kN(100t) 2000kN(200t) 3000kN(300t) | Comprehensive accuracy | ≤0.1%F.S |
| Temperature compensated range | -10°C~40°C | Output sensitivity | 2.0mV/V |
| Operating temperature range | -20°C~60°C | Nonlinearity | ±0.1%F.S |
| Temperature Effect on Output | <0.1%F.S/10°C | Hysteresis | ±0.1%F.S |
| Temperature Effect on Zero | <0.1%F.S/10°C | Repeatability | ±0.1%F.S |
| Input impedance | 760Ω | Creep (30 min) | ±0.05%F.S/30min |
| Output impedance | 700Ω | Zero balance | ≤±1.0%F.S |
| Insulation resistance | ≥2000MΩ | Recommended excitation voltage | 10V DC |
| Material | Alloy steel | Safe overload | 120%F.S |
| Protection class | IP67 | Limit overload | – |
| Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) | ||

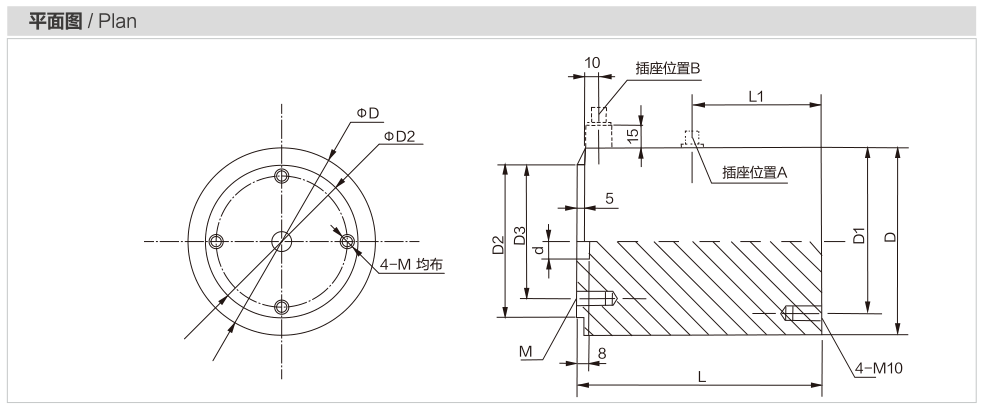

Dimension Drawing
Dimensions (mm)
| Model | Capacity (kN) | Capacity (t) | D | D1 | D2 | D3 | d | L | L1 | L2 | H | M |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MK613 | 1000 | 100 | 130 | 100 | 106 | 80 | 25 | 170 | 90 | 5 | 8 | 4-M10 |
| 2000 | 200 | |||||||||||
| 3000 | 300 | 160 | 140 | 123 | 90 | 20 | 153 | 65 |
Frequently Asked Questions
What are the typical applications of the MK613?
Applied to force and weight measurement and control systems across industrial weighing and testing.
Which indicator, transmitter or system works with the MK613?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
