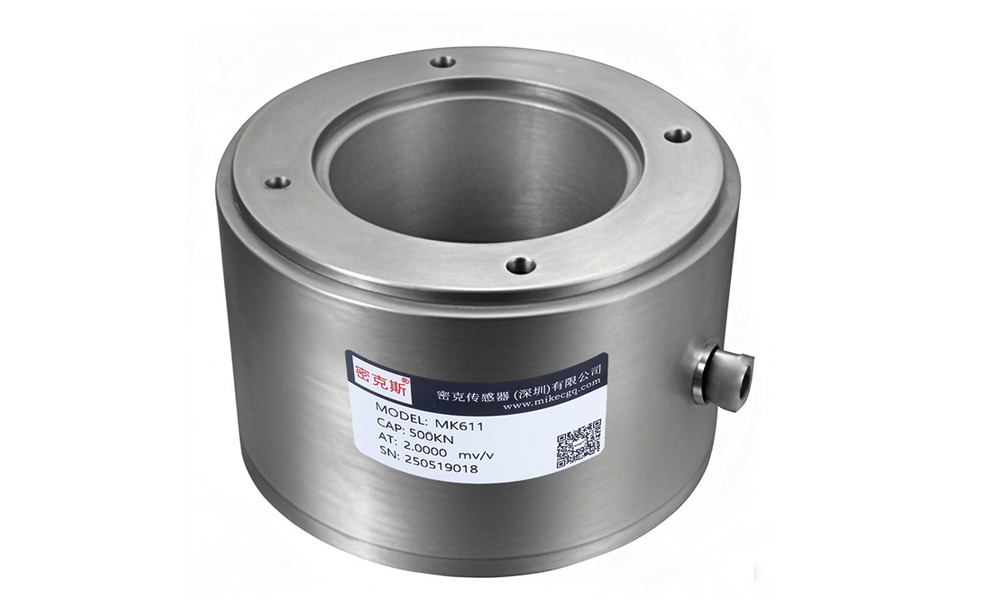

Overview
The MK611 column load cell is engineered around stability and reliability under sustained industrial loading. Its column form makes it a straightforward choice wherever force or weight must be measured and controlled as part of a larger plant system, rather than in a precision laboratory role.
Key Features
- High accuracy (≤0.5%F.S) for precise measurement
- Alloy steel elastic element for durability and corrosion resistance
- Sealed to IP66 for reliable operation in harsh environments
- Standard output 1.0–1.5mV/V, compatible with common indicators
- Compact design for straightforward integration
Applications
Specified for force and weight measurement and control systems across industrial weighing, pressing and process-monitoring duties.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 200kN(20t) 500kN(50t) 1000kN(100t) 2000kN(200t) | Comprehensive accuracy | ≤0.5%F.S |
| Temperature compensated range | -10°C~40°C | Output sensitivity | 1.0–1.5mV/V |
| Operating temperature range | -20°C~60°C | Nonlinearity | ±0.5%F.S |
| Temperature Effect on Output | <0.5%F.S/10°C | Hysteresis | ±0.5%F.S |
| Temperature Effect on Zero | <0.5%F.S/10°C | Repeatability | ±0.5%F.S |
| Input impedance | 380Ω / 760Ω | Creep (30 min) | ±0.5%F.S/30min |
| Output impedance | 350Ω / 700Ω | Zero balance | ≤±1.0%F.S |
| Insulation resistance | ≥2000MΩ | Recommended excitation voltage | 10V DC |
| Material | Alloy steel | Safe overload | 120%F.S |
| Protection class | IP66 | Limit overload | – |
| Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) | ||

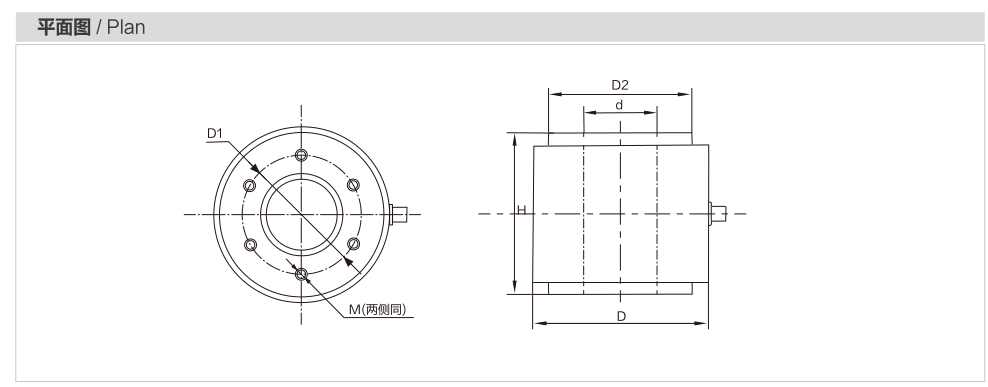

Dimension Drawing
Dimensions (mm)
| Model | Capacity (kN) | Capacity (t) | D | D1 | D2 | d | H | M |
|---|---|---|---|---|---|---|---|---|
| MK611 | 200 | 20 | 90 | 61 | 68 | 43 | 80 | 4-M6 |
| 500 | 50 | 130 | 93 | 108 | 65 | 110 | 6-M8 | |
| 1000 | 100 | 160 | 113 | 128 | 85 | 6-M12 | ||
| 2000 | 200 | 220 | 170 | 190 | 120 | 120 |
Frequently Asked Questions
What are the typical applications of the MK611?
Specified for force and weight measurement and control systems across industrial weighing, pressing and process-monitoring duties.
Which indicator, transmitter or system works with the MK611?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
