Overview

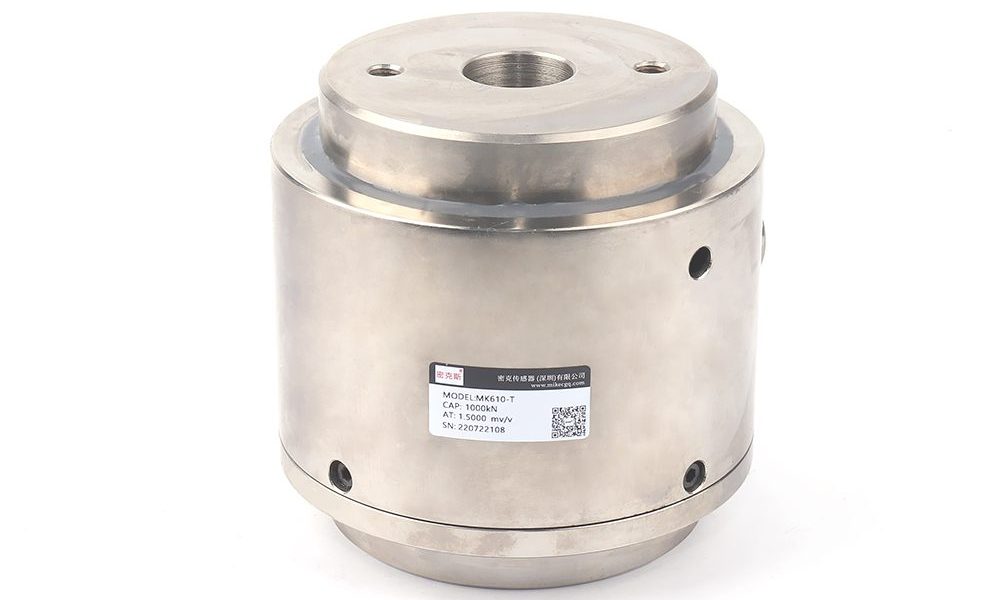

The MK610-T is a column-type load cell engineered for high stability and reliability in heavy weighing and force applications. Its robust construction supports accurate measurement and control in demanding industrial installations.
Key Features
- High accuracy (≤0.05%F.S) for precise measurement
- Alloy steel elastic element for durability and corrosion resistance
- Sealed to IP66 for reliable operation in harsh environments
- Standard output 1.5±0.02mV/V, compatible with common indicators
- Compact design for straightforward integration
Applications
Widely used in force and weight measurement and control systems across heavy-duty industrial weighing equipment.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 1000kN 100t 2000kN 200t | Comprehensive accuracy | ≤0.05%F.S |
| Temperature compensated range | -10°C~40°C | Output sensitivity | 1.5±0.02mV/V |
| Operating temperature range | -20°C~60°C | Nonlinearity | ±0.5%F.S |
| Temperature Effect on Output | <0.5%F.S/10°C | Hysteresis | ±0.5%F.S |
| Temperature Effect on Zero | <0.5%F.S/10°C | Repeatability | ±0.5%F.S |
| Input impedance | 700±20Ω | Creep (30 min) | ±0.5%F.S/30min |
| Output impedance | 706±2Ω | Zero balance | ≤±1.0%F.S |
| Insulation resistance | ≥5000MΩ | Recommended excitation voltage | 10V DC |
| Material | Alloy steel | Safe overload | 120%F.S |
| Protection class | IP66 | Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) |

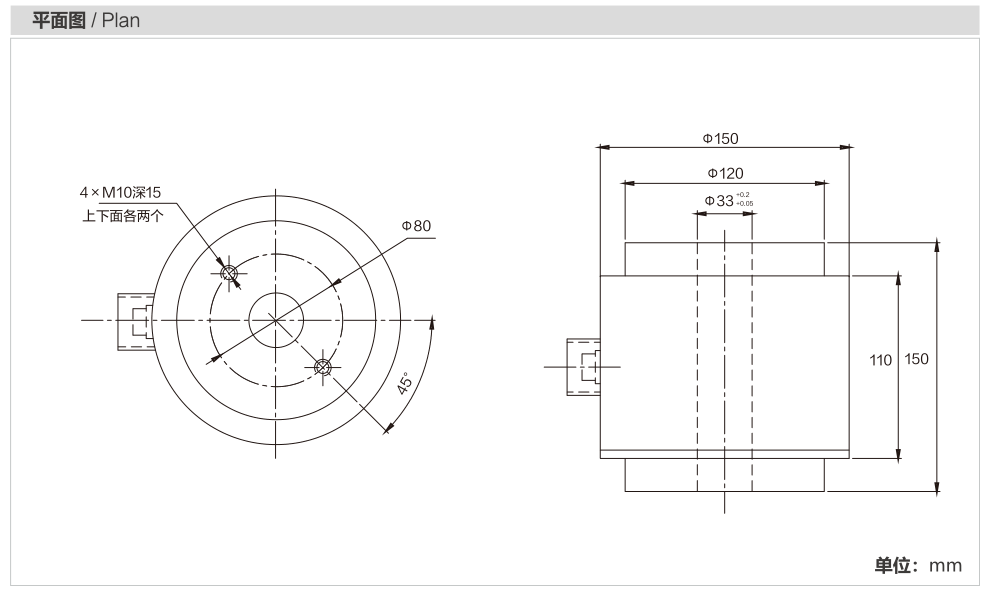

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK610-T?
Widely used in force and weight measurement and control systems across heavy-duty industrial weighing equipment.
Which indicator, transmitter or system works with the MK610-T?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
