Overview

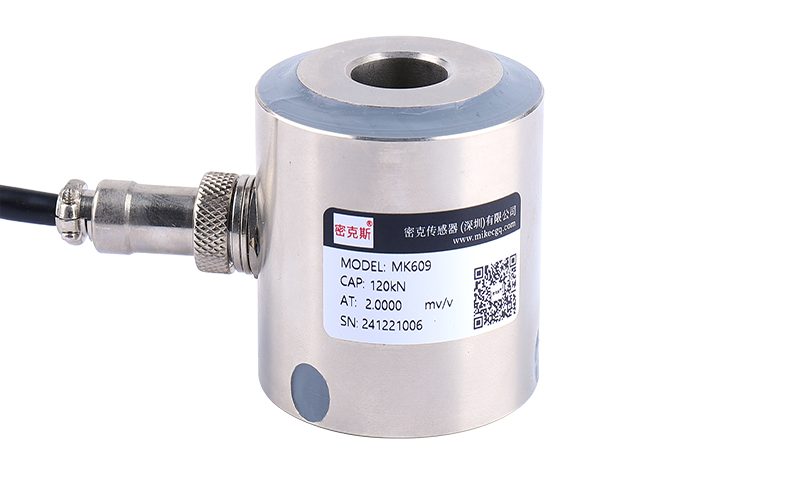

The MK609 is a column load cell that provides high stability and reliability for force and weight measurement. Its sturdy compression body is designed to give consistent output within industrial measurement and control systems, and rugged construction suits continuous, heavy-duty operation.
Key Features
- High accuracy (0.05; 0.1; 0.2; 0.3%F.S) for precise measurement
- Alloy steel elastic element for durability and corrosion resistance
- Sealed to IP66 for reliable operation in harsh environments
- Standard output 1.0–2.0±0.01mV/V, compatible with common indicators
- Compact design for straightforward integration
Applications
Deployed in force and weight measurement and in broader industrial force-measurement and control systems that need stable, reliable output.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 120kN 180kN 220kN 260kN 330kN 400kN | Comprehensive accuracy | 0.05; 0.1; 0.2; 0.3%F.S |
| Temperature compensated range | -10°C~40°C | Output sensitivity | 1.0–2.0±0.01mV/V |
| Operating temperature range | -20°C~60°C | Nonlinearity | ±0.05%F.S |
| Temperature Effect on Output | <0.02%F.S/10°C | Hysteresis | ±0.05%F.S |
| Temperature Effect on Zero | <0.02%F.S/10°C | Repeatability | ±0.05%F.S |
| Input impedance | 745±20Ω | Creep (30 min) | ±0.05%F.S/30min |
| Output impedance | 700±2Ω | Zero balance | ≤±1.0%F.S |
| Insulation resistance | ≥2000MΩ | Recommended excitation voltage | 10V DC |
| Material | Alloy steel | Safe overload | 120%F.S |
| Protection class | IP66 | Limit overload | – |
| Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) | ||

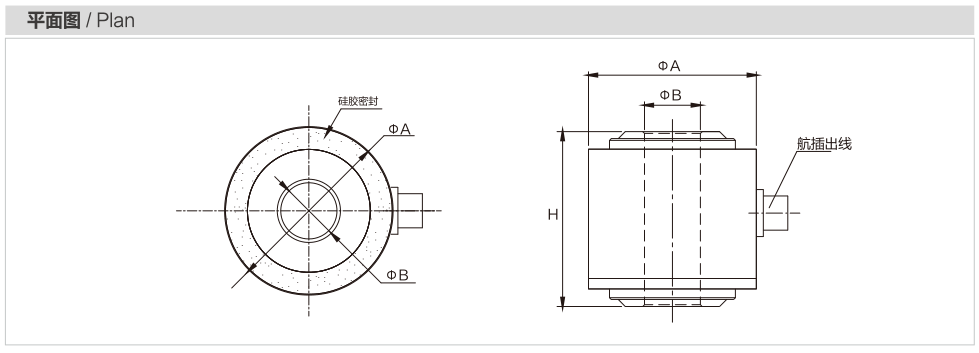

Dimension Drawing
Dimensions (mm)
| Model | Capacity (kN) | Capacity (t) | A | B | H |
|---|---|---|---|---|---|
| MK609 | 120 | 12 | 48 | 16 | 50 |
| 180 | 18 | 60 | 21 | ||
| 220 | 22 | 66 | 23 | ||
| 260 | 26 | 72 | 25 | ||
| 330 | 33 | 81 | 28 | ||
| 400 | 40 | 90 | 31 |
Frequently Asked Questions
What are the typical applications of the MK609?
Deployed in force and weight measurement and in broader industrial force-measurement and control systems that need stable, reliable output.
Which indicator, transmitter or system works with the MK609?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
