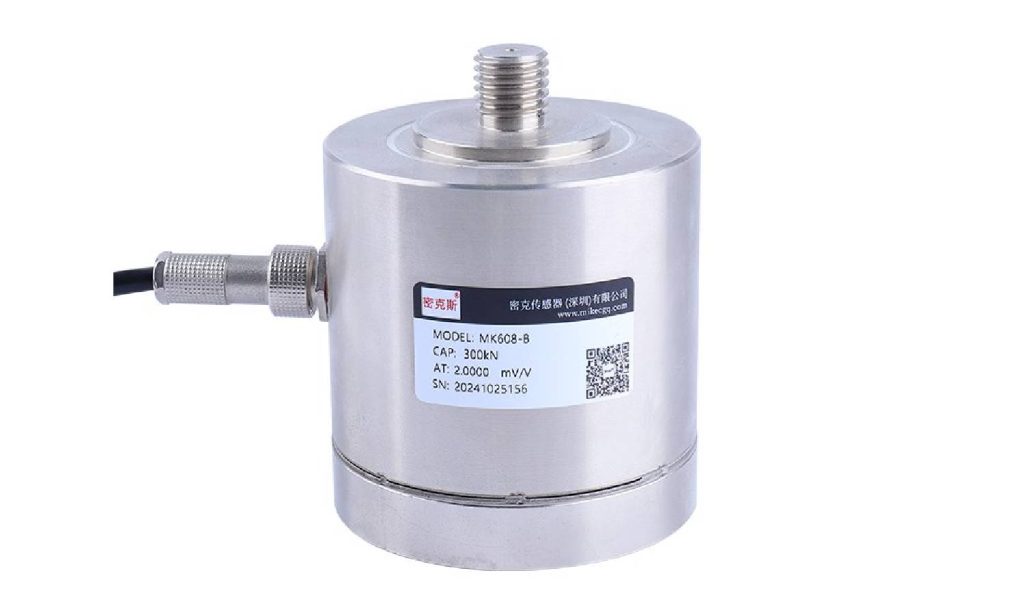

Overview
The MK608-B is a column-type load cell for force measurement on pressing and test equipment. It combines accurate, fast-responding sensing with a simple, compact structure that is easy to install and maintain, and its hard-wearing build tolerates heat, wear, corrosion and overload for a long working life in difficult plant conditions.
Key Features
- Fast response, real-time output
- Simple, compact structure
- Heat- and corrosion-resistant body
- Strong overload capacity
- High accuracy (≤0.1%F.S) for precise measurement
- Alloy steel elastic element for durability and corrosion resistance
Applications
Suited to force measurement on press-in machines, test equipment and industrial pressure-detection duties in machinery manufacturing.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 30kN(3t), 50kN(5t), 100kN(10t); 200kN(20t), 300kN(30t), 500kN(50t), 600kN(60t) | Comprehensive accuracy | ≤0.1%F.S |
| Temperature compensated range | -10°C~40°C | Output sensitivity | 1.0–1.5mV/V |
| Operating temperature range | -20°C~60°C | Nonlinearity | ±0.02%F.S |
| Temperature Effect on Output | <0.1%F.S/10°C | Hysteresis | ±0.02%F.S |
| Temperature Effect on Zero | <0.1%F.S/10°C | Repeatability | ±0.02%F.S |
| Input impedance | 380±20Ω | Creep (30 min) | ±0.10%F.S/30min |
| Output impedance | 350±3Ω | Zero balance | ≤±1.0%F.S |
| Insulation resistance | ≥2000MΩ | Recommended excitation voltage | 10V DC |
| Material | Alloy steel | Safe overload | 120%F.S |
| Protection class | IP68 | Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) |

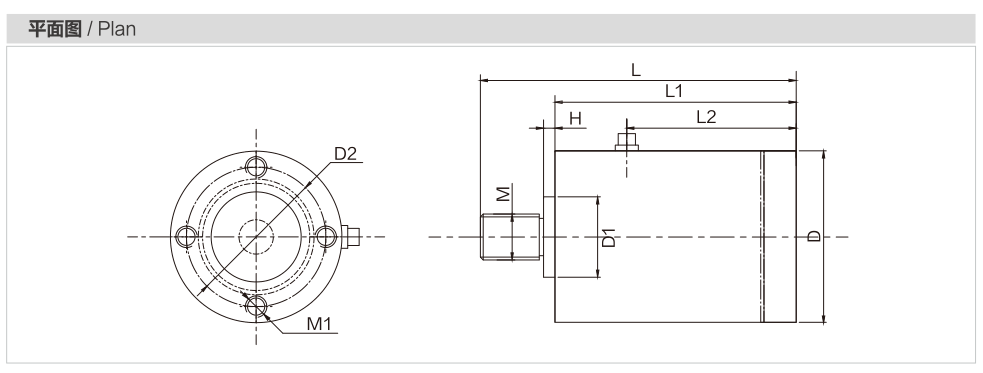

Dimension Drawing
Dimensions (mm)
| Model | Model | Capacity (kN) | Capacity (t) | D | D1 | D2 | L | L1 | L2 | H | M1 | M |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MK608 | – | 30~100 | 3~10 | 60 | 28 | 40 | 110 | 84 | 59 | 4 | 4-M8 | M16 |
| A | 200~300 | 20~30 | 70 | 48 | 50 | 131 | 100 | 7 | M30x2 | |||
| 500~600 | 50~60 | 90 | 68 | 70 | 160 | 130 | 74 | 5 | 4-M10 | M36x2 | ||
| B | 200~300 | 20~30 | 80 | 42 | 65 | 95 | 77 | 47 | 3 | 4-M8 | M16 | |
| 500~600 | 50~60 | 118 | 68 | 90 | 160 | 130 | 79 | 5 | 4-M12 | M36x2 | ||
| C | 200~300 | 20~30 | 85 | 48 | 60 | 131 | 100 | 65 | 7 | M30x2 |
Frequently Asked Questions
What are the typical applications of the MK608-B?
Suited to force measurement on press-in machines, test equipment and industrial pressure-detection duties in machinery manufacturing.
Which indicator, transmitter or system works with the MK608-B?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
