Overview

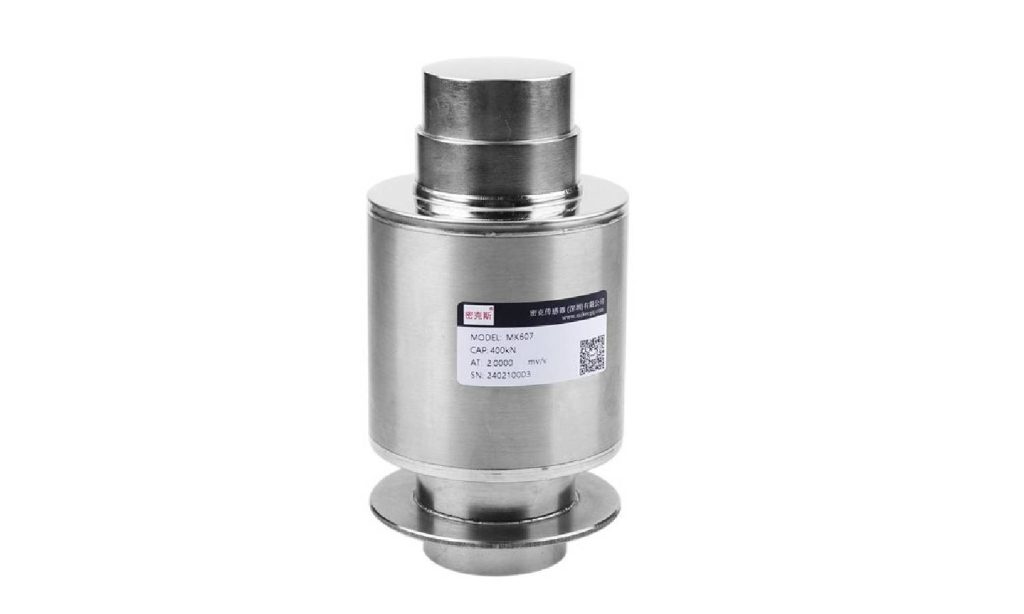

The MK607 is a column load cell in a fully sealed, double ball-head design joined by argon-arc welding to reach IP68 waterproof and dustproof protection. It works in compression with fast dynamic response and strong overload resistance, and mounts easily.
Key Features
- Sealed double ball-head, argon-welded body
- IP68 waterproof and dustproof
- Fast dynamic response, strong overload resistance
- High accuracy (0.03%F.S) for precise measurement
- Stainless steel elastic element for durability and corrosion resistance
- Sealed to IP68 for reliable operation in harsh environments
Applications
Used for electronic truck scales, dynamic rail scales and large-tonnage hopper scales.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 150 kN(15t) 200 kN(20t) 300 kN(30t) 400 kN(40t) 600 kN(60t) | Comprehensive accuracy | 0.03%F.S |
| Temperature compensated range | -10°C~40°C | Output sensitivity | 2.0±0.5%mV/V |
| Operating temperature range | -20°C~60°C | Nonlinearity | ±0.03%F.S |
| Temperature Effect on Output | <0.03%F.S/10°C | Hysteresis | ±0.03%F.S |
| Temperature Effect on Zero | <0.03%F.S/10°C | Repeatability | ±0.03%F.S |
| Input impedance | 700±20Ω | Creep (30 min) | ±0.03%F.S/30min |
| Output impedance | 706±3Ω | Zero balance | ≤±1.0%F.S |
| Insulation resistance | ≥5000MΩ | Recommended excitation voltage | 10V DC |
| Material | Stainless steel | Safe overload | 120%F.S |
| Protection class | IP68 | Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) |

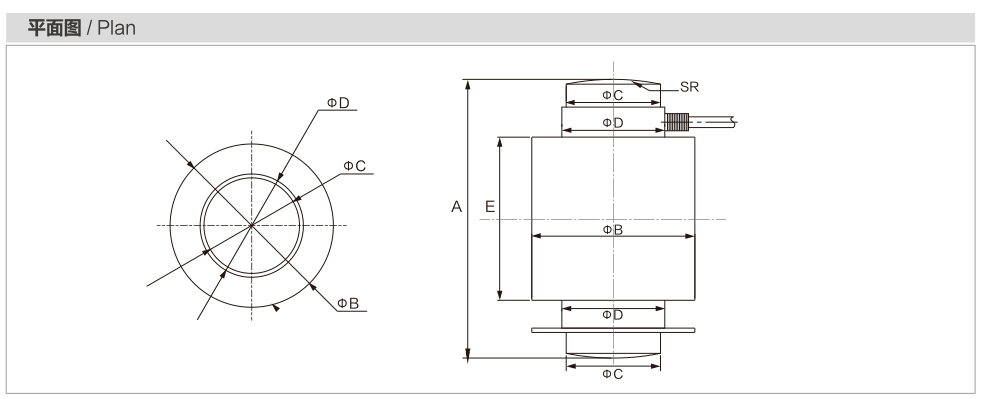

Dimension Drawing
Dimensions (mm)
| Model | Capacity (kN) | Capacity (t) | A | B | C | D | E | SR |
|---|---|---|---|---|---|---|---|---|
| MK607 | 150 | 15 | 130 | 76.1 | 44 | 48 | 76.1 | 110 |
| 200 | 20 | 150 | 130 | |||||
| 300 | 30 | 160 | ||||||
| 400 | 40 | 180 | ||||||
| 600 | 60 | 210 | 220 |
Frequently Asked Questions
What are the typical applications of the MK607?
Used for electronic truck scales, dynamic rail scales and large-tonnage hopper scales.
Which indicator, transmitter or system works with the MK607?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
