Overview

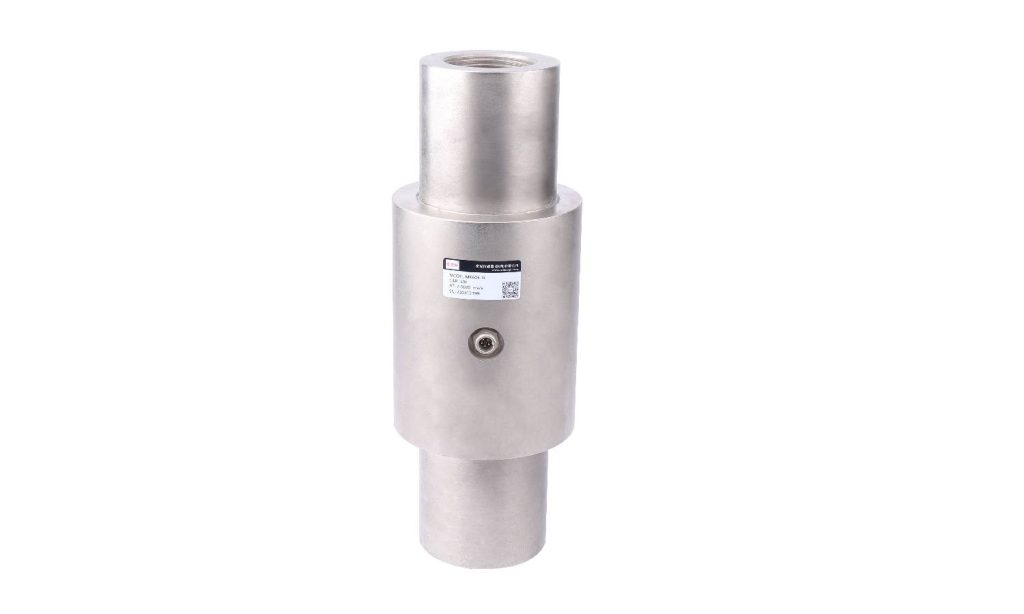

The MK606-N is a column load cell whose elastic element gives excellent tension-compression symmetry. Sealed for stability, it offers high accuracy and reliability together with strong resistance to shock, overload and torsion, so it holds up where impacts, overloads and twisting forces are part of daily duty.
Key Features
- High accuracy (≤0.05%F.S(<100t) ≤0.10%F.S(≥100t)) for precise measurement
- Alloy steel elastic element for durability and corrosion resistance
- Sealed to IP67 / IP68 for reliable operation in harsh environments
- Standard output 1.5-2.5mV/V, compatible with common indicators
- Compact design for straightforward integration
Applications
Electronic batching scales, pit-mounted truck scales and weighbridges, and hopper scales across industrial weighing equipment.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 150kg, 200kg, 300kg, 500kg, 1t, 2t, 3t, 6t, 10t, 15t, 20t, 30t, 50t, 60t, 100t, 150t, 200t | Comprehensive accuracy | ≤0.05%F.S(<100t) ≤0.10%F.S(≥100t) |
| Temperature compensated range | -10°C~40°C | Output sensitivity | 1.5-2.5mV/V |
| Operating temperature range | -20°C~60°C | Nonlinearity | ±0.03%F.S |
| Temperature Effect on Output | <0.03%F.S/10°C | Hysteresis | ±0.03%F.S |
| Temperature Effect on Zero | <0.03%F.S/10°C | Repeatability | ±0.03%F.S |
| Input impedance | 380±10Ω or 750±15Ω | Creep (30 min) | ±0.03%F.S/30min |
| Output impedance | 350±3Ω or 700±5Ω | Zero balance | ≤±1.0%F.S |
| Insulation resistance | ≥2000MΩ | Recommended excitation voltage | 10V DC |
| Material | Alloy steel | Safe overload | 120%F.S |
| Protection class | IP67 / IP68 | Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) |

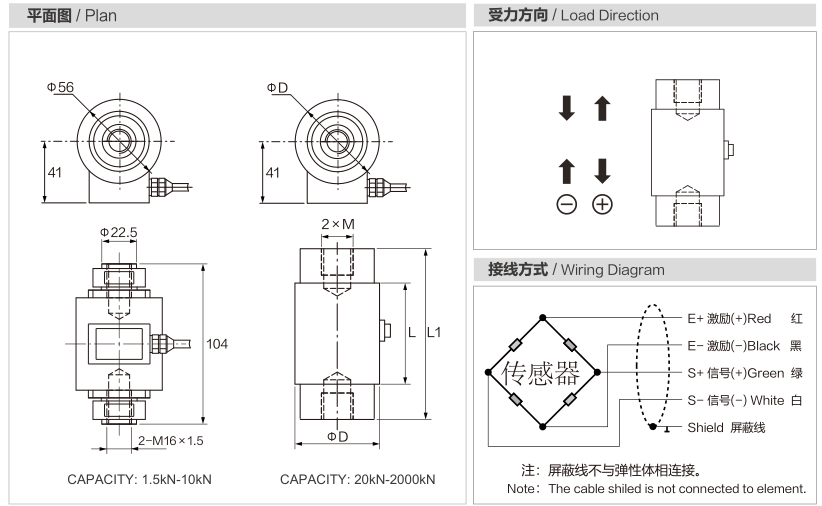

Dimension Drawing
Dimensions (mm)
| Model | Capacity (kN) | Capacity (t) | D | L | L1 | M |
|---|---|---|---|---|---|---|
| MK606-N | 20~30 | 2~3 | 64 | 72 | 124 | M24x3 |
| 40~60 | 4~6 | 74 | 124 | 180 | M30x2 | |
| 100 | 10 | 86 | 84 | 160 | M36x3 | |
| 150~200 | 15~20 | 126 | 200 | M42x3 | ||
| 300 | 30 | 98 | 132 | 230 | M48x3 | |
| 400 | 40 | 105 | 137 | 250 | ||
| 500 | 50 | 118 | 175 | 320 | M56x3 | |
| 1000 | 100 | M72x3 | ||||
| 1500~2000 | 150~200 | 165 | 200 | 400 | M90x6 |
Frequently Asked Questions
What are the typical applications of the MK606-N?
Electronic batching scales, pit-mounted truck scales and weighbridges, and hopper scales across industrial weighing equipment.
Which indicator, transmitter or system works with the MK606-N?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
