Overview

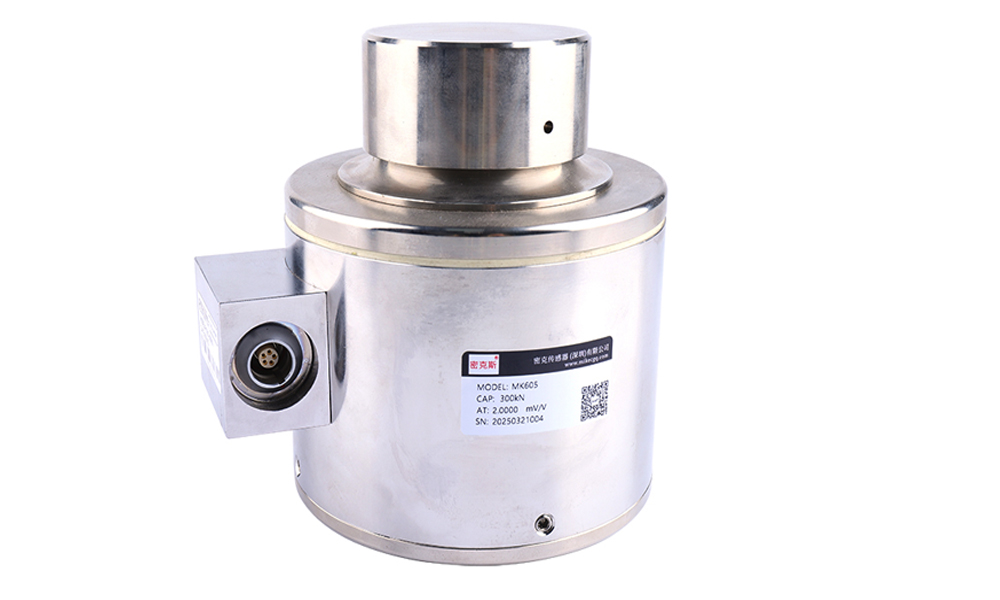

A fully sealed column cell, argon-arc welded shut, the MK605 meets IP68 water and dust protection for outdoor and washdown service. Load enters through a top spherical bearing in compression, giving quick dynamic response, firm overload resistance and easy installation on multi-cell platforms.
Key Features
- High accuracy (≤0.05%F.S) for precise measurement
- Alloy steel / Stainless steel elastic element for durability and corrosion resistance
- Sealed to IP67 for reliable operation in harsh environments
- Standard output ≤2.0mV/V, compatible with common indicators
- Compact design for straightforward integration
Applications
Built for electronic truck scales, dynamic rail scales and very large tonnage hopper weighing installations.
| Technical Parameters | |||
|---|---|---|---|
| MK605-A Rated capacity | 100N; 500N, 1kN, 2kN, 3kN, 5kN;10kN, 20kN; 50kN | MK605-B Rated capacity | 5kN, 10kN, 20kN, 30kN; 50kN, 100kN,150kN; 300kN; 600kN; 1000kN |
| MK605-C Rated capacity | 600kN, 1000kN, 2000kN, 3000kN,5000kN, 10MN, 20MN, 50MN | Output Sensitivity | ≤2.0mV/V |
| Nonlinearity | ≤0.05%F.S | Hysteresis | ≤0.03%F.S |
| Repeatability | ≤0.03%F.S | Creep (30 min) | ≤0.03%F.S/30min |
| Zero balance | ±0.005mV/V | Recommended excitation voltage | 10V |
| Safe overload | 120%F.S | Compensation temperature range | -10°C~40°C |
| Operating temperature range | -20°C~60°C | Temperature Effect on Output | ≤0.05%F.S./10°C |
| Temperature Effect on Zero | ≤0.05%F.S./10°C | Input impedance | See official website for details |
| Output impedance | See official website for details | Insulation resistance | ≥5000MΩ / 100VDC |
| Material | Alloy steel / Stainless steel | Protection class | IP67 |
| Cable size | Φ5.4x4m | Wiring methods | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) |

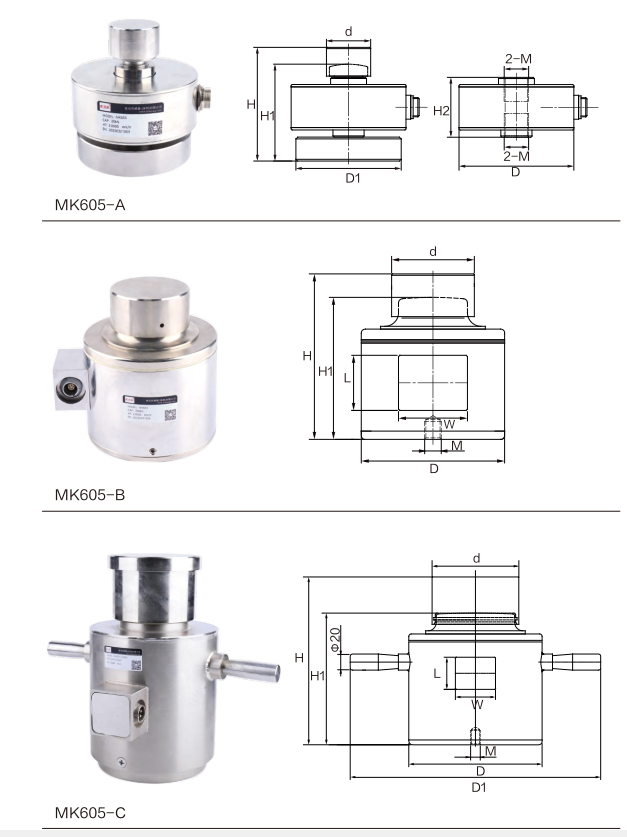

Dimension Drawing
Dimensions (mm)
| Model | Capacity (kN) | Capacity (t) | D | D1 | d | H | H1 | H2 | L | W | M |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MK605 – A | 0.1 | 0.01 | 80 | 68 | 25 | 69 | 61 | 46 | − | − | M8 |
| 0.5~5 | 0.05~0.5 | 29 | 81 | 64 | M10 | ||||||
| 10~20 | 1~2 | 96 | 88 | 37 | 95 | 81 | 50 | M20x1.5 | |||
| 50 | 5 | 104 | 41 | 108 | 95 | 60 | M24x2.0 | ||||
| MK605 – B | 5~30 | 0.5~3 | 76 | − | 50 | 97 | 87 | − | 40 | 50 | M10 |
| 50~150 | 5~15 | 104 | 60 | 103 | 61 | M12 | |||||
| 300 | 30 | 120 | 70 | 140 | 120 | ||||||
| 600 | 60 | 138 | 84 | 176 | 141 | ||||||
| 1000 | 100 | 166 | 96 | 209 | 164 | ||||||
| MK605 – C | 600 | 60 | 138 | 284 | 84 | 176 | 141 | ||||
| 1000 | 100 | 166 | 312 | 108 | 209 | 164 | |||||
| 2000 | 200 | 190 | 336 | 132 | 228 | 178 | |||||
| 3000 | 300 | 159 | 305 | 115 | 210 | 160 | 4−M10 | ||||
| 5000 | 500 | 186 | 332 | 152 | 250 | 190 | |||||
| 10MN | 1000 | 260 | 406 | 210 | 350 | 260 | 4−M16 | ||||
| 20MN | 2000 | 392 | 538 | 298 | 450 | 320 | |||||
| Dimensions , | Dimensions , | Dimensions , | Dimensions , | Dimensions , | Dimensions , | Dimensions , | Dimensions , | Dimensions , | Dimensions , | Dimensions , | Dimensions , |
Frequently Asked Questions
What are the typical applications of the MK605?
Built for electronic truck scales, dynamic rail scales and very large tonnage hopper weighing installations.
Which indicator, transmitter or system works with the MK605?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
