Overview

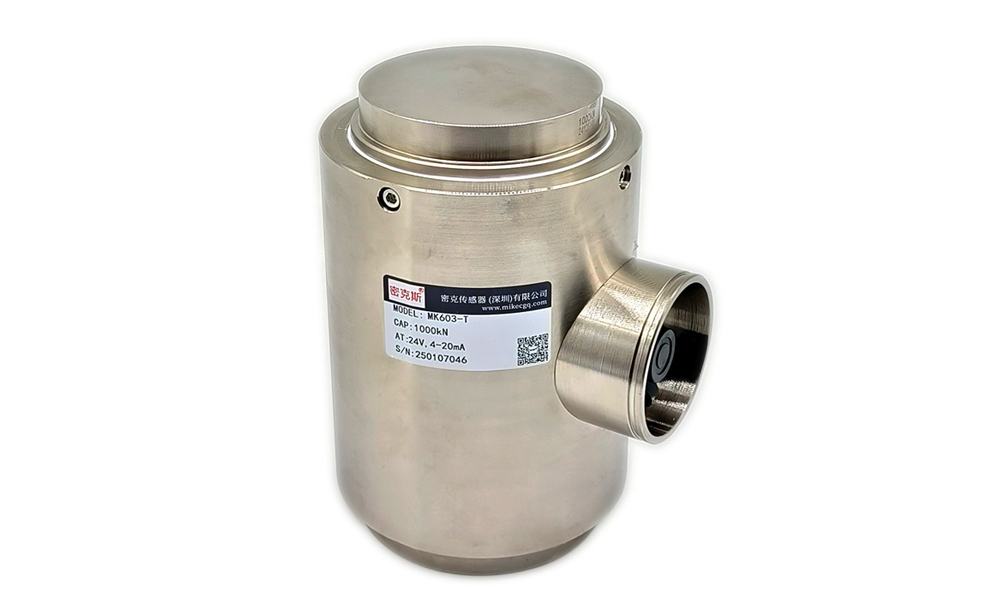

The MK603 is a column load cell with a broad capacity range and strong overload resistance for large-tonnage weighing. Its rugged compression design holds stable, accurate output in harsh industrial duty, and high overload tolerance protects the sensor under shock and side loading on heavy structures.
Key Features
- Wide capacity range, strong overload resistance
- Stable output for large-tonnage weighing
- Rugged build for harsh industrial sites
- High accuracy (0.05~0.1%F.S) for precise measurement
- Alloy steel elastic element for durability and corrosion resistance
- Sealed to IP67 for reliable operation in harsh environments
Applications
Used for heavy-duty measurement on electronic truck and rail scales, storage and tank scales, and in pharmaceutical, chemical, coal, and metallurgical plants.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 100kN(10t) 200kN(20t) 300kN(30t) 500kN(50t) 1000kN(100t) 2000kN(200t) | Comprehensive accuracy | 0.05~0.1%F.S |
| Temperature compensated range | -10°C~40°C | Output sensitivity | 2.0 ± 0.01mV/V |
| Operating temperature range | -20°C~60°C | Nonlinearity | ±0.05%F.S |
| Temperature Effect on Output | <0.03%F.S/10°C | Hysteresis | ±0.05%F.S |
| Temperature Effect on Zero | <0.03%F.S/10°C | Repeatability | ±0.05%F.S |
| Input impedance | 380±10Ω | Creep (30 min) | ±0.05%F.S/30min |
| Output impedance | 351±3Ω | Zero balance | ≤±1.0%F.S |
| Insulation resistance | ≥5000MΩ | Recommended excitation voltage | 10V DC |
| Material | Alloy steel | Safe overload | 120%F.S |
| Protection class | IP67 | Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) |

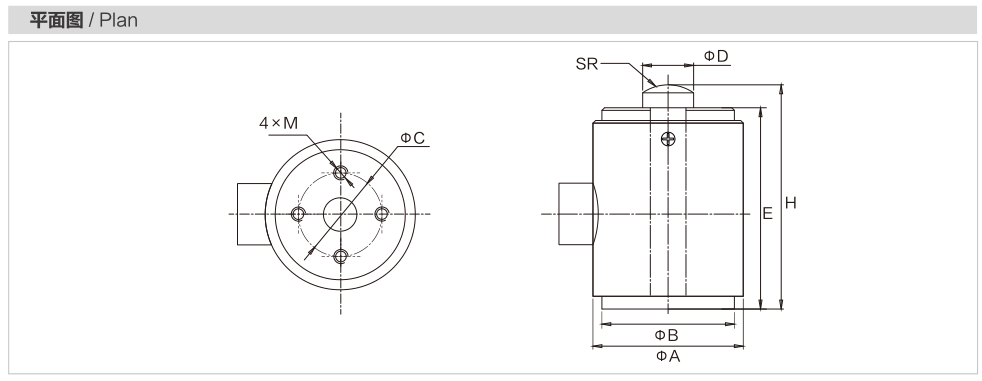

Dimension Drawing
Dimensions (mm)
| Model | Capacity (kN) | Capacity (t) | A | B | C | D | E | H | M | SR |
|---|---|---|---|---|---|---|---|---|---|---|
| MK603 | 70~100 | 7~10 | 86 | 78 | 56 | 32 | 120 | 130 | M8 | 85 |
| 150~300 | 15~30 | 73.5 | 40 | 129 | 140 | M10 | 200 | |||
| 400~600 | 40~60 | 100 | 87 | 68 | 80 | 133 | 150 | M12 | 350 | |
| 1000 | 100 | 107 | 91 | 156 | 170 | M16 | 500 | |||
| 1500~2000 | 150~200 | 158 | 139 | 100 | 120 | 201 | 220 | 1000 | ||
| 3000 | 300 | 178 | 159 | 120 | 140 | 226 | 245 |
Frequently Asked Questions
What are the typical applications of the MK603?
Used for heavy-duty measurement on electronic truck and rail scales, storage and tank scales, and in pharmaceutical, chemical, coal, and metallurgical plants.
Which indicator, transmitter or system works with the MK603?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
