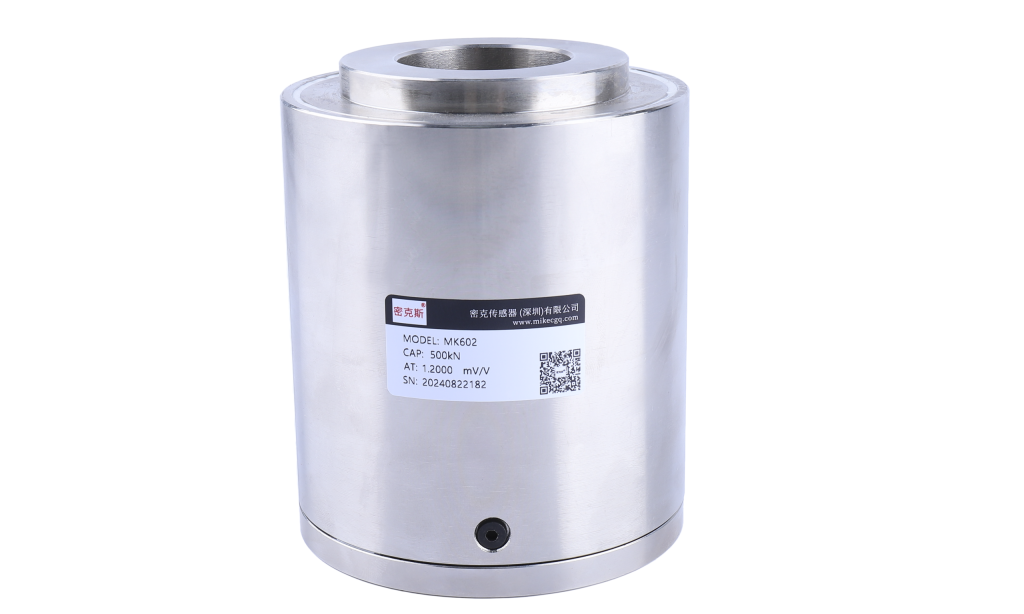

Overview
The MK602 is a cylindrical side-pull load cell that combines high measurement accuracy with simple installation and effective resistance to moisture. Designed for dependable force measurement, it holds consistent readings in damp environments and integrates easily into testing equipment and similar force-measuring rigs.
Key Features
- High accuracy, simple installation
- Good moisture resistance
- High accuracy (1%F.S) for precise measurement
- Alloy steel elastic element for durability and corrosion resistance
- Sealed to − for reliable operation in harsh environments
- Standard output >1.0mV/V, compatible with common indicators
Applications
Intended primarily for force measurement on material testing machines and comparable test rigs.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 100kN/10t 200kN/20t 300kN/30t 500kN/50t 600kN/60t 1000kN/100t | Comprehensive accuracy | 1%F.S |
| Temperature compensated range | -10°C~40°C | Output sensitivity | >1.0mV/V |
| Operating temperature range | -20°C~60°C | Nonlinearity | ≤1%F.S |
| Temperature Effect on Output | <0.3%F.S/10°C | Hysteresis | ≤1%F.S |
| Temperature Effect on Zero | <0.3%F.S/10°C | Repeatability | ≤0.5%F.S |
| Input impedance | 700Ω | Creep (30 min) | ±0.5%F.S/30min |
| Output impedance | 700Ω | Zero balance | ≤±0.1%F.S |
| Insulation resistance | ≥2000MΩ | Recommended excitation voltage | 10V DC |
| Material | Alloy steel | Safe overload | 120%F.S |
| Protection class | − | Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) |

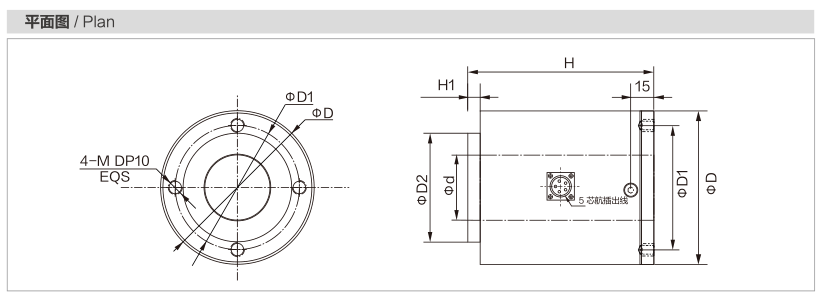

Dimension Drawing
Dimensions (mm)
| Model | Capacity (kN) | Capacity (t) | D | D1 | D2 | d | H | H1 | M |
|---|---|---|---|---|---|---|---|---|---|
| MK602 | 100 | 10 | 65 | − | 45 | Φ27 | 80 | − | − |
| 200 | 20 | 77 | 52 | Φ34 | 100 | ||||
| 300 | 30 | 90 | 65 | Φ45 | 120 | ||||
| 500 | 50 | 99 | 80 | 70 | Φ42 | 8 | 4xM8 10 | ||
| 600 | 60 | 106 | − | 80 | Φ60 | 130 | − | − | |
| 1000 | 100 | 138 | 117 | Φ90 | 175 |
Frequently Asked Questions
What are the typical applications of the MK602?
Intended primarily for force measurement on material testing machines and comparable test rigs.
Which indicator, transmitter or system works with the MK602?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
