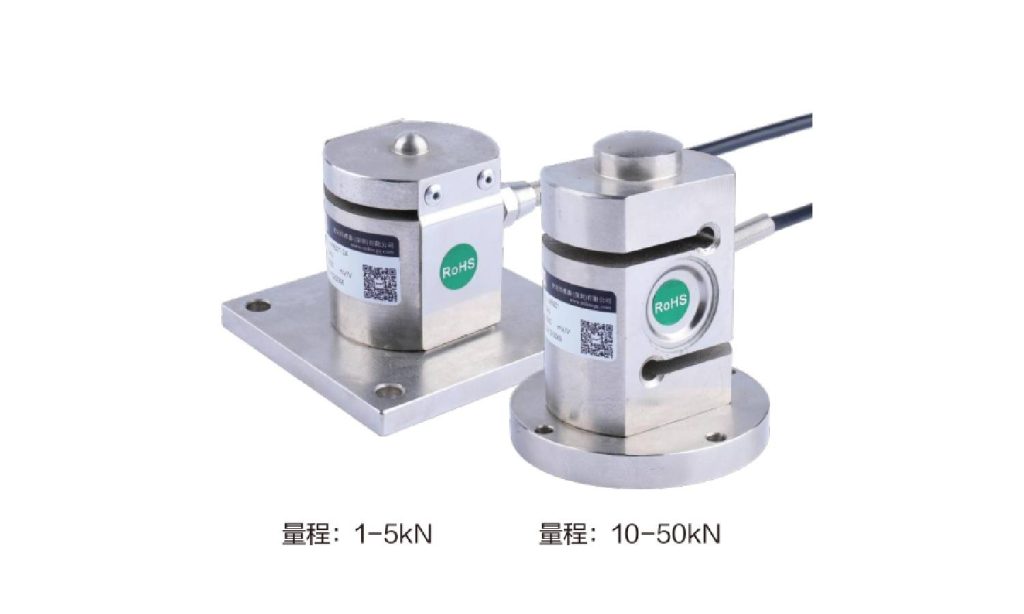

Overview
The MK601 is a column load cell offering high accuracy, good moisture resistance and simple installation. It gives stable readings for routine industrial weighing tasks.
Key Features
- High accuracy (≤0.05%F.S) for precise measurement
- Alloy steel elastic element for durability and corrosion resistance
- Sealed to IP66 for reliable operation in harsh environments
- Standard output 2.0 ± 0.2%mV/V, compatible with common indicators
- Compact design for straightforward integration
Applications
Suited to belt-conveyor scales and packaging scales.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 1kN 1.5kN 2kN 3kN 5kN 10kN 20kN 30kN 50kN | Comprehensive accuracy | ≤0.05%F.S |
| Temperature compensated range | -10°C~40°C | Output sensitivity | 2.0 ± 0.2%mV/V |
| Operating temperature range | -20°C~60°C | Nonlinearity | ±0.05%F.S |
| Temperature Effect on Output | <0.05%F.S/10°C | Hysteresis | ±0.05%F.S |
| Temperature Effect on Zero | <0.05%F.S/10°C | Repeatability | ±0.05%F.S |
| Input impedance | 380±10Ω | Creep (30 min) | ±0.05%F.S/30min |
| Output impedance | 350±3Ω | Zero balance | ≤±1%F.S |
| Insulation resistance | ≥5000MΩ | Recommended excitation voltage | 10V DC |
| Material | Alloy steel | Safe overload | 120%F.S |
| Protection class | IP66 | Safe overload | − |
| Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) | ||

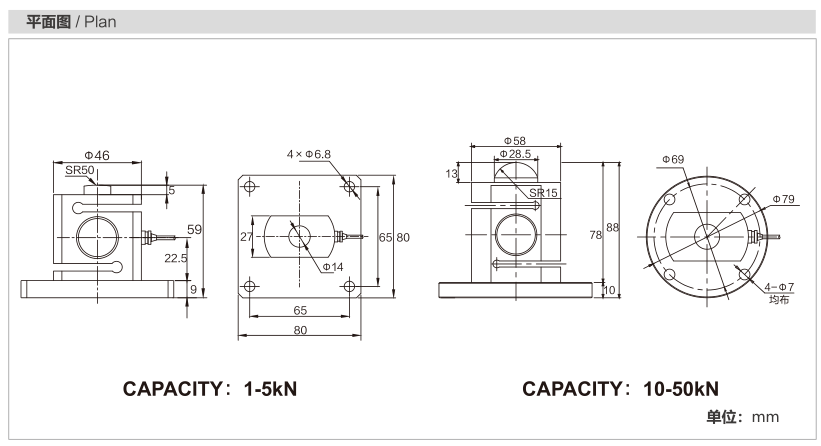

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK601?
Suited to belt-conveyor scales and packaging scales.
Which indicator, transmitter or system works with the MK601?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
