Overview

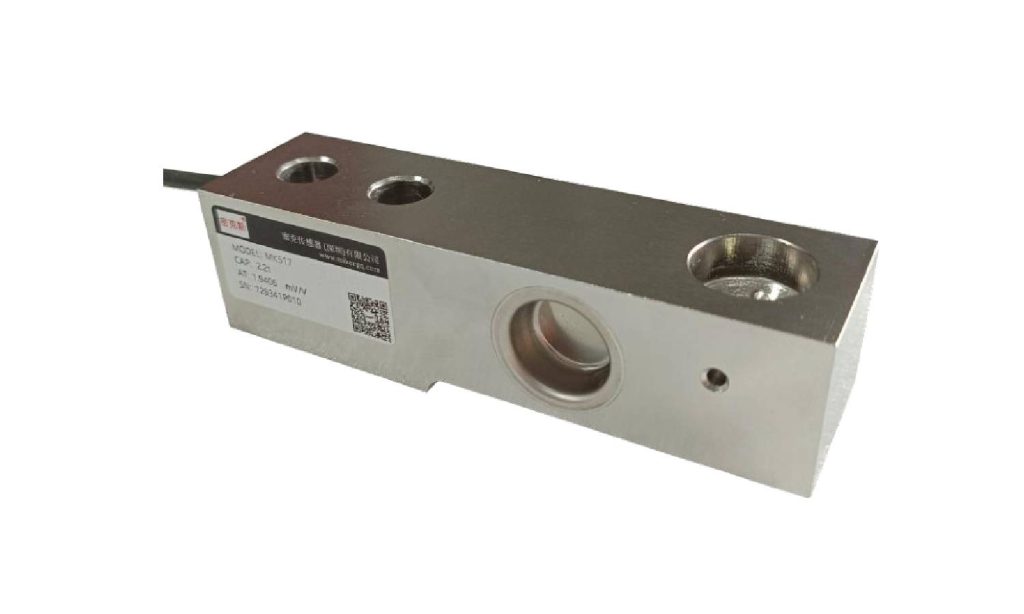

The MK517 is a stainless-steel cantilever beam load cell with a low mounting height, high overall accuracy and a self-stabilising design that holds its calibration over the long term. Its nickel-plated body resists corrosion in busy plant environments, making it a dependable choice for continuous industrial weighing.
Key Features
- High accuracy (≤0.02%F.S) for precise measurement
- 17-4 stainless steel elastic element for durability and corrosion resistance
- Sealed to IP68 for reliable operation in harsh environments
- Standard output 1.94 ± 0.02%mV/V, compatible with common indicators
- Compact design for straightforward integration
Applications
Widely used in batching and dosing scales, hopper scales, packaging scales, platform scales and concrete batching plants.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 220kg, 550kg, 1100kg, 2200kg, 4400kg | Output sensitivity | 1.94 ± 0.02%mV/V |
| Temperature compensated range | -10°C~40°C | Nonlinearity | ≤0.02%F.S |
| Operating temperature range | -20°C~60°C | Hysteresis | ≤0.02%F.S |
| Temperature Effect on Output | <0.03%F.S/10°C | Repeatability | ≤0.01%F.S |
| Temperature Effect on Zero | <0.03%F.S/10°C | Creep (30 min) | ≤0.02%F.S/30min |
| Input impedance | 384 ± 10Ω | Zero balance | ≤±1.0%F.S |
| Output impedance | 350 ± 2Ω | Recommended excitation voltage | 5~15V (DC) |
| Insulation resistance | ≥5000MΩ / 50VDC | Safe overload | 120%F.S |
| Material | 17-4 stainless steel | Limit overload | — |
| Protection class | IP68 | Cable connection | Green: Excitation + (E+), Black: Excitation – (E-); White: Signal + (S+), Red: Signal – (S-) |

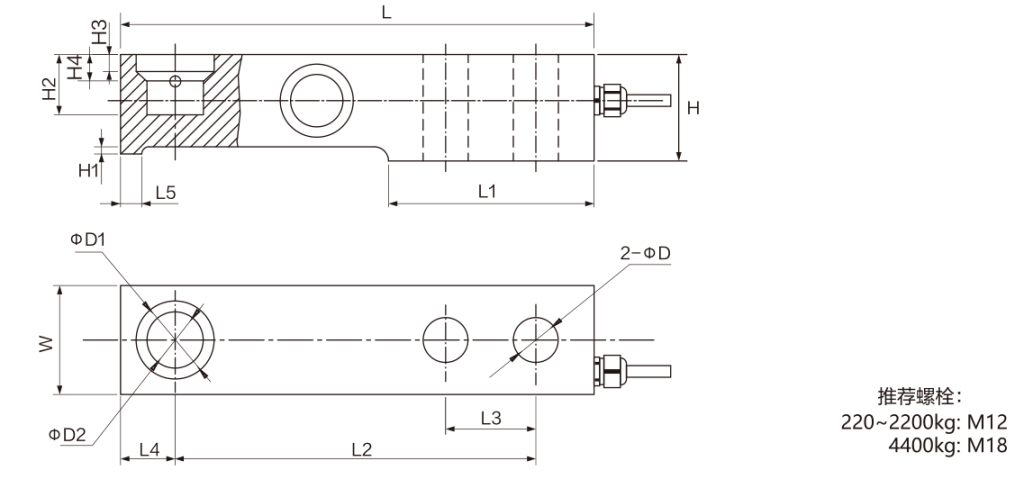

Dimension Drawing
Dimensions (mm)
| Model | Capacity (kN) | Capacity (t) | D | D1 | D2 | H | H1 | H2 | H3 | H4 | L | L1 | L2 | L3 | L4 | L5 | W |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MK517 | 2.2~11 | 0.22~1.1 | 13 | 22.2 | 15.9 | 30.2 | 1.8 | 17.3 | 4.5 | 7.9 | 133.4 | 57.7 | 101.6 | 25.4 | 15.4 | 6.4 | 30.7 |
| 22 | 2.2 | 36.6 | 2.5 | 22.9 | 9.2 | 12.7 | 136.7 | 57.9 | 18.4 | – | 36.8 | ||||||
| 44 | 4.4 | 19.3 | 34.9 | 22.2 | 42.9 | 2.4 | 29.3 | 10.8 | 17.8 | 171.5 | 73.8 | 133.3 | 38.1 | 21.4 | 42.9 |
Frequently Asked Questions
What are the typical applications of the MK517?
Widely used in batching and dosing scales, hopper scales, packaging scales, platform scales and concrete batching plants.
Which indicator, transmitter or system works with the MK517?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
