Overview

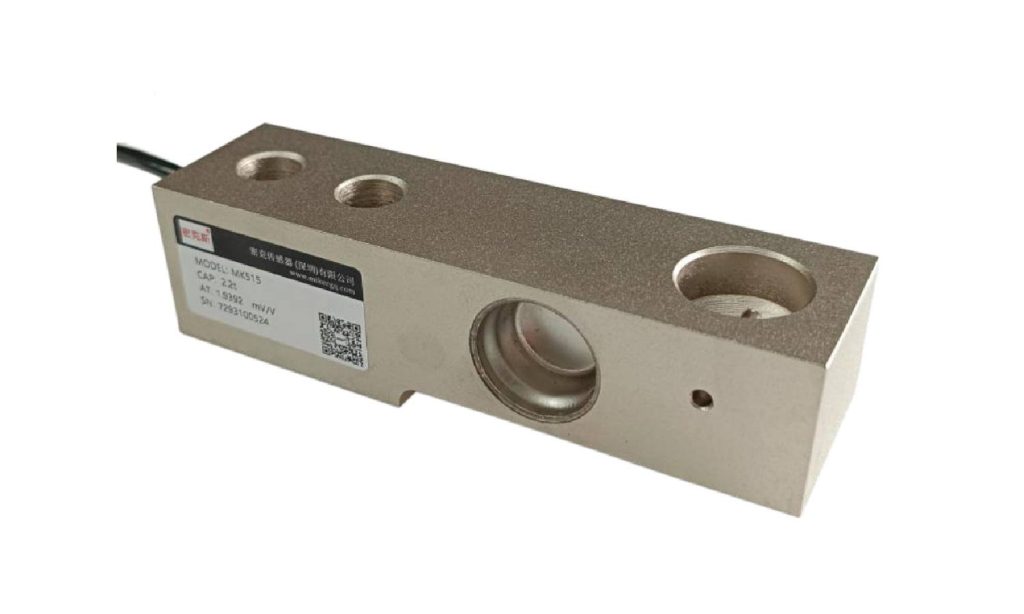

Built from stainless steel with a nickel-plated finish, the MK515 cantilever beam load cell pairs a slim, low-profile height with high overall accuracy and a self-stabilising structure. It holds long-term stability through continuous service and suits space-limited weighing platforms in busy industrial sites.
Key Features
- High accuracy (≤0.02%F.S) for precise measurement
- Alloy steel elastic element for durability and corrosion resistance
- Sealed to IP68 for reliable operation in harsh environments
- Standard output 1.94 ± 0.02%mV/V, compatible with common indicators
- Compact design for straightforward integration
Applications
Used in batching and dosing scales, hopper and packaging scales, material mixers and platform scales, including concrete mixing plants.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 110kg, 220kg, 550kg, 1100kg, 2200kg, 4400kg | Output sensitivity | 1.94 ± 0.02%mV/V |
| Temperature compensated range | -10°C~40°C | Nonlinearity | ≤0.02%F.S |
| Operating temperature range | -20°C~60°C | Hysteresis | ≤0.02%F.S |
| Temperature Effect on Output | <0.02%F.S/10°C | Repeatability | ≤0.01%F.S |
| Temperature Effect on Zero | <0.02%F.S/10°C | Creep (30 min) | ≤0.02%F.S/30min |
| Input impedance | 382 ± 4Ω | Zero balance | ≤±1.0%F.S |
| Output impedance | 350 ± 1Ω | Recommended excitation voltage | 5~15V (DC) |
| Insulation resistance | ≥5000MΩ / 50VDC | Safe overload | 120%F.S |
| Material | Alloy steel | Limit overload | — |
| Protection class | IP68 | Cable connection | Green: Excitation + (E+), Black: Excitation – (E-); White: Signal + (S+), Red: Signal – (S-) |

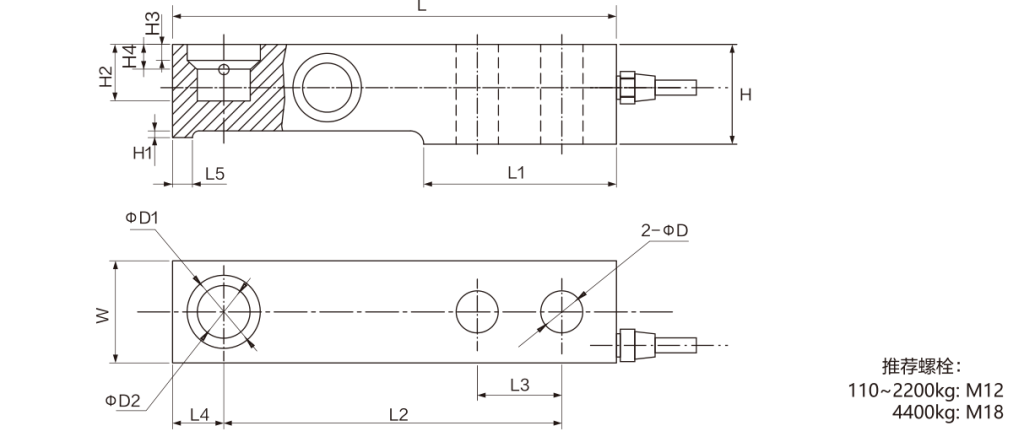

Dimension Drawing
Dimensions (mm)
| Model | Capacity (kN) | Capacity (t) | D | D1 | D2 | H | H1 | H2 | H3 | H4 | L | L1 | L2 | L3 | L4 | L5 | W |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MK515 | 1.1~11 | 0.11~1.1 | 13.0 | 22.2 | 15.9 | 30.2 | 1.8 | 17.3 | 4.8 | 7.9 | 133.4 | 57.7 | 101.6 | 25.4 | 15.4 | 6.4 | 30.7 |
| 22 | 2.2 | 36.6 | 6.0 | 22.9 | 9.5 | 12.7 | 136.7 | 57.9 | 18.4 | – | 36.8 | ||||||
| 44 | 4.4 | 19.3 | 34.9 | 22.2 | 42.9 | 4.5 | 29.3 | 10.8 | 17.8 | 171.5 | 73.8 | 133.3 | 38.1 | 21.4 | 42.9 |
Frequently Asked Questions
What are the typical applications of the MK515?
Used in batching and dosing scales, hopper and packaging scales, material mixers and platform scales, including concrete mixing plants.
Which indicator, transmitter or system works with the MK515?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
