Overview

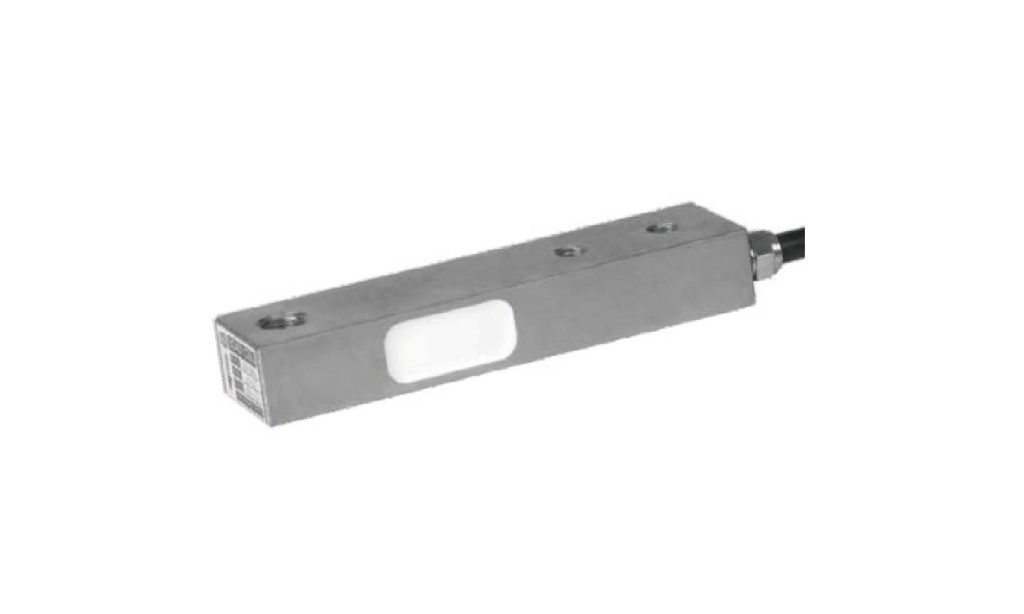

Built for continuous industrial weighing, the MK514 is a low-height cantilever-beam load cell machined from stainless steel with a nickel-plated finish. A self-stabilising elastic structure resists corrosion and maintains high combined accuracy and long-term stability, so output stays dependable through repeated duty cycles.
Key Features
- High accuracy (B) for precise measurement
- Stainless steel elastic element for durability and corrosion resistance
- Sealed to IP66 for reliable operation in harsh environments
- Standard output 2.0 ± 0.25%mV/V, compatible with common indicators
- Compact design for straightforward integration
Applications
A good match for batching and dosing scales, hopper and packaging scales, platform scales, batching machines, and concrete-batching plants.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 2kN / 200kg 5kN / 500kg 10kN / 1000kg | Comprehensive accuracy | B |
| Temperature compensated range | -10°C~40°C | Output sensitivity | 2.0 ± 0.25%mV/V |
| Operating temperature range | -20°C~60°C | Nonlinearity | ±0.03%F.S |
| Temperature Effect on Output | <0.05%F.S/10°C | Hysteresis | ±0.03%F.S |
| Temperature Effect on Zero | <0.05%F.S/10°C | Repeatability | ±0.03%F.S |
| Input impedance | 385±10Ω | Creep (30 min) | ±0.05%F.S/30min |
| Output impedance | 350±3Ω | Zero balance | ≤±2%F.S |
| Insulation resistance | ≥2000MΩ 50VDC | Recommended excitation voltage | 5 12V DC |
| Material | Stainless steel | Safe overload | 120%F.S |
| Protection class | IP66 | Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) |

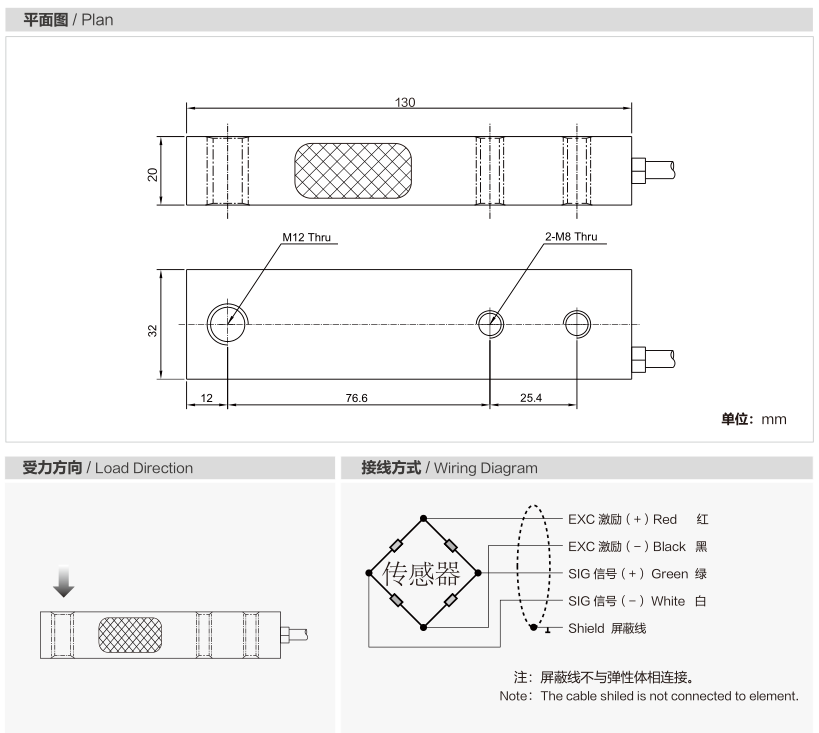

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK514?
A good match for batching and dosing scales, hopper and packaging scales, platform scales, batching machines, and concrete-batching plants.
Which indicator, transmitter or system works with the MK514?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
