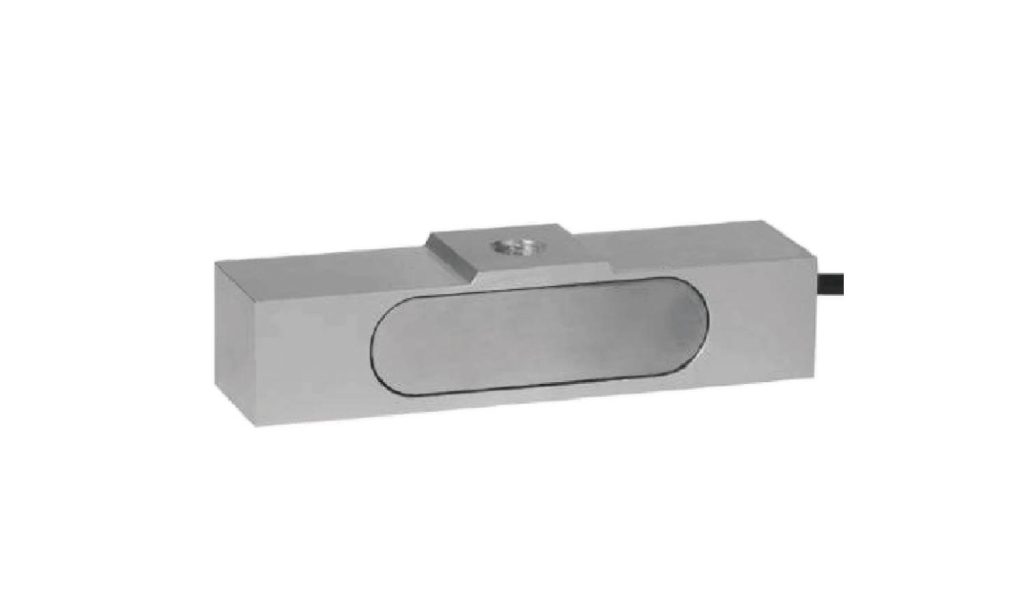

Overview
The MK513 is a cantilever beam load cell with a low mounting height, high overall accuracy and a self-stabilising structure noted for long-term stability. Its stainless-steel body with a nickel-plated surface stands up to busy plant environments, making it a dependable choice for continuous industrial weighing duty.
Key Features
- High accuracy (±0.03%F.S) for precise measurement
- Aluminum alloy elastic element for durability and corrosion resistance
- Sealed to IP67 for reliable operation in harsh environments
- Standard output 2.0 ± 0.5%mV/V, compatible with common indicators
- Compact design for straightforward integration
Applications
Widely used on batching scales, hopper scales, packaging scales, batching machines, platform scales and concrete mixing plants.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 8kN / 800kg | Output sensitivity | 2.0 ± 0.5%mV/V |
| Temperature compensated range | -10°C~40°C | Nonlinearity | ±0.03%F.S |
| Operating temperature range | -20°C~60°C | Hysteresis | ±0.03%F.S |
| Temperature Effect on Output | <0.03%F.S/10°C | Repeatability | ±0.03%F.S |
| Temperature Effect on Zero | <0.03%F.S/10°C | Creep (30 min) | ±0.05%F.S/30min |
| Input impedance | 415±5Ω | Zero balance | ±0.04mV/V |
| Output impedance | 350±3Ω | Recommended excitation voltage | 10V DC |
| Insulation resistance | ≥2000MΩ / 50VDC | Safe overload | 120%F.S |
| Material | Aluminum alloy | Limit overload | − |
| Protection class | IP67 | Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) |

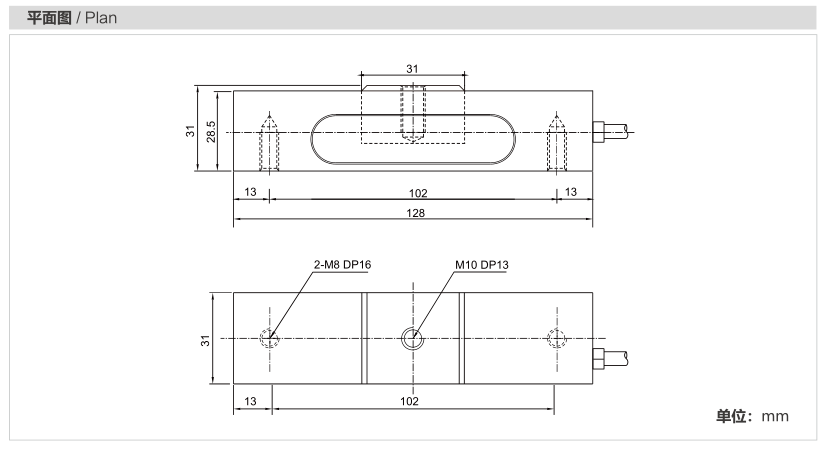

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK513?
Widely used on batching scales, hopper scales, packaging scales, batching machines, platform scales and concrete mixing plants.
Which indicator, transmitter or system works with the MK513?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
