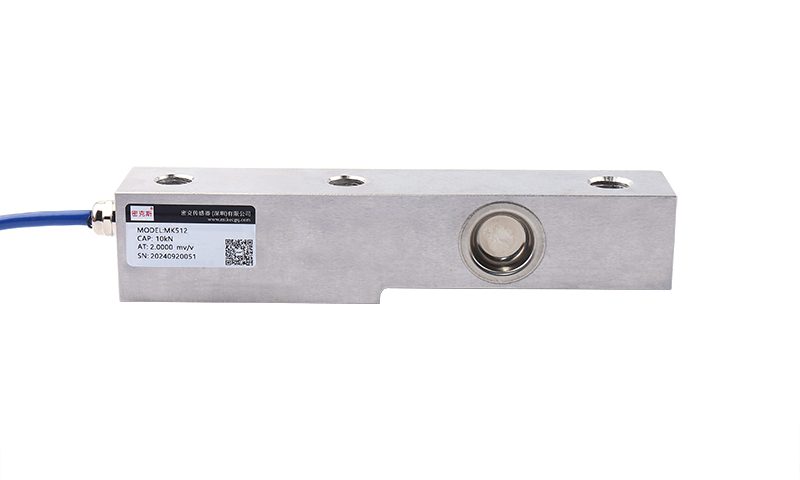

Overview
Low mounting height, high overall accuracy and a self-stabilising structure that holds its calibration over long service distinguish the MK512 cantilever-beam load cell. Its quality stainless-steel body with a nickel-plated surface shrugs off corrosion in busy plant areas while delivering repeatable weighing results.
Key Features
- High accuracy (≤0.03%F.S) for precise measurement
- Alloy steel / Stainless steel elastic element for durability and corrosion resistance
- Standard output 2.0 ± 0.02mV/V, compatible with common indicators
- Compact design for straightforward integration
Applications
Batching and dosing scales, hopper scales, packaging scales, batching machines, platform scales and concrete mixing plants.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 2.5kN / 250kg 3kN / 300kg 5kN / 500kg 10kN / 1t 20kN / 2t 30kN / 3t | Comprehensive accuracy | ≤0.03%F.S |
| Temperature compensated range | -10°C~40°C | Output sensitivity | 2.0 ± 0.02mV/V |
| Operating temperature range | -20°C~60°C | Nonlinearity | ±0.03%F.S |
| Temperature Effect on Output | <0.02%F.S/10°C | Hysteresis | ±0.03%F.S |
| Temperature Effect on Zero | <0.02%F.S/10°C | Repeatability | ±0.03%F.S |
| Input impedance | 400±10Ω | Creep (30 min) | ±0.03%F.S/30min |
| Output impedance | 350±4Ω | Zero balance | ≤±1%F.S |
| Insulation resistance | ≥5000MΩ | Recommended excitation voltage | 5~15V DC |
| Material (Optional) | Alloy steel / Stainless steel | Safe overload | 120%F.S |
| Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) | ||

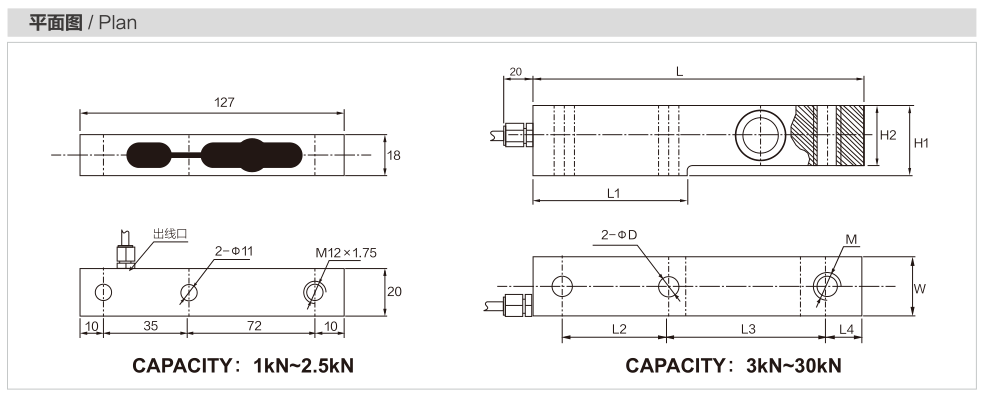

Dimension Drawing
Dimensions (mm)
| Model | Capacity (kN) | Capacity (t) | L | L1 | L2 | L3 | L4 | H1 | H2/B | ΦD | M | W |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MK512 | 1~2.5 | 0.1~0.25 | 127 | 55 | 35 | 72 | 10 | 18 | − | Φ11 | Φ12×1.75 | 20 |
| 3~20 | 0.3~2 | 203 | 95 | 64 | 98 | 74 | 43 | 36.6 | Φ13 | Φ16×2.0 | 36.6 | |
| 30 | 3 | 98 | Φ15 |
Frequently Asked Questions
What are the typical applications of the MK512?
Batching and dosing scales, hopper scales, packaging scales, batching machines, platform scales and concrete mixing plants.
Which indicator, transmitter or system works with the MK512?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
