Overview

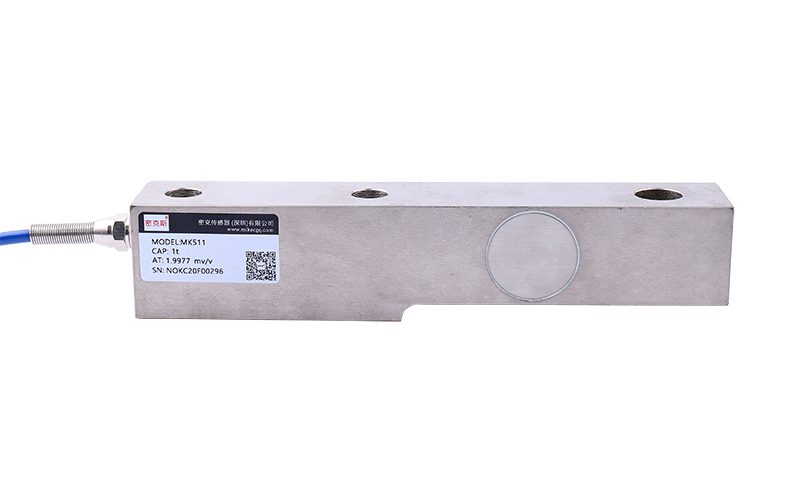

The MK511 cantilever beam load cell mounts low, measures with high combined accuracy and self-stabilises, retaining its performance over long periods. A stainless-steel body with a nickel-plated surface finish takes the corrosion and wear of continuous plant handling in its stride.
Key Features
- High accuracy (≤0.02%F.S) for precise measurement
- Alloy steel / Stainless steel elastic element for durability and corrosion resistance
- Standard output 2.0 ± 0.2%mV/V, compatible with common indicators
- Compact design for straightforward integration
Applications
Used on batching scales, weighing hoppers and packaging scales in food, chemical and building-materials processing.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 1kN / 100kg 2kN / 200kg 3kN / 300kg 5kN / 500kg 8kN / 800kg 10kN / 1t 20kN / 2t 30kN / 3t | Comprehensive accuracy | ≤0.02%F.S |
| Temperature compensated range | -10°C~40°C | Output sensitivity | 2.0 ± 0.2%mV/V |
| Operating temperature range | -20°C~60°C | Nonlinearity | ±0.02%F.S |
| Temperature Effect on Output | <0.02%F.S/10°C | Hysteresis | ±0.02%F.S |
| Temperature Effect on Zero | <0.02%F.S/10°C | Repeatability | ±0.02%F.S |
| Input impedance | 400±10Ω | Creep (30 min) | ±0.02%F.S/30min |
| Output impedance | 350±4Ω | Zero balance | ≤±1%F.S |
| Insulation resistance | ≥5000MΩ | Recommended excitation voltage | 10V DC |
| Material (Optional) | Alloy steel / Stainless steel | Safe overload | 150%F.S |
| Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) | ||

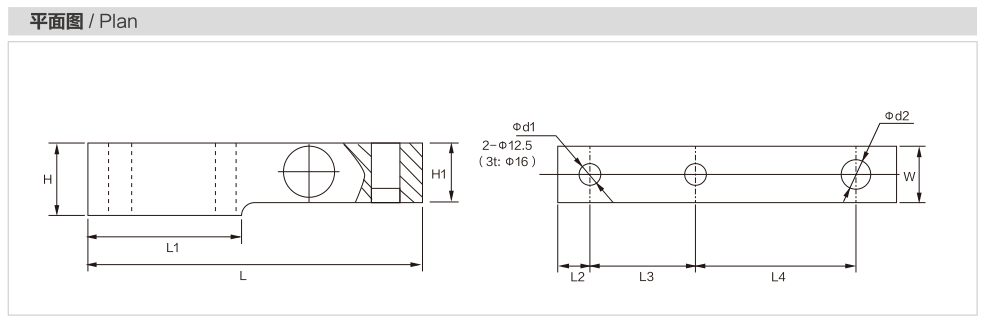

Dimension Drawing
Dimensions (mm)
| Model | Capacity (kN) | Capacity (t) | L | L1 | L2 | L3 | L4 | H | H1 | Φd1 | Φd2 | W |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MK511 | 1~2 | 0.1~0.2 | 138 | 64 | 10 | 40 | 78 | 32 | 29 | Φ12.5 | Φ12.5 | 29 |
| 3~8 | 0.3~0.8 | 12 | 74 | |||||||||
| 10~20 | 1~2 | 200 | 91 | 15.5 | 64 | 98 | 40 | 34 | Φ16 | 34 | ||
| 30 | 3 | Φ16 |
Frequently Asked Questions
What are the typical applications of the MK511?
Used on batching scales, weighing hoppers and packaging scales in food, chemical and building-materials processing.
Which indicator, transmitter or system works with the MK511?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
