Overview

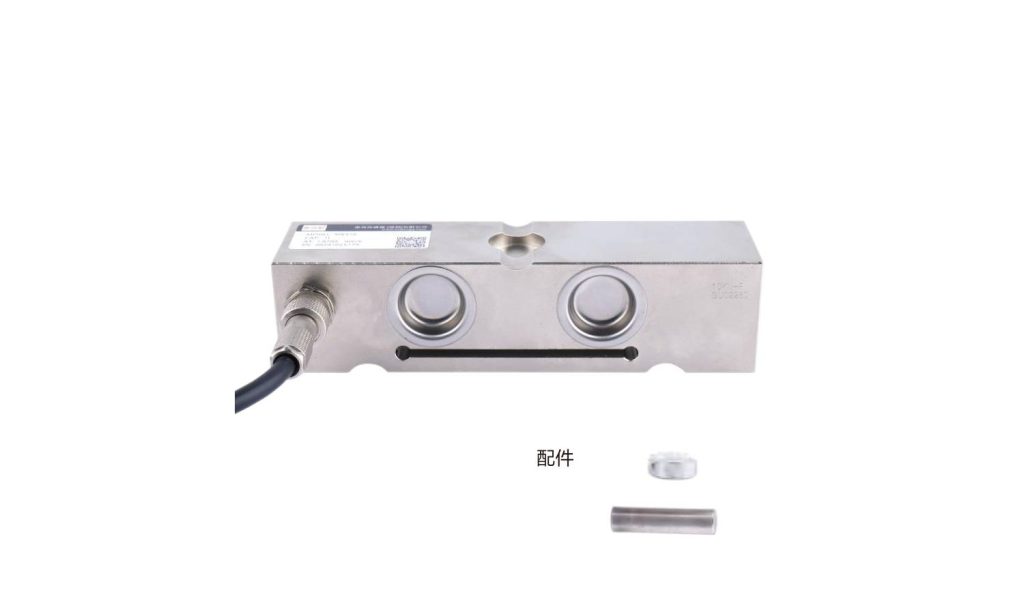

The MK510 is a compression-and-bending load cell engineered to measure the flexural and compressive strength of cement, concrete, masonry and other construction materials. Its rugged cantilever construction delivers a stable force output over a broad capacity range, and simple, well-compatible mounting makes it easy to integrate into test rigs. It suits construction-quality inspection, materials research and production quality control.
Key Features
- Measures both compressive and flexural (bending) loads
- Wide, adaptable capacity range
- Rugged body for a stable, repeatable force output
- Simple mounting with good instrument compatibility
- High accuracy (±0.03%F.S) for precise measurement
- Alloy steel (Ni-plated) elastic element for durability and corrosion resistance
Applications
Typically installed on concrete and mortar testing machines, compression and bending test frames, and laboratory quality-control benches for construction materials.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 10kN / 1t | Output sensitivity | 1.5~2.0mV/V |
| Temperature compensated range | -10°C~40°C | Nonlinearity | ±0.03%F.S |
| Operating temperature range | -20°C~60°C | Repeatability | ±0.03%F.S |
| Temperature Effect on Output | <0.02%F.S/10°C | Hysteresis | ±0.02%F.S |
| Temperature Effect on Zero | <0.02%F.S/10°C | Creep (30 min) | ±0.02%F.S/30min |
| Input impedance | 385±5Ω | Zero balance | ≤±1.0%F.S |
| Output impedance | 350±3Ω | Recommended excitation voltage | 10 12V DC |
| Insulation resistance | ≥5000MΩ | Safe overload | 150%F.S |
| Material | Alloy steel (Ni-plated) | Limit overload | 300%F.S |
| Protection class | IP66 | Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) |

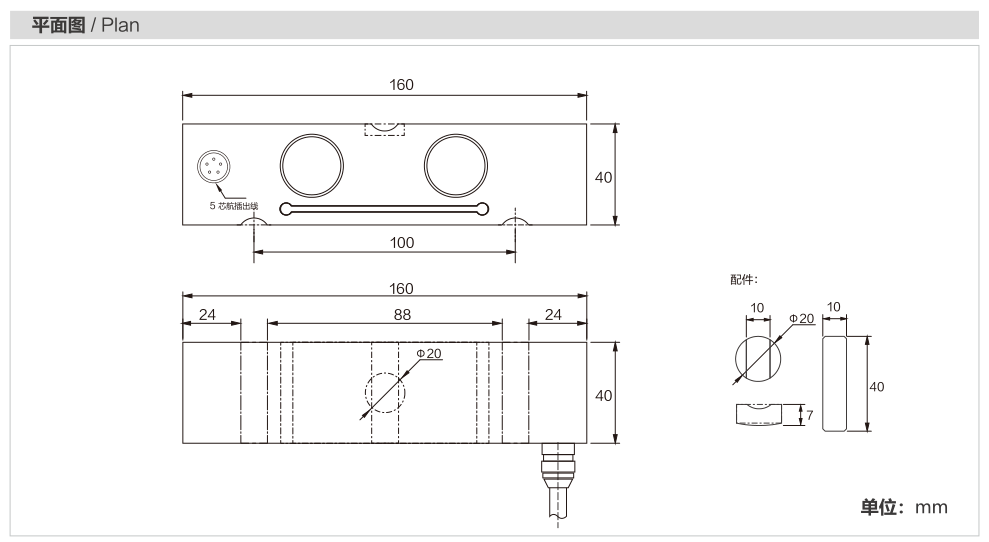

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK510?
Typically installed on concrete and mortar testing machines, compression and bending test frames, and laboratory quality-control benches for construction materials.
Which indicator, transmitter or system works with the MK510?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
