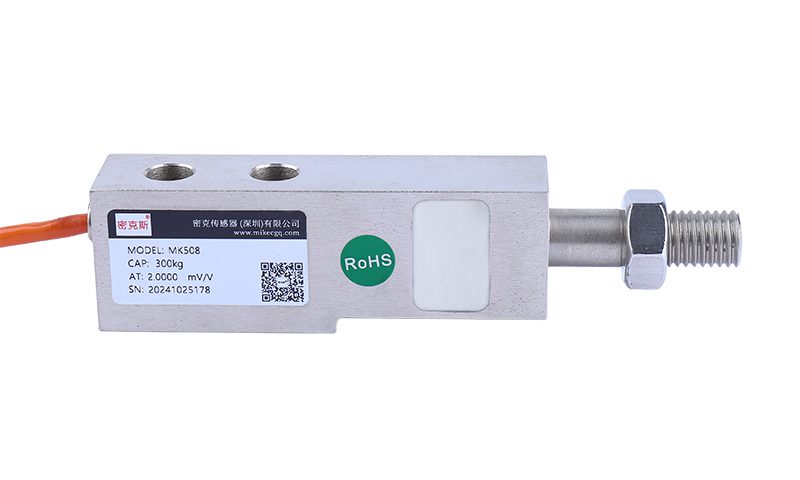

Overview
The MK508 is a stainless-steel cantilever beam load cell with a low mounting height, compact structure and good long-term stability, offering high explosion-proof performance. Its robust build suits precise force measurement in demanding environments.
Key Features
- Stainless steel, low mounting height
- High explosion-proof performance
- Good long-term stability
- High accuracy (0.05%F.S) for precise measurement
- Alloy steel elastic element for durability and corrosion resistance
- Sealed to – for reliable operation in harsh environments
Applications
Suited to automated force measurement, testing machines and belt scales for force and weight measurement.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 500N 1kN 2kN 3kN 5kN 10kN 20kN | Comprehensive accuracy | 0.05%F.S |
| Temperature compensated range | -10°C~40°C | Output sensitivity | 1.8 ± 0.05%mV/V |
| Operating temperature range | -20°C~60°C | Nonlinearity | ±0.03%F.S |
| Temperature Effect on Output | ±0.02%F.S/10°C | Hysteresis | ±0.03%F.S |
| Temperature Effect on Zero | ±0.05%F.S/10°C | Creep (30min) | ±0.02%F.S/30min |
| Input impedance | 400±10Ω | Zero balance | ≤±1%F.S |
| Output impedance | 352±3Ω | Recommended excitation voltage | 10V(DC) |
| Insulation resistance | ≥5000MΩ | Safe overload | 120%F.S |
| Material | Alloy steel | Limit overload | – |
| Protection class | – | Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) |

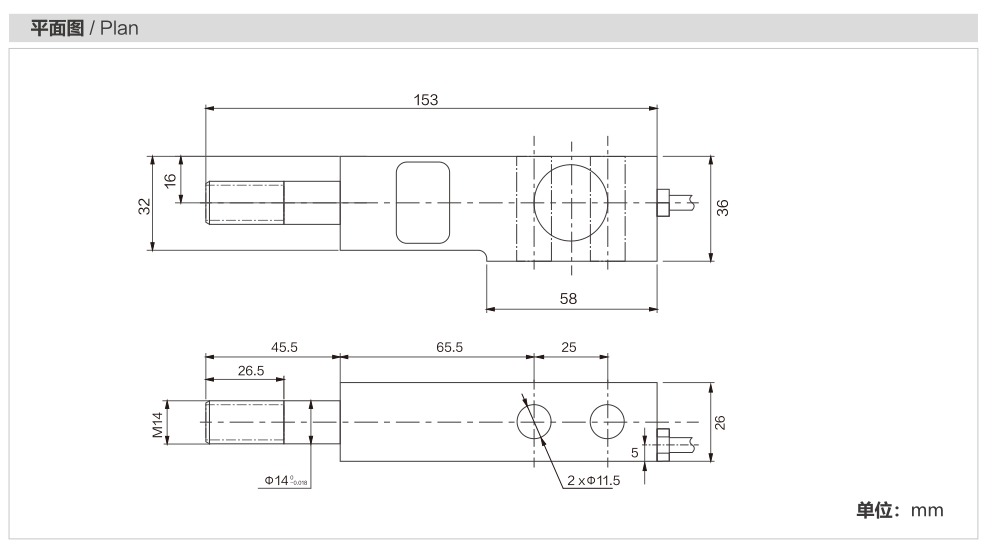

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK508?
Suited to automated force measurement, testing machines and belt scales for force and weight measurement.
Which indicator, transmitter or system works with the MK508?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
