Overview

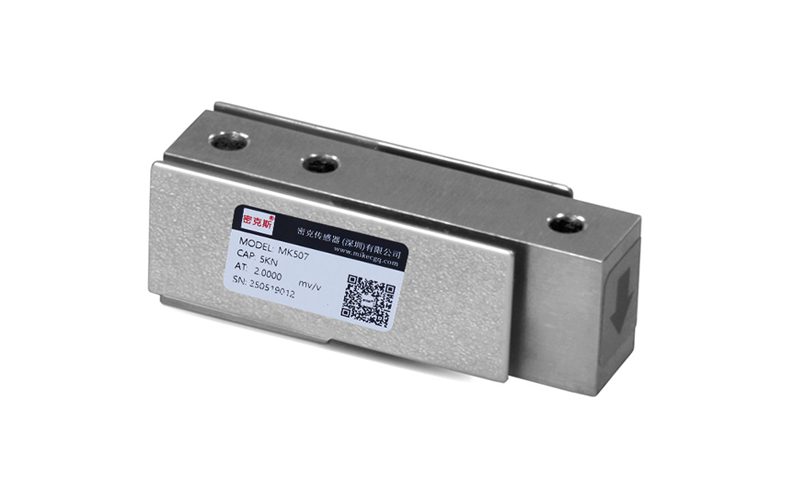

The MK507 is a cantilever-beam load cell with a low mounting height, high combined accuracy, and a self-stabilising structure for good long-term stability. Its nickel-plated alloy-steel body suits repeated batching and weighing service, and the compact height makes it easy to integrate into platform and floor scales.
Key Features
- High accuracy (±0.03%F.S) for precise measurement
- Alloy steel (Ni-plated) elastic element for durability and corrosion resistance
- Sealed to IP66 for reliable operation in harsh environments
- Standard output 3.0 ± 0.5%mV/V, compatible with common indicators
- Compact design for straightforward integration
Applications
Suited to floor and platform scales, building-material batching, and other batching weighing-control applications where low mounting height matters.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 50lb 100lb 150lb 200lb 250lb | Output sensitivity | 3.0 ± 0.5%mV/V |
| Temperature compensated range | -10°C~40°C | Nonlinearity | ±0.03%F.S |
| Operating temperature range | -20°C~60°C | Hysteresis | ±0.03%F.S |
| Temperature Effect on Output | <0.026%F.S/10°C | Non Repeatability | ±0.02%F.S |
| Temperature Effect on Zero | <0.03%F.S/10°C | Creep (20 min) | ±0.03%F.S/20min |
| Input impedance | 385±5Ω | Zero balance | ≤±1%F.S |
| Output impedance | 350±3Ω | Recommended excitation voltage | 10V(DC) |
| Insulation resistance | ≥5000MΩ | Safe overload | 120%F.S |
| Material | Alloy steel (Ni-plated) | Limit overload | – |
| Protection class | IP66 | Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) |

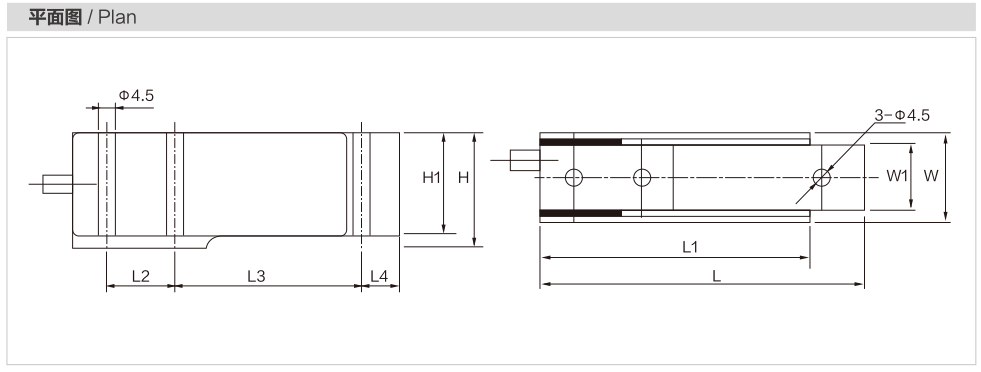

Dimension Drawing
Dimensions
| Model | Capacity (lb) | L | L1 | L2 | L3 | L4 | H | H1 | W | W1 |
|---|---|---|---|---|---|---|---|---|---|---|
| MK507 | 50,100,150 | 60.3 | 50 | 12.7 | 33.7 | 7.6 | 24.8 | 22.2 | 19.5 | 12.7 |
| 200,250 | 25.4 | 19.1 |
Frequently Asked Questions
What are the typical applications of the MK507?
Suited to floor and platform scales, building-material batching, and other batching weighing-control applications where low mounting height matters.
Which indicator, transmitter or system works with the MK507?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
