Overview

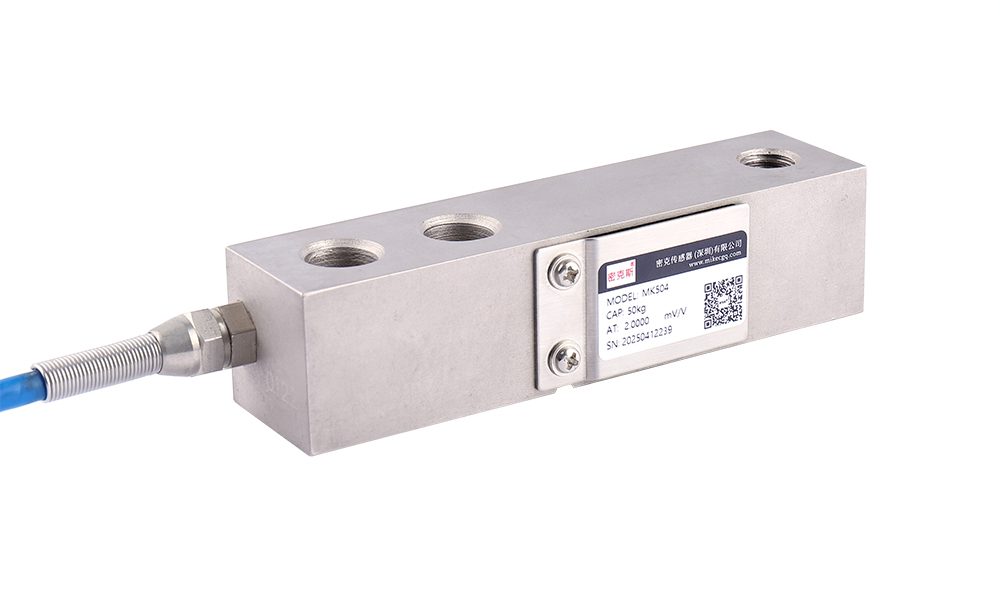

The MK504 is a compact cantilever-beam load cell made from quality alloy material, with a low mounting height and good long-term stability. Its construction offers strong explosion-proof performance, making it a suitable force-sensing element for automated measurement duty and test stands.
Key Features
- High accuracy (≤0.03%F.S) for precise measurement
- Alloy steel elastic element for durability and corrosion resistance
- Sealed to IP67 for reliable operation in harsh environments
- Standard output 2.0 ± 0.2%mV/V, compatible with common indicators
- Compact design for straightforward integration
Applications
Automated force measurement systems and materials testing machines and other fixed force-measurement installations.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 500N / 50kg 1kN / 100kg 2kN / 200kg 3kN / 300kg 5kN / 500kg 10kN / 1t 20kN / 2t 30kN / 3t | Comprehensive accuracy | ≤0.03%F.S |
| Temperature compensated range | -10°C~40°C | Output sensitivity | 2.0 ± 0.2%mV/V |
| Operating temperature range | -20°C~60°C | Nonlinearity | ±0.03%F.S |
| Temperature Effect on Output | <0.05%F.S/10°C | Hysteresis | ±0.03%F.S |
| Temperature Effect on Zero | <0.05%F.S/10°C | Repeatability | ±0.03%F.S |
| Input impedance | 380±20Ω | Creep (30min) | ±0.02%F.S/30min |
| Output impedance | 351±3Ω | Zero balance | ≤±0.1%F.S |
| Insulation resistance | ≥5000MΩ | Recommended excitation voltage | 10V(DC) |
| Material | Alloy steel | Safe overload | 120%F.S |
| Protection class | IP67 | Limit overload | – |
| Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) | ||

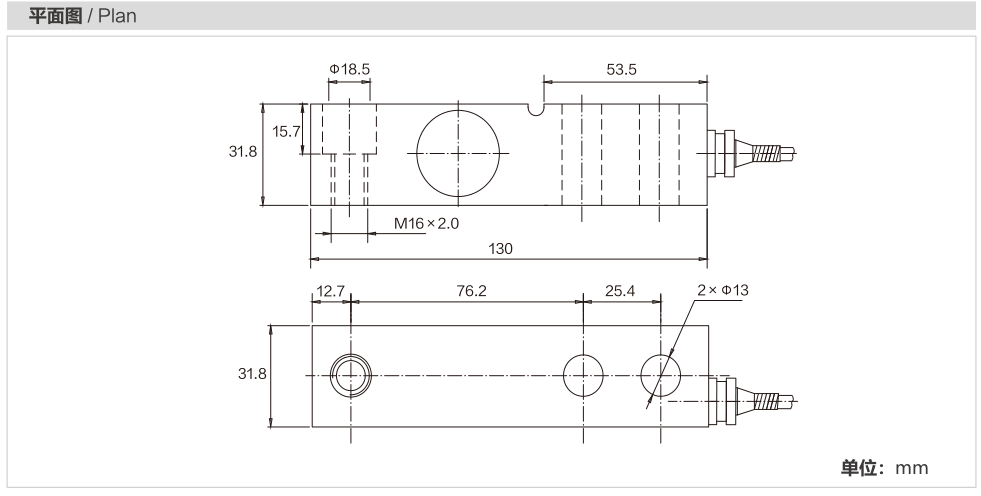

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK504?
Automated force measurement systems and materials testing machines and other fixed force-measurement installations.
Which indicator, transmitter or system works with the MK504?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
