Overview

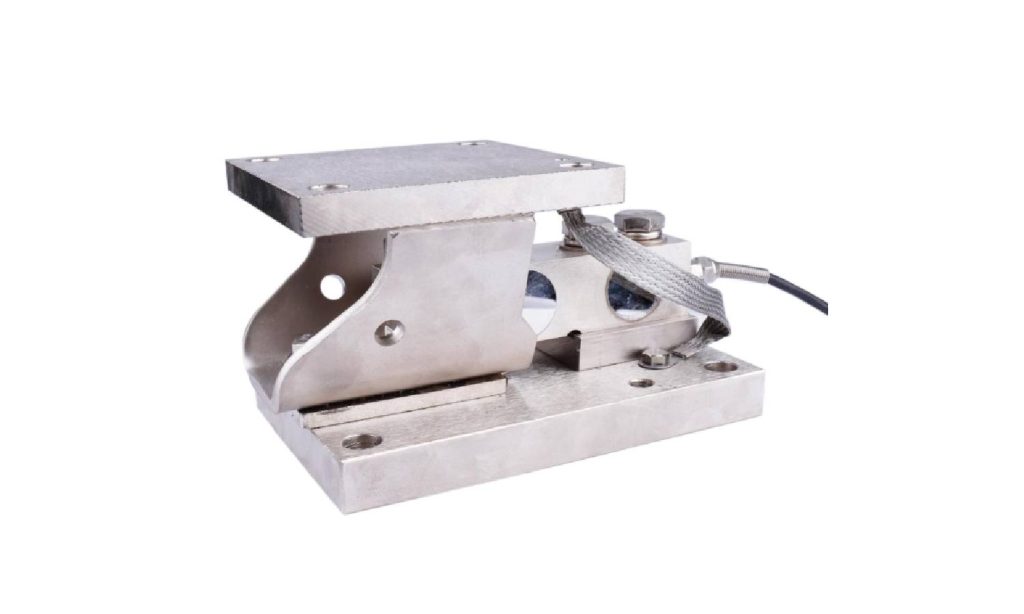

The MK503-M is a low-profile weighing module built on a parallel-beam load cell for compact single-point platform scales. Using four-corner balance, it cancels side and eccentric forces so only true vertical weight is measured, giving accurate, long-stable readings. Its ultra-low, lightweight body fits tight spaces and needs no extra force-transfer linkage, cutting installation time and cost.
Key Features
- Four-corner balance rejects eccentric and side loads
- Ultra-low, compact, lightweight profile
- Simple bolt-on installation, no extra linkage
- Cost-effective for mid-size platforms
- High combined accuracy and excellent long-term stability
- Compact design for straightforward integration
Applications
Well suited to small and mid-size platform scales, hospital beds, conveyor lines, and confined equipment interiors where mounting height and space are limited.
| Technical Parameters | |||
|---|---|---|---|
| Size 1 | 10~100kg | Size 2 | 220kg~1.1t |
| Size 3 | 4.4t | ||

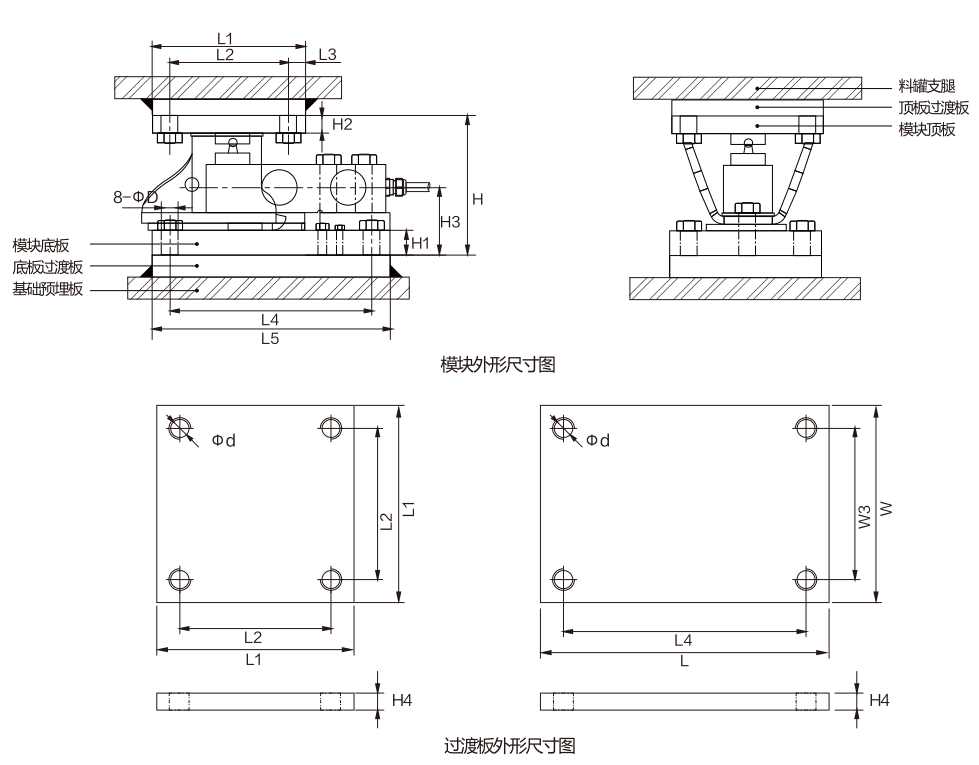

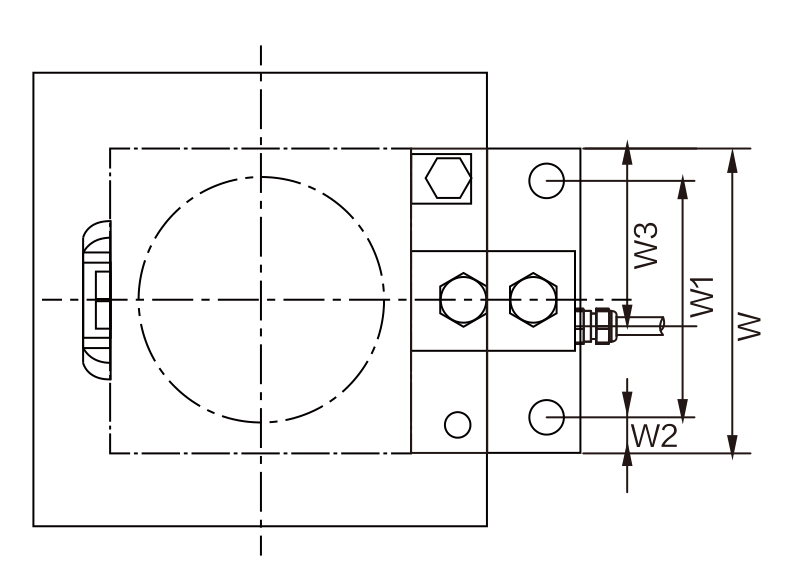

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK503-M?
Well suited to small and mid-size platform scales, hospital beds, conveyor lines, and confined equipment interiors where mounting height and space are limited.
Which indicator, transmitter or system works with the MK503-M?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
