Overview

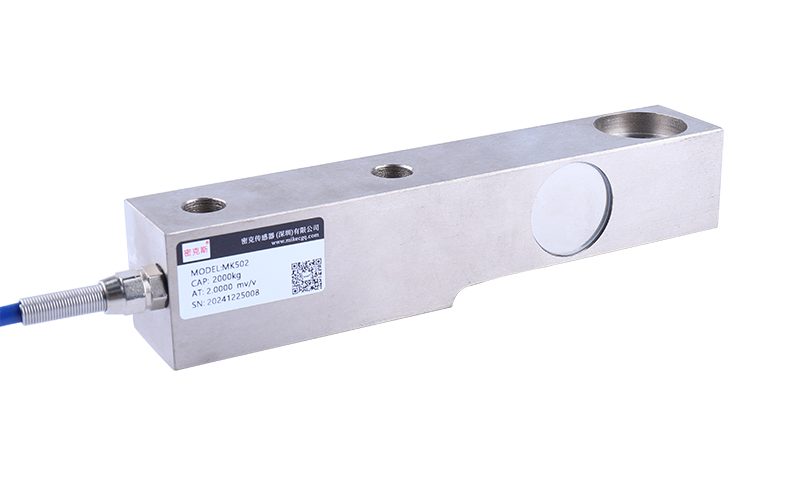

Engineered for heavy platform duty, the MK502 cantilever beam load cell combines a low mounting height with high combined accuracy and a self-stabilising structure for consistent long-term readings. Its nickel-plated alloy-steel body is sealed to IP67 against the weather and grime of yard service.
Key Features
- High accuracy (C2 C3) for precise measurement
- Alloy steel elastic element for durability and corrosion resistance
- Sealed to IP67 / IP68 for reliable operation in harsh environments
- Standard output 2.0 ± 0.2%mV/V (<30kN)3.0 ± 0.2%mV/V (≥30kN), compatible with common indicators
- Compact design for straightforward integration
Applications
Applied to floor scales, truck weighbridges, rail scales and general batching and dosing weight control.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 3kN / 300kg 5kN / 500kg 10kN / 1t 20kN / 2t 30kN / 3t 50kN / 5t 100kN / 10t 150kN / 15t 200kN / 20t | Comprehensive accuracy | C2 C3 |
| Temperature compensated range | -10°C~40°C | Output sensitivity | 2.0 ± 0.2%mV/V (<30kN)3.0 ± 0.2%mV/V (≥30kN) |
| Operating temperature range | -20°C~60°C | Nonlinearity | ±0.03%F.S |
| Temperature Effect on Output | <0.03%F.S/10°C | Hysteresis | ±0.03%F.S |
| Temperature Effect on Zero | <0.03%F.S/10°C | Repeatability | ±0.03%F.S |
| Input impedance | 380±20Ω | Creep (30min) | ±0.02%F.S/30min |
| Output impedance | 351±3Ω | Zero balance | ≤±0.1%F.S |
| Insulation resistance | ≥5000MΩ | Recommended excitation voltage | 10V(DC) |
| Material | Alloy steel | Safe overload | 120%F.S |
| Protection class | IP67 / IP68 | Limit overload | – |
| Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) | ||

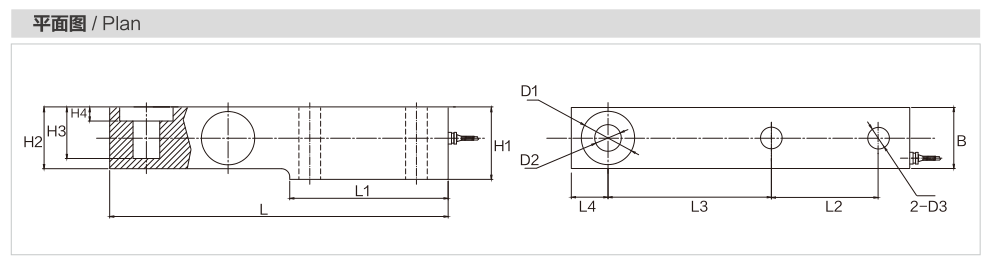

Dimension Drawing
Dimensions
| Model | Capacity (kN) | Capacity (t) | L | L1 | L2 | L3 | L4 | H1 | H2/B | H3 | H4 | D1 | D2 | D3 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MK502 | 3~20 | 0.3~2 | 203 | 95 | 64 | 98 | 22 | 43 | 36.6 | 30.5 | 8 | Φ32 | Φ16 | Φ13 |
| 30 | 3 | 18 | Φ15 | |||||||||||
| 50~80 | 5~8 | 235 | 110 | 66 | 124 | 52 | 48 | 30 | 2 | Φ38 | Φ22 | Φ21 | ||
| 100 | 10 | 279 | 133 | 82 | 140 | 32 | 67 | 60 | 20 | 8.5 | Φ48 | Φ32 | Φ28 | |
| 150~200 | 15~20 | 318 | 153 | 89 | 159 | 38 | 82.5 | 70 | 24 | 9.5 | Φ54 | Φ38 | Φ34 |
Frequently Asked Questions
What are the typical applications of the MK502?
Applied to floor scales, truck weighbridges, rail scales and general batching and dosing weight control.
Which indicator, transmitter or system works with the MK502?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
