Overview

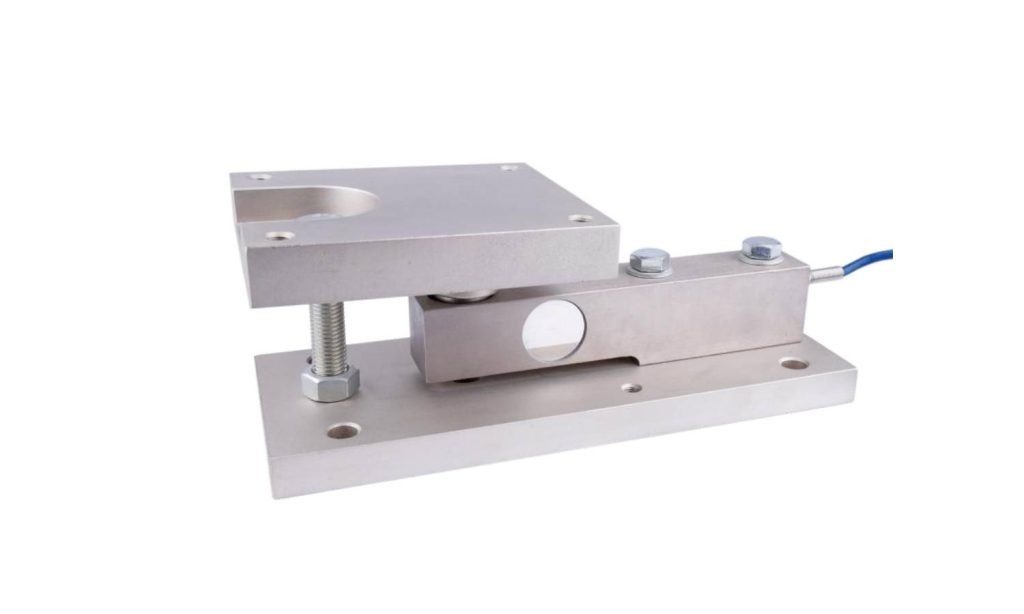

The MK502-M is a compact weighing module built around a parallel-beam load cell for single-point platform loading. Working on the four-corner balance principle, it cancels side-force interference and passes only the true vertical weight, giving accurate, long-stable readings. Its ultra-low-profile, lightweight body fits confined spaces, and direct screw or bracket mounting cuts installation time and cost.
Key Features
- Single-point parallel-beam construction
- Rejects off-centre and side loads
- Ultra-low profile for tight spaces
- Direct screw or bracket mounting
- High combined accuracy and excellent long-term stability
- Compact design for straightforward integration
Applications
Suited to small and medium platform weighing, hospital beds, conveyor lines and the tight interiors of compact equipment.
| Technical Parameters | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Capacity (kN) | Capacity (t) | A | B | C | D | E | F | G | H | H1 | H2 | K | L | L1 | L2 | d | d1 |
| MK502–M | 3~30 | 0.3~3 | 128 | 102 | 38 | 80 | 112 | 150 | 122 | 100 | 28 | 19 | 99 | 286 | 32 | 226 | M10 | 13 |
| MK502–M | 50~80 | 5~8 | 152 | 120 | 38 | 100 | 152 | 178 | 146 | 129.5 | 38 | 29.5 | 102 | 318 | 32 | 257 | M16 | 17 |
| MK502–M | 100 | 10 | 154 | 122 | 38 | 106 | 154 | 184 | 152 | 168 | 45 | 45 | 108 | 360 | 32 | 295 | M20 | 21 |
| MK502–M | 150~300 | 15~30 | 220 | 170 | 38 | 170 | 220 | 220 | 170 | 213 | 55 | 55 | 115 | 400 | 25 | 350 | M24 | 26 |

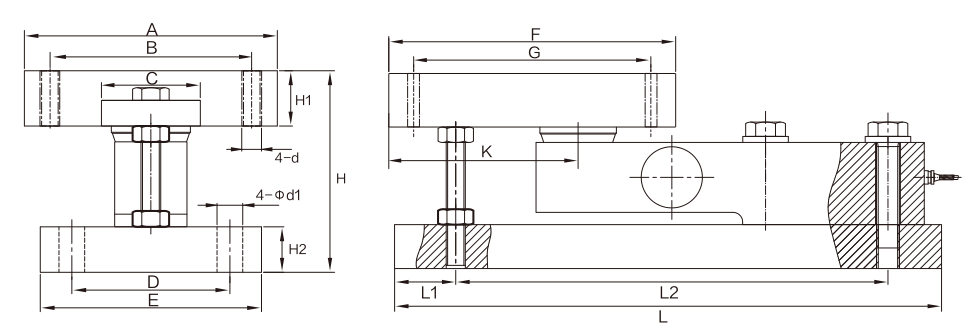

Dimension Drawing
Dimensions
| Model | Capacity (kN) | Capacity (t) | A | B | C | D | E | F | G | H | H1 | H2 | K | L | L1 | L2 | d | d1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MK502–M | 3~30 | 0.3~3 | 128 | 102 | 38 | 80 | 112 | 150 | 122 | 100 | 28 | 19 | 99 | 286 | 32 | 226 | M10 | 13 |
| 50~80 | 5~8 | 152 | 120 | 100 | 152 | 178 | 146 | 129.5 | 38 | 29.5 | 102 | 318 | 257 | M16 | 17 | |||
| 100 | 10 | 154 | 122 | 106 | 154 | 184 | 152 | 168 | 45 | 45 | 108 | 360 | 295 | M20 | 21 | |||
| 150~300 | 15~30 | 220 | 170 | 170 | 220 | 220 | 170 | 213 | 55 | 55 | 115 | 400 | 25 | 350 | M24 | 26 |
Frequently Asked Questions
What are the typical applications of the MK502-M?
Suited to small and medium platform weighing, hospital beds, conveyor lines and the tight interiors of compact equipment.
Which indicator, transmitter or system works with the MK502-M?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
