Overview
The MK501-M is a compact parallel-beam weighing module built for single-point loading on small and medium platforms. Its four-corner balance principle cancels side forces and eccentric loads so only the true vertical weight is measured, keeping readings precise and stable over time.
Key Features
- Four-corner balance rejects eccentric loads
- Ultra-low-profile, lightweight design
- Mounts directly via threads or brackets
- High combined accuracy and excellent long-term stability
- Compact design for straightforward integration
Applications
Its ultra-low-profile, lightweight body suits space-constrained fits such as hospital beds, conveyor lines and tight equipment housings.

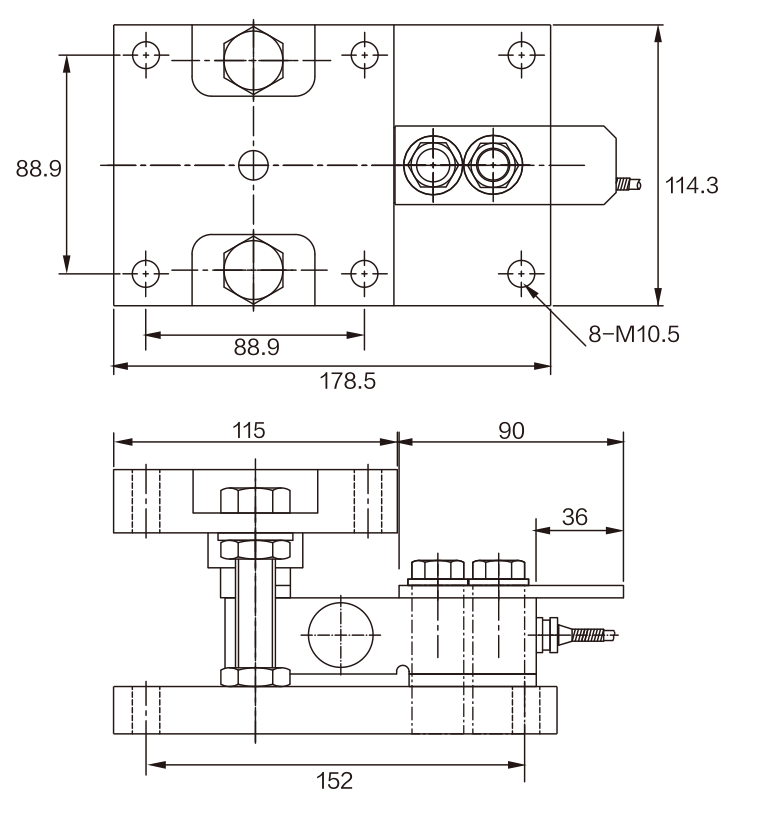

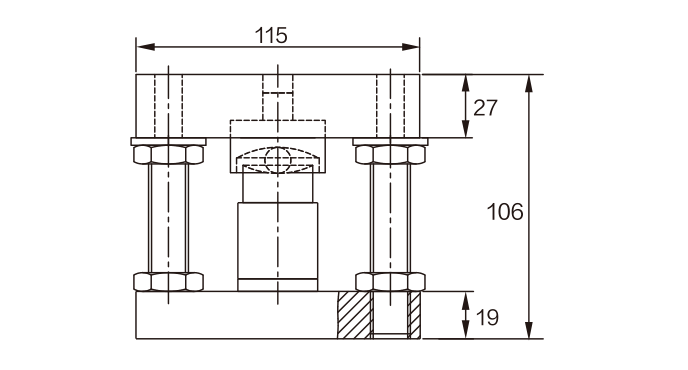

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK501-M?
Its ultra-low-profile, lightweight body suits space-constrained fits such as hospital beds, conveyor lines and tight equipment housings.
Which indicator, transmitter or system works with the MK501-M?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
